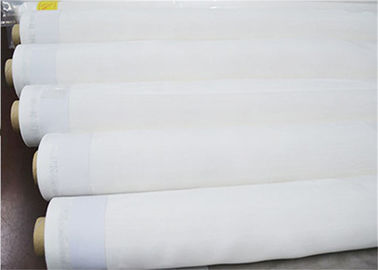

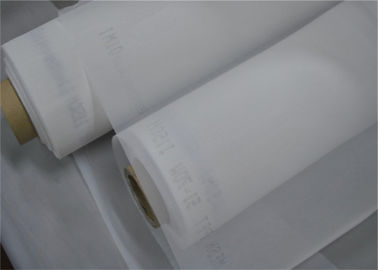

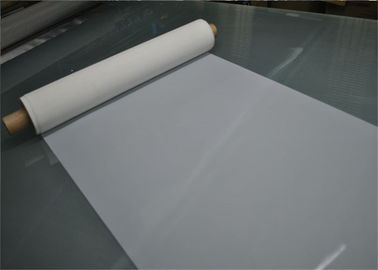

High Tensile 120 Mesh Polyester Printing Mesh With Acid Resistant , White Color

High Tensile 120 Mesh Polyester Printing Mesh With Acid Resistant , White Color
High Tensile 120 Mesh Polyester Printing Mesh With Acid Resistant , White Color High Tensile 120 Mesh Polyester Printing Mesh With Acid Resistant , White Color High Tensile 120 Mesh Polyester Printing Mesh With Acid Resistant , White Color

Large Image :  High Tensile 120 Mesh Polyester Printing Mesh With Acid Resistant , White Color

Product Details:
Place of Origin: Hebei China
Brand Name: PFM
Certification: FDA
Model Number: PFM-LIS
Payment & Shipping Terms:
Minimum Order Quantity: 1 meter
Price: Negotiable
Packaging Details: Plastic bag inside on one roll and plywood case outside,or cut into small pieces and plastic bag.
Delivery Time: 3-10days
Payment Terms: L/C, D/A, T/T, Western Union, ,Trade assurance,Paypal
Supply Ability: 3000meters per week
Detailed Product Description
Material: Polyester Thread Diameter: 30-150micron
Mesh: 40-550mesh/inch Length: According To Your Request
Color: White Sample: 1m Is Free
Highlight:

polyester mesh fabric

,

polyester mesh screen



High Tensile 120 Mesh Polyester Printing Mesh With Acid Resistant , White Color



1. Description



White mesh is the more economical of the two, and is primarily seen in lower mesh counts used for less-detailed designs. Higher count mesh is usually dyed yellow because the color yellow acts as a canceling factor for UV light and prevents refraction along the mesh strands when burning your screens. This allows for a more focused and precise exposure, keeping your screens as crisp as possible.



2. Application



Textile printing and dyeing,plate-making,electronic printing,ceramics,glass,flower paper printing,signs,advertising,Arts and crafts,food,medical and chemical filtration and other industries.



3. Specification

COUNT (INCH) COUNT (CM) DIAMETER (UM) OPEPING (UM) OPEN AREA(%) THICKNESS(UM) VOLUME (CM³/CM²) MAX TEN SION(N/CM)
15 6 400 1270 64 720 460 30-60
18 7 350 1078 64 640 410 30-60
20 8 300 950 58 550 319 30-60
25 10 250 750 56 620 347 30-60
30 12 250 583 49 450 220 30-60
30 12 150 683 67 300 201 30-60
40 16 200 425 46 400 184 30-60
50 20 80 420 71 120 85 35-37
50 20 150 350 49 260 127 30-60
60 24 100 316 58 136 78 35-40
60 24 120 297 50 240 120 35-60
73 29 120 225 43 240 103 35-60
80 32 64 248 63 95 59 30-34
80 32 100 212 46 200 92 35-40
85 34 100 195 44 221 97 35-40
90 36 100 178 41 216 88 35-40
100 39 55 200 61 88 53 25-30
100 39 80 176 47 150 70 35-37
110 43 80 153 43 130 56 35-37
120 47 55 158 55 88 48 25-30
120 47 71 142 44 135 59 30-34
135 53 55 133 50 86 43 25-30
135 53 64 125 44 100 44 26-31
150 59 64 105 38 100 38 26-31
160 64 55 101 42 98 41 25-30
160 64 64 92 35 120 42 30-34
180 72 48 91 43 78 66 27-29
180 72 55 84 37 100 37 25-30
200 80 48 77 38 74 28 27-29
195 77 55 75 33 105 34 25-30
230 90 48 63 33 85 28 27-29
250 100 40 60 36 70 25 20-24
280 110 40 51 31 85 26 20-24
305 120 40 43 27 68 18 20-24
355 140 34 37 27 58 15 22-24
380 150 31 36 29 46 13 21-23
420 165 31 30 24 46 11 21-23
460 180 27 28 26 56 14 20-22



4. Features of polyester printing mesh

  • Solvent resistance
  • High temperature resistance
  • Water resistance
  • Chemical resistance
  • Acid resistance
  • By the external pressure is large, its physical properties and stability, small stretch
  • Polyester wire mesh in addition to the advantages of nylon screen printing, but also for printing the size of the requirements of high precision printed circuit boards and so on.

.

High Tensile 120 Mesh Polyester Printing Mesh With Acid Resistant , White Color 0

High Tensile 120 Mesh Polyester Printing Mesh With Acid Resistant , White Color 1
