| Material: | 100%Polyester | Weave Type: | Plain Weave |
|---|---|---|---|
| Color: | White | Name: | Polyester Mesh Belt |
| Delivery: | Within 10days | Length: | According Do Your Request |
| High Light: | mesh material fabric,plain weave mesh |
||

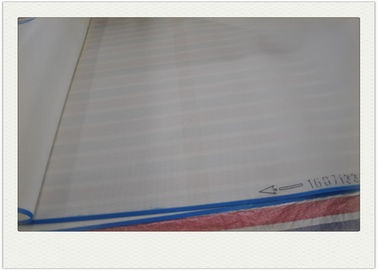

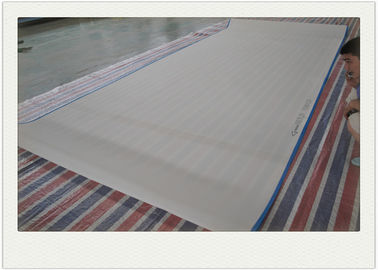

High Tension Plain Weave 100% Polyester Mesh Belt Used For Conveyor Belt
Description:
Polyester linear screen cloths are mainly the 2-shed and 3-shed polyester plain woven fabric,which widely used in special lines,such as mining sieving,mineralseparation,goldbenefication,paper pulps making,sulplate pulp packing and cardboard pulp,fiberboard plants as well as tailings disposal,colliery,food and medicine as filter belt.
Application:
Polyester plain weave mesh belt Series Suitable for drying quantitative larger wrapping paper, paper, paperboard and pulp board. Widely used in papermaking, coal, food, medicine, printing and dyeing and rubber products industry, can also be used as conveyor belt and composite machine supporting belt.
Specification:
| Weaving Type | Model | Thread Diameter | Density(No.s/cm) | Strength ((N/cm) | Air Permeability (m3/m2h) | ||
| (mm) | |||||||
| Warp | Weft | Warp | Weft | ||||
| 2-shed plain weaving | 05802 | 0.75 | 0.8 | 4.7-5 | 4.8-5 | 940 | 20000 |
| 05102 | 1 | 1 | 4.7-5.2 | 4.3-5 | 1600 | 15000 | |
| 06702 | 0.7 | 0.7 | 8 | 7 | 1600 | 11000 | |
| 07102 | 0.7 | 1 | 6.6-7 | 4.3-4.6 | 1100 | 15000 | |
| 08552 | 0.55 | 0.55 | 7.5-8 | 8.5-9 | 850 | 850-6500 | |
| 09452 | 0.45 | 0.45 | 10 | 8.6 | 1600 | 16000 | |
| 09502 | 0.5 | 0.5 | 8.5-9 | 10-10.5 | 750 | 10000 | |
| 12502 | 0.5 | 0.5 | 13.5 | 8.5 | 1800 | 6500 | |
| 3shed plain weaving | 8603 | 0.5 | 0.6 | 10 | 9 | 1600 | 14000 |
| 8903 | 0.9 | 0.9 | 7.8-8 | 5-5.5 | 2100 | 7500-8500 | |
| 7803 | 0.7 | 0.8 | 8 | 8 | 1600 | 10000 | |
| 20353 | 0.3 | 0.35 | 22 | 14.5 | 1200 | 13000 | |
aperture:
400micron,500micron,600micron,700micron,800micron,1000micron,1500micron,1800micron,2000micron,
2500micron,3000micron
Features of polyester mesh belt.

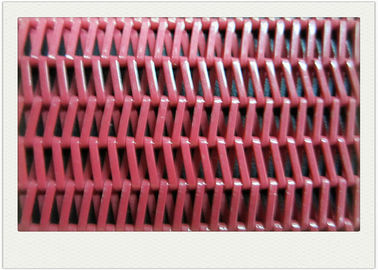

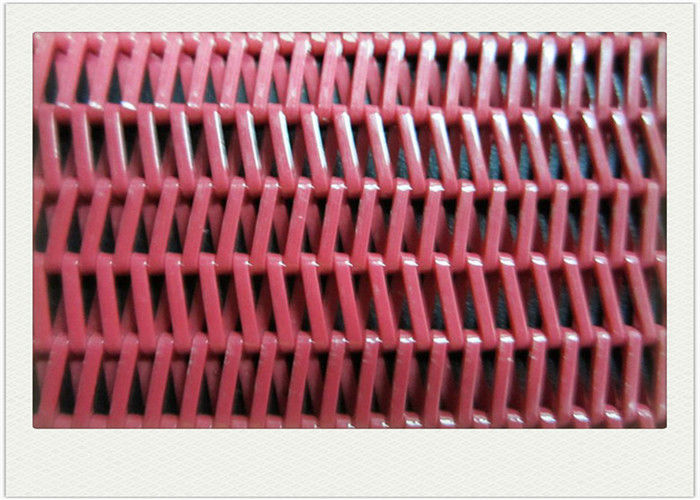

Polyester spiral dry mesh with a breathable, flat mesh, can be arbitrarily removed, the strength is good, long service life advantages. Spiral dry network also has special materials high temperature, high wear-resistant, anti-aging properties
Size of polyester plain weave mesh belt
Standard widths in stock:1.0m-6.0m;length is available as the request
Edge of polyester plain weave mesh belt
 |
edges sealed by glue |
|
edges sealed by mesh |
|
edges sealed by heat resistant fabric |
Shipping of polyester plain weave mesh belt
