| Brand Name: | PFM |
| Model Number: | PFM-Lis |
| MOQ: | 1 square meter |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, ,Paypal,Trade assurance |
| Supply Ability: | 2000 square meter per quarter |

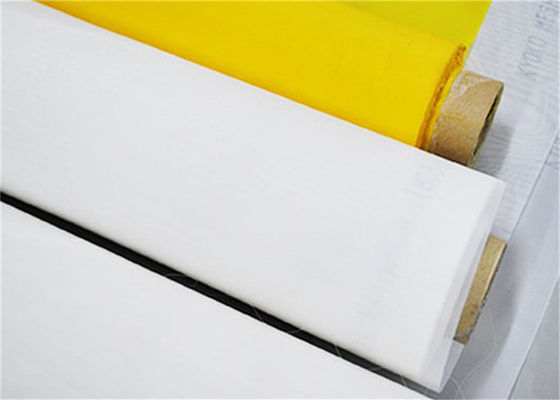

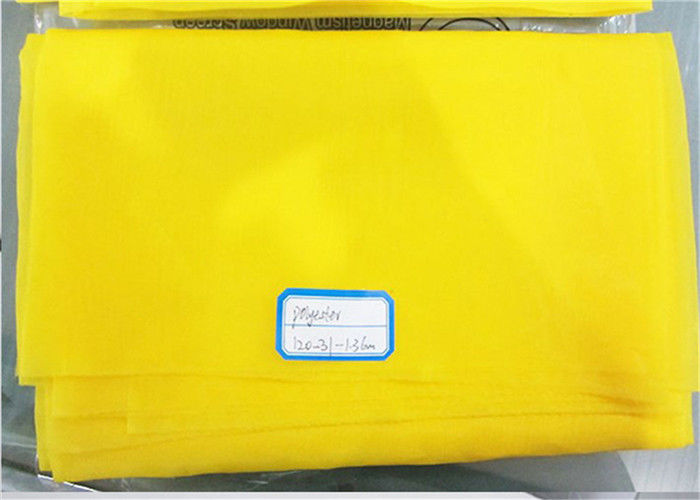

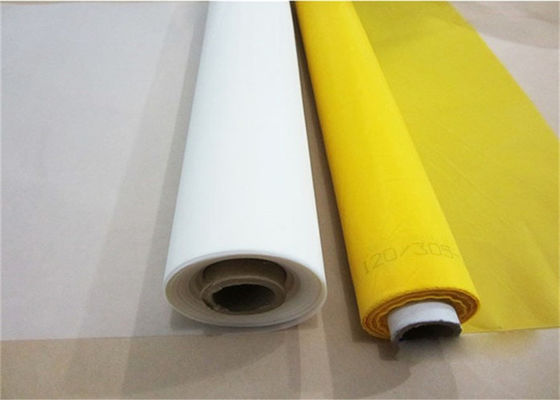

Plain Weave High Accuracy Polyester Mesh Screen Used For Filtering , Custom Length
Description:
Mesh Count:6T-165T
Color:White,yellow,black
Hole size:Square hole.
Thread Diameter:30-450micron
Mesh Opening:23micron-1500micron
Width:105cm,115m,127cm,136cm,145cm,157cm,165cm,188cm,220cm,360cm or as your need.
Mesh Roll:30meters or 50meters in general,or according to the customers's need.
Application:
100%polyester filter mesh for food is widely used in areas as filtration and separation industry. Such as food industry for milling filtering and flour milling, paper making factory and other grains milling. Like glucose production, milk powder, soybean milk,liquid & dust filtration (filters, filter bags, dust filter bags,etc.
Specification:
| COUNT (INCH) | COUNT (CM) | DIAMETER (UM) | OPEPING (UM) | OPEN AREA(%) | THICKNESS(UM) | VOLUME (CM³/CM²) |
| 15 | 6 | 400 | 1270 | 64 | 720 | 460 |
| 18 | 7 | 350 | 1078 | 64 | 640 | 410 |
| 20 | 8 | 300 | 950 | 58 | 550 | 319 |
| 25 | 10 | 250 | 750 | 56 | 620 | 347 |
| 30 | 12 | 250 | 583 | 49 | 450 | 220 |
| 30 | 12 | 150 | 683 | 67 | 300 | 201 |
| 40 | 16 | 200 | 425 | 46 | 400 | 184 |
| 50 | 20 | 80 | 420 | 71 | 120 | 85 |
| 50 | 20 | 150 | 350 | 49 | 260 | 127 |
| 60 | 24 | 100 | 316 | 58 | 136 | 78 |
| 60 | 24 | 120 | 297 | 50 | 240 | 120 |
| 73 | 29 | 120 | 225 | 43 | 240 | 103 |
| 80 | 32 | 64 | 248 | 63 | 95 | 59 |
| 80 | 32 | 100 | 212 | 46 | 200 | 92 |
| 85 | 34 | 100 | 195 | 44 | 221 | 97 |
| 90 | 36 | 100 | 178 | 41 | 216 | 88 |
| 100 | 39 | 55 | 200 | 61 | 88 | 53 |
| 100 | 39 | 80 | 176 | 47 | 150 | 70 |
| 110 | 43 | 80 | 153 | 43 | 130 | 56 |
| 120 | 47 | 55 | 158 | 55 | 88 | 48 |
| 120 | 47 | 71 | 142 | 44 | 135 | 59 |
| 135 | 53 | 55 | 133 | 50 | 86 | 43 |
| 135 | 53 | 64 | 125 | 44 | 100 | 44 |
| 150 | 59 | 64 | 105 | 38 | 100 | 38 |
| 160 | 64 | 55 | 101 | 42 | 98 | 41 |
| 160 | 64 | 64 | 92 | 35 | 120 | 42 |
| 180 | 72 | 48 | 91 | 43 | 78 | 66 |
| 180 | 72 | 55 | 84 | 37 | 100 | 37 |
| 200 | 80 | 48 | 77 | 38 | 74 | 28 |
| 195 | 77 | 55 | 75 | 33 | 105 | 34 |
| 230 | 90 | 48 | 63 | 33 | 85 | 28 |
| 250 | 100 | 40 | 60 | 36 | 70 | 25 |
| 280 | 110 | 40 | 51 | 31 | 85 | 26 |
| 305 | 120 | 40 | 43 | 27 | 68 | 18 |
| 355 | 140 | 34 | 37 | 27 | 58 | 15 |
| 380 | 150 | 31 | 36 | 29 | 46 | 13 |
| 420 | 165 | 31 | 30 | 24 | 46 | 11 |
| 460 | 180 | 27 | 28 | 26 | 56 | 14 |
Features:
