Product Details
Place of Origin: Hebei,China
Brand Name: PFM
Certification: FDA
Model Number: PFM-LIS
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Plastic bag inside on one roll and plywood case outside.Or cut into small pieces and plastic bag.
Delivery Time: 5-10days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, ,Trade assurance,Paypal
Supply Ability: 3000meter per week
Color: |
White |
Thread Diameter: |
30-150micron |
Mesh: |
13-500mesh/inch |
Width: |
1.15-3.6m |
Sample: |
Free |
Weave: |
1:1 |
Color: |
White |
Thread Diameter: |
30-150micron |
Mesh: |
13-500mesh/inch |
Width: |
1.15-3.6m |
Sample: |
Free |
Weave: |
1:1 |

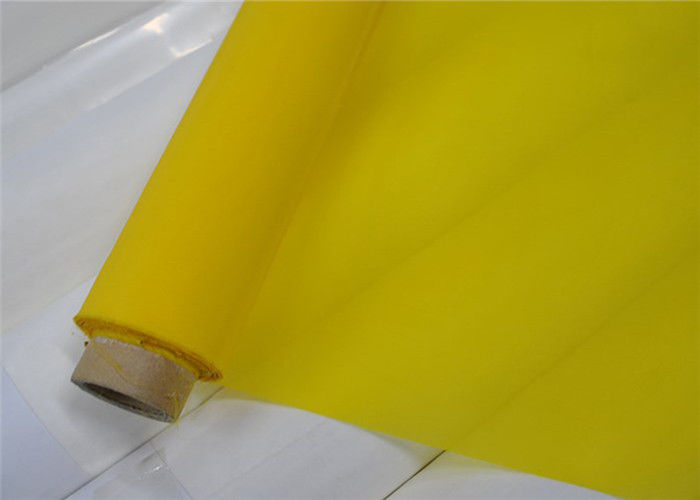

300 Mesh Monofilament Polyester Screen Printing Screen Mesh Roll For Flower Paper
1 Description
Polyester printing network using high-precision high-quality monofilament polyester network, with high precision, stable tension and other characteristics, and excellent dimensional stability, making the printing will not deviate, and to ensure a high strength and low elongation, Can greatly extend the service life of the screen.
The special width is available as customer's requirement,and the width is up to 3.6meter.
2. Application
Flower paper printing is mainly used in textile printing, ultra-thin glass printing engraving automotive glass printing electronic circuit board printing label tag printing touch screen digital printing large advertising printing. Can also do filter material powder dust and so on. Widely used in screen printing should be based on the requirements of printed matter to select mesh mesh.
3. Specificaitons
| COUNT (INCH) | COUNT (CM) | DIAMETER (UM) | OPEPING (UM) | OPEN AREA(%) | THICKNESS(UM) | VOLUME (CM³/CM²) | MAX TEN SION(N/CM) |
| 15 | 6 | 400 | 1270 | 64 | 720 | 460 | 30-60 |
| 18 | 7 | 350 | 1078 | 64 | 640 | 410 | 30-60 |
| 20 | 8 | 300 | 950 | 58 | 550 | 319 | 30-60 |
| 25 | 10 | 250 | 750 | 56 | 620 | 347 | 30-60 |
| 30 | 12 | 250 | 583 | 49 | 450 | 220 | 30-60 |
| 30 | 12 | 150 | 683 | 67 | 300 | 201 | 30-60 |
| 40 | 16 | 200 | 425 | 46 | 400 | 184 | 30-60 |
| 50 | 20 | 80 | 420 | 71 | 120 | 85 | 35-37 |
| 50 | 20 | 150 | 350 | 49 | 260 | 127 | 30-60 |
| 60 | 24 | 100 | 316 | 58 | 136 | 78 | 35-40 |
| 60 | 24 | 120 | 297 | 50 | 240 | 120 | 35-60 |
| 73 | 29 | 120 | 225 | 43 | 240 | 103 | 35-60 |
| 80 | 32 | 64 | 248 | 63 | 95 | 59 | 30-34 |
| 80 | 32 | 100 | 212 | 46 | 200 | 92 | 35-40 |
| 85 | 34 | 100 | 195 | 44 | 221 | 97 | 35-40 |
| 90 | 36 | 100 | 178 | 41 | 216 | 88 | 35-40 |
| 100 | 39 | 55 | 200 | 61 | 88 | 53 | 25-30 |
| 100 | 39 | 80 | 176 | 47 | 150 | 70 | 35-37 |
| 110 | 43 | 80 | 153 | 43 | 130 | 56 | 35-37 |
| 120 | 47 | 55 | 158 | 55 | 88 | 48 | 25-30 |
| 120 | 47 | 71 | 142 | 44 | 135 | 59 | 30-34 |
| 135 | 53 | 55 | 133 | 50 | 86 | 43 | 25-30 |
| 135 | 53 | 64 | 125 | 44 | 100 | 44 | 26-31 |
| 150 | 59 | 64 | 105 | 38 | 100 | 38 | 26-31 |
| 160 | 64 | 55 | 101 | 42 | 98 | 41 | 25-30 |
| 160 | 64 | 64 | 92 | 35 | 120 | 42 | 30-34 |
| 180 | 72 | 48 | 91 | 43 | 78 | 66 | 27-29 |
| 180 | 72 | 55 | 84 | 37 | 100 | 37 | 25-30 |
| 200 | 80 | 48 | 77 | 38 | 74 | 28 | 27-29 |
| 195 | 77 | 55 | 75 | 33 | 105 | 34 | 25-30 |
| 230 | 90 | 48 | 63 | 33 | 85 | 28 | 27-29 |
| 250 | 100 | 40 | 60 | 36 | 70 | 25 | 20-24 |
| 280 | 110 | 40 | 51 | 31 | 85 | 26 | 20-24 |
| 305 | 120 | 40 | 43 | 27 | 68 | 18 | 20-24 |
| 355 | 140 | 34 | 37 | 27 | 58 | 15 | 22-24 |
| 380 | 150 | 31 | 36 | 29 | 46 | 13 | 21-23 |
| 420 | 165 | 31 | 30 | 24 | 46 | 11 | 21-23 |
| 460 | 180 | 27 | 28 | 26 | 56 | 14 | 20-22 |
Screen printing and other printing methods compared to the main differences are the following:
Remark:Polyester screen printing mesh is not suitable for alkali.
![]()
![]()
![]()
