Weave / Welded Wire Mesh Filter Disc With Sintered Wire Mesh For Oil Filter

Weave / Welded Wire Mesh Filter Disc With Sintered Wire Mesh For Oil Filter

Brand Name: PFM
Model Number: PFM-lis
MOQ: 50 pieces
Price: Negotiable
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 5000 piece per week
Detail Information
Place of Origin:
Hebei,China
Certification:
SGS
Material:
Stainless Steel Wire
Shape Of Mesh Filter:
Round
Sample:
Free
Size:
Request
Technical:
Weave,Welded
Application:
Oil Filter
Packaging Details:
plywood case
Highlight:

mesh screen filter

,

metal gauze filter

Product Description

Stainless Steel Wire Mesh Filter Disc With Sintered Wire Mesh Used For Oil Filter





Description of stainless steel wire mesh filter disc



Metal wire mesh also known as oil filter, disc filter, chemical fiber assembly
It is made of different mesh metal mesh and support network and through the edge of the process and made



Features of Stainless steel mesh filters:

1.The filter effect is very stable: in the production process selected high-quality raw materials, so that it is not easy to use in the process of deformation;
2, the strength of large: high-quality materials with high pressure, can withstand greater work intensity;
3, simple cleaning: single layer of filter material with a simple cleaning characteristics, especially for backwashing;
4, with high temperature performance: the highest can withstand about 480 ℃ high temperature;
5, with corrosion resistance: stainless steel raw materials itself has a high corrosion resistance and wear resistance;
6, easy to process: high-quality materials, whether it is cutting, bending, stretching, welding and other procedures can be completed very well.





Specifications of mesh filters:

material type stainless steel 201,304 316 316L,2080,601,carbon steel,iron,copper,brass
shape square,round,rectangular or alienated
processing way welded,dot welded,woven,folded,punching,sintered
structure single layer,double layer or multi-layer
edge treatment edge surounded with stainless steel sheet,bigger stainless steel wire, mesh folded then spot welded
raw material stainless steel plate,woven wire mesh,sintered wire mesh,expanded wire mesh,perforated wire mesh,wedge wire screen,black wire mesh,galvanized wire mesh and so on
size desinged according to customer`s requirement
filtering rate 2-400micron

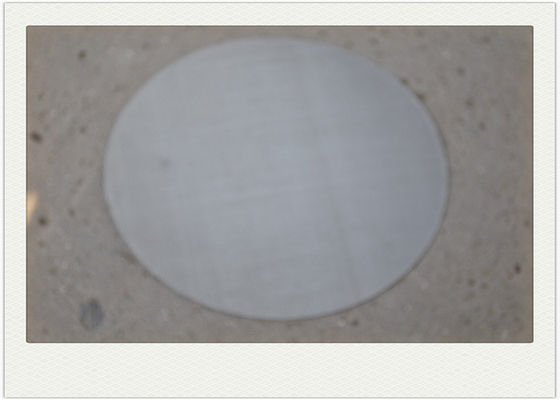

Weave / Welded Wire Mesh Filter Disc With Sintered Wire Mesh For Oil Filter 0

product name:sintered wire mesh disc filter

Average filtration accuracy: 5-80um;
2. Has a large flow, high filtration efficiency;
3. The main specifications are: 40 / 20,65 / 30,90 / 30,90 / 45,125 / 60,155 / 70,175 / 90 and other specifications;
4. Filter: phosphor copper mesh, stainless steel plain network, twill and stainless steel seats type network

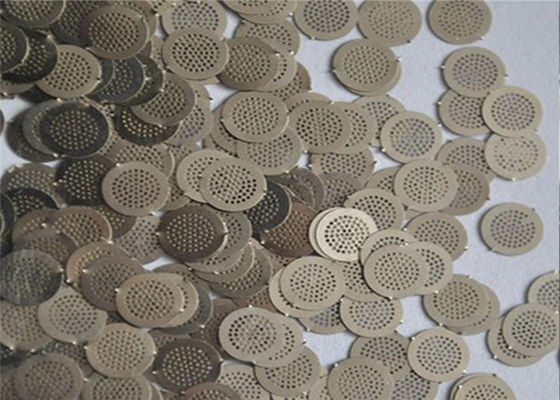

Weave / Welded Wire Mesh Filter Disc With Sintered Wire Mesh For Oil Filter 1

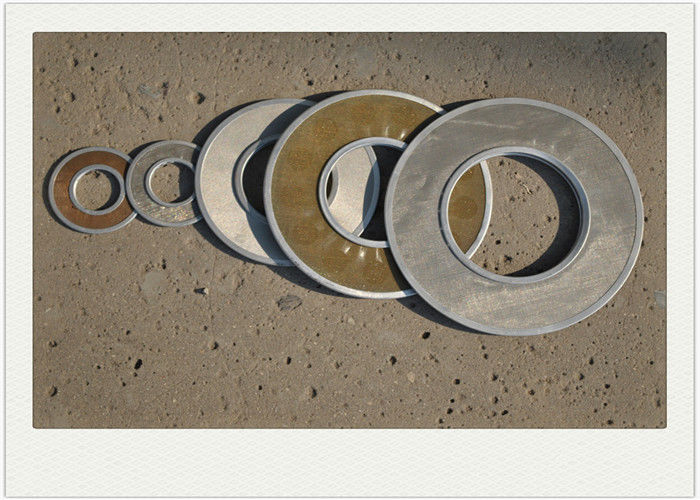

With wrapping filter disc

Advantages: Don't hurt the hands

Weave / Welded Wire Mesh Filter Disc With Sintered Wire Mesh For Oil Filter 2 We can do any size,no matter how samll your request

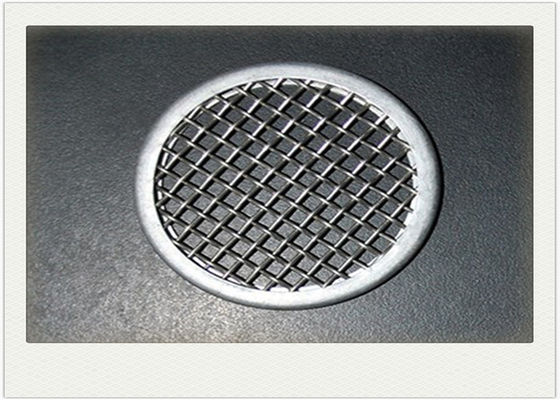

Weave / Welded Wire Mesh Filter Disc With Sintered Wire Mesh For Oil Filter 3 Square wire mesh filter disc,

Applications of stainless steel mesh filters:

  • Petroleum
  • chemical industry
  • metallurgy
  • aviation
  • electronics
  • electric power
  • pharmaceutical



sample of mesh filters:

for expensive and special desinged sample,the designed fee should be charged,other can be supplied free.all freight to other countries expect China mainland should be paid by buyer.



Packag of mesh filters:

  • for mesh discs,we pack them first with streth film,then plywood case
  • for mesh filter elements,cartridges,we pack them with air bubble filter first,then put them in plywood case or carton case to make sure shipment safty.
  • for mesh strainer,sieves,usually we packing them with plastic bag ,then in plywood case.

Weave / Welded Wire Mesh Filter Disc With Sintered Wire Mesh For Oil Filter 4
