High Temperature Resistant Polyester Mesh Belt With White Used For Sewage

High Temperature Resistant Polyester Mesh Belt With White Used For Sewage

Brand Name: PFM-LIS
Model Number: PFM
MOQ: 30 square meter
Price: negotiable
Payment Terms: D/A, D/P, Western Union, , L/C, T/T
Supply Ability: 2000 meter per week
Detail Information
Place of Origin:
Hebei
Certification:
FDA
Material:
Polyester
Length:
30m/roll
Width:
As Your Request
Wire Diameter:
0.5-1.1mm
Strength:
1850-3400n/cm
Color:
White,blue
Packaging Details:
Plastic bag inside and plywood case outside.
Highlight:

plain weave mesh

,

woven mesh fabric

Product Description

                         Polyester Mesh Belt / Sludge Dewatering Belt Used in Sewage Treatment



Description of polyester mesh belt



The belt is used in various diameter size of sludge dewatering and paper mill pulp squeeze,fruit juice concentrates squeeze in belt filter press machine,rubber belt vacuum filter machine and horizontal vacuum belt in filter machine

The special design of the belt has features of easy to stick a lot of mud,and the muld is easy to get off from the fabric,the belt is easy to clean,and easy to install



The product has the following characteristics



  • Filter belt in the safe use of the temperature and subject to a certain tension, the filter belt shape stability.
  • Chemical stability: the use of different materials, to meet the acid, alkali, corrosion resistance, high temperature requirements
  • Filter belt tensile strength, good wear resistance, making the product longer life.
  • Can meet the different filtration accuracy requirements (2-500um).

Applications of polyester mesh belt

  • Wasterwater treatment plants
  • Paper and tissue plants
  • Coal plants and abatoirs
  • Pressing of grapes,fruit and others.

Specification



                                           Sewage treatment mesh
Model Thread diameter(mm) Density(No.s/cm)

Strength

(N/cm)

Air permeability

(m3/m3h)

  Warp Weft Warp Weft
24708 0.5 0.7 24 9 2000 6130
27708 0.5 0.7 28 8.5 2100 4120
22903 0.5 0.9 23 5.5 2000 6800
16903 0.7 0.9 17 4.5 2200 7920
121103 0.9 1.1 12.5 3.8 3600 8610
26808 0.5 0.8 27 8.5 2100 5120
14803 0.7 0.8 14.2-15 4.2-5.5 2400 3900-8500
16803 0.7 0.8 15.6-16 4.5-6 2650 4500-6500
16904 0.7 0.9 15.6-16 4.2-5 2800 4000-8000
121054 0.7 1.05 12-12.4 4.2-4.8 3400 2000-4000
20703 0.5 0.7 20-20.6 6.5-8 1850 6000-10000
16704 0.7 0.7 16-16.4 8.5-9 2650 10000-12000
26908 0.5 0.9 26.4-27 6.5-7.5 2400 4500-6500



Packing and Delivery



Packing: Plastic bag inside and plywood case outside

Delivery:After receiving 50% advanced payment,we will arrange to producing and the goods will be shipped within 8days.

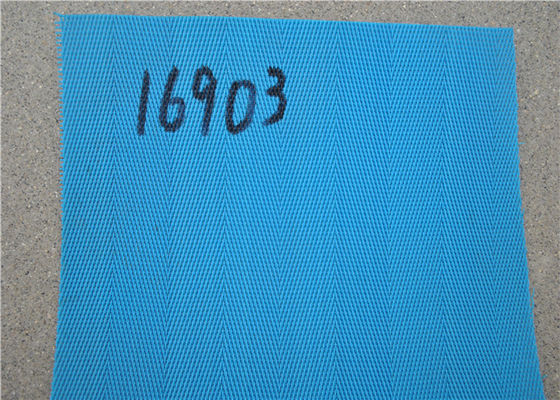

High Temperature Resistant Polyester Mesh Belt With White Used For Sewage 0

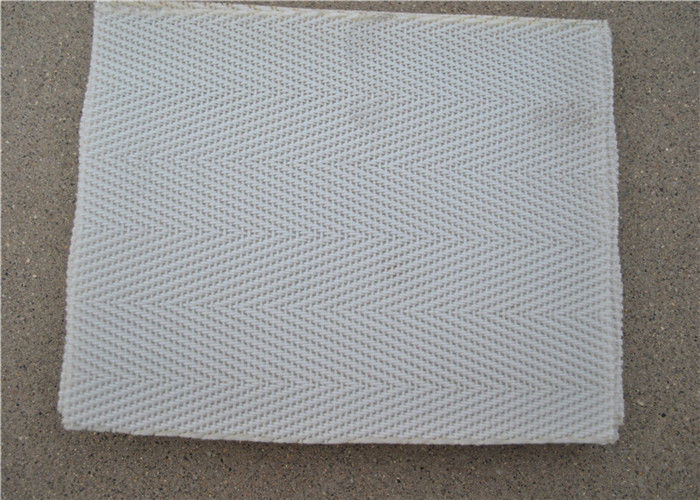

High Temperature Resistant Polyester Mesh Belt With White Used For Sewage 1

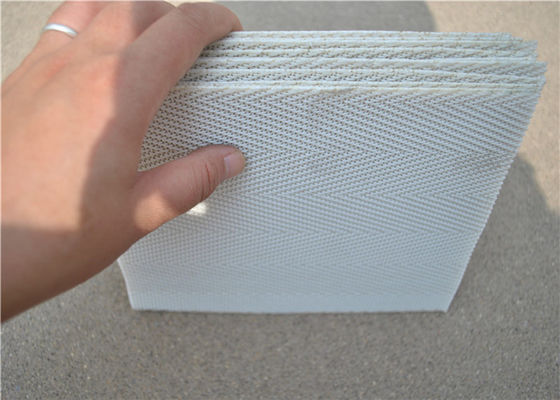

High Temperature Resistant Polyester Mesh Belt With White Used For Sewage 2
