DFP46 Polyester Screen Printing Mesh 120 Mesh High Tension

Name: DFP46 Polyester Screen Printing Mesh 120 Mesh High Tension
Brand: Anping County Comesh Filter Co.,Ltd
SKU: PFM-W
Price: 4.20 USD
Availability: InStock

Product Details

Place of Origin: Hebei,China

Brand Name: PFM

Certification: FDA

Model Number: PFM-W

Payment & Shipping Terms

Minimum Order Quantity: 30meters

Price: Negotiable

Packaging Details: Plastic bag inside and caton box outside,or cut into small pieces then put them into plastic bags.

Delivery Time: within 8days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, ,Paypal

Supply Ability: 2000meters per week

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                    screen printing fabric mesh, monofilament polyester mesh


Model:	DFP 46	Usage:	For Ceremics
Color:	White	Feature:	High Tension
Width:	1.65m	Sample:	A4 Is Free

Model:	DFP 46
Usage:	For Ceremics
Color:	White
Feature:	High Tension
Width:	1.65m
Sample:	A4 Is Free

Product Description

DFP46 Polyester Screen Printing Mesh With High Tension For Ceramics

Product Specifications

Attribute	Value
Model	DFP 46
Usage	For ceramics
Color	White
Feature	High tension
Width	1.65m
Sample	A4 is free

Key Features

High tension: Excellent tension stability with low screen tension. The high tension, small mesh distance, and superior off-grid and ink stripping capabilities produce high-precision, quality printing results while maintaining stability throughout the printing process.
High precision: Can reach up to 500 mesh/cm with tightly controlled screen thickness, opening, and wire diameter tolerances, making it ideal for high-precision line and dot printing.
High wear resistance: Made from premium fibers with specially treated surfaces to withstand high-pressure friction, ensuring durability and extended screen life.

Technical Specifications

Specification	Mesh Count (mesh/inch)	Thread Diameter (Micron)	Mesh Opening (micron)	Open Surface (%)	Fabric Thickness (um)	Weight (G/m²)
DFP30	76	55*2	223	45	100	45
DFP33	84	55*2	192	40	100	50
DFP36	90	55*2	167	36	105	54
DFP39	100	55*2	146	32	105	58
DFP42	107	45*2	148	39	77	42
DFP46	120	*452**	127	34	78	46
DFP54	137	45*2	94	26	80	54
DFP58	147	39*2	94	30	74	44

Applications

1. Printing Mesh for Electronics

Polyester screen printing is the fastest and most economical method for printing printed circuit boards (PCB) solder masks, etching resist, legends, and single or multi-layer circuits.

2. Printing Mesh for Textile

Ideal for transferring thick ink deposits and creating special effects, making it optimal for high-quality commercial garment printing.

3. Printing Mesh for CDs/DVDs

Offers superior ink transparency, brilliance, and decorative pattern options with fast production cycles that don't affect disc performance.

4. Printing Mesh for Glass

Used for direct screen printing on pharmaceutical glass appliances (names, measuring marks) and household appliances like microwave oven doors and ceramic hot plates.

5. Automotive Glass Printing

Applied for black masks on windows, heating patterns, antennas, and sunroofs.

6. Glass Containers Printing

Decorates perfume, cosmetics, and drink bottles with screen printing methods.

7. Printing Mesh for Ceramics

Widely used for printing intense colors and ornate decorations on dishes, tiles, earthenware, and fine china.

Packaging Options

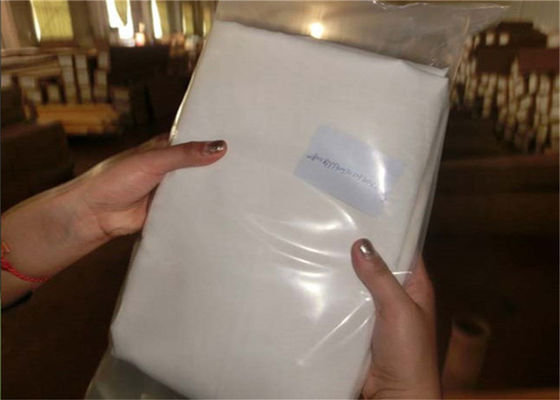

Cut into custom-sized pieces and packaged in plastic bags
Rolled and packaged in plastic bags with carton box protection
