Product Details:
Payment & Shipping Terms:
|
Materail: | 100%Nylon | Color: | White, |
---|---|---|---|
Name: | DPP43,110mesh/inch Nylon Filter Mesh | Hot Search: | Coffee Filter |
Mesh/inch: | 110mesh/inch | Keywords: | Nylon Filter Mesh |
High Light: | nylon mesh filter fabric,nylon mesh cloth |

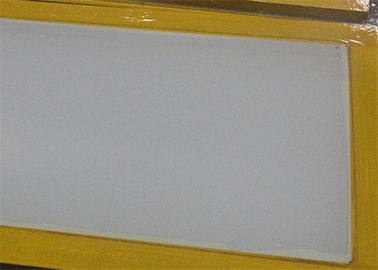

Food Grade Nylon Filter Cloth Mesh With DPP43 110Mesh Used For Coffee Filtering
Description:
White nylon yarn is also called nylon blended, the material for the food grade nylon 66, non-toxic, odorless. High strength, large elongation, excellent flexibility. Strong, good wear resistance, home all the first fiber.
Features of nylon filter mesh
Specification:
Fabric number |
Mesh count |
Thread diameter | Mesh opening |
Open surface |
Fabric thickness |
Weight | ||
NO. | Mesh/cm | Mesh/inch | micron | micron | % | micron | g/m2 | |
JPP4 | 4 | 10 | 550 | 1950 | 61 | 950 | 262 | |
JPP5 | 5 | 12 | 500 | 1500 | 56 | 850 | 271 | |
JPP6 | 6 | 16 | 400 | 1267 | 58 | 780 | 208 | |
JPP7 | 7 | 18 | 350 | 1079 | 57 | 675 | 186 | |
JPP8 | 8 | 20 | 350 | 900 | 52 | 685 | 212 | |
JPP9 | 9 | 24 | 250 | 860 | 60 | 455 | 145 | |
JPP10 | 10 | 25 | 300 | 700 | 49 | 576 | 195 | |
JPP12 | 12 | 30 | 250 | 583 | 49 | 470 | 162 | |
12 | 30 | 300 | 533 | 41 | 585 | 234 | ||
JPP14 | 14 | 35 | 300 | 414 | 34 | 595 | 273 | |
JPP16 | 16 | 40 | 200 | 425 | 46 | 370 | 139 | |
16 | 40 | 250 | 375 | 36 | 485 | 217 | ||
JPP20 | 20 | 50 | 150 | 350 | 49 | 375 | 98 | |
20 | 50 | 200 | 300 | 36 | 385 | 173 | ||
JPP24 | 24 | 60 | 150 | 267 | 41 | 285 | 117 | |
JPP28 | 28 | 70 | 120 | 237 | 44 | 215 | 87 | |
JPP30 | 30 | 76 | 120 | 213 | 41 | 225 | 94 | |
JPP32 | 32 | 80 | 100 | 213 | 46 | 165 | 69 | |
JPP36 | 36 | 90 | 100 | 178 | 41 | 178 | 78 | |
JPP40 | 40 | 100 | 100 | 150 | 36 | 190 | 87 | |
JPP43 | 43 | 110 | 80 | 152 | 43 | 135 | 60 | |
JPP48 | 48 | 120 | 80 | 130 | 38 | 145 | 62 | |
JPP56 | 56 | 140 | 60 | 120 | 44 | 85 | 44 | |
JPP59 | 59 | 150 | 60 | 110 | 42 | 98 | 46 | |
JPP64 | 64 | 160 | 60 | 100 | 37 | 105 | 50 | |
JPP72 | 72 | 180 | 50 | 90 | 41 | 82 | 39 | |
JPP80 | 80 | 200 | 50 | 75 | 36 | 90 | 43 | |
JPP100 | 100 | 250 | 40 | 60 | 36 | 65 | 35 | |
JPP120 | 120 | 305 | 40 | 43 | 25 | 70 | 42 | |
JPP130 | 130 | 330 | 40 | 37 | 23 | 75 | 45 |
|
Material:Nylon Thread diameter:80micron Mesh:110mesh/inch Open area:42% Thickness:155micron |
Application of nylon filter mesh
1. used in refrigeration air conditioning equipment, air cleaners and air purification equipment and engineering dust filter early use.
2. Office buildings, conference rooms, hospitals, shopping malls, gymnasiums, airports and other large civil building ventilation system; general factory centralized ventilation and air conditioning system; clean room centralized ventilation air conditioning system in the primary filter
Packing and Delivery

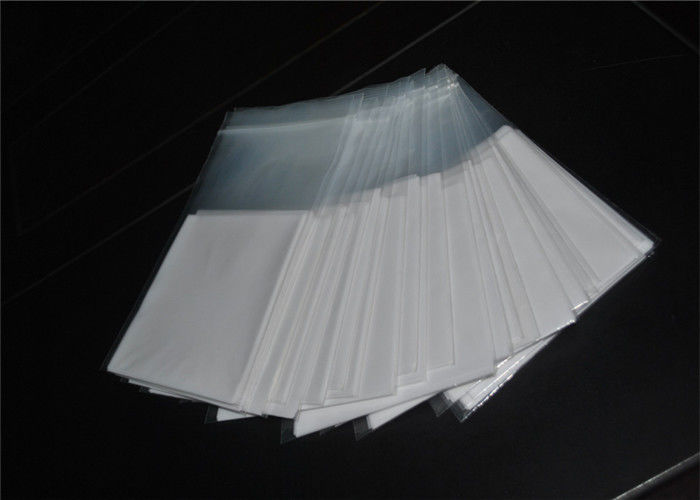

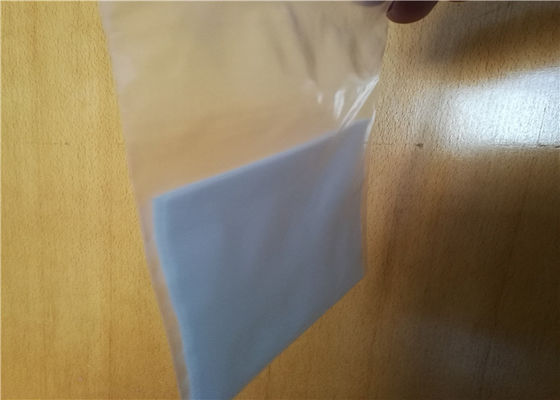

Packing:Plastic bag per roll inside and carton box outside
Or cut it into small pieces,then use plastic bag.
According to your request,
