Round SS Sintered Wire Mesh Filter With Round Filter Disc 2-2300 Mesh / Inch

Brand Name:	PFM
Model Number:	PFM-Lis
MOQ:	100 pieces
Price:	Negotiable
Payment Terms:	L/C, T/T, Western Union, ,Paypal,
Supply Ability:	500 piece per week

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

SGS

Shape:

Round,

Mesh./inch:

2-2300 Mesh / Inch

Size:

According To The Customer's Need

Hot Search:

Filter Disc

Keyword:

Stainless Steel Filter Disc

Sample:

Free

Packaging Details:

plywood case

Highlight:

mesh screen filter

metal gauze filter

Product Description

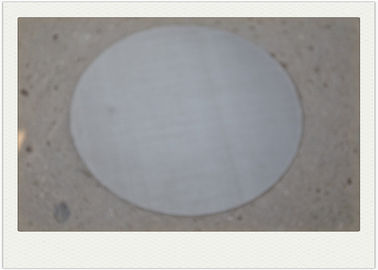

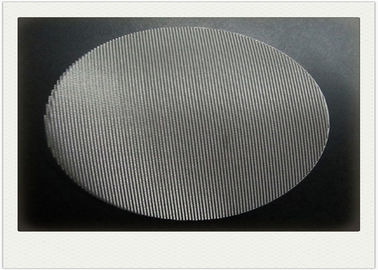

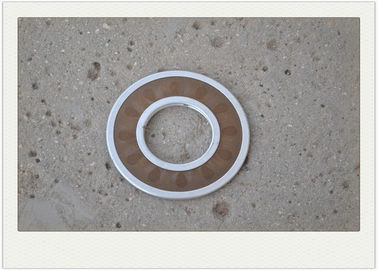

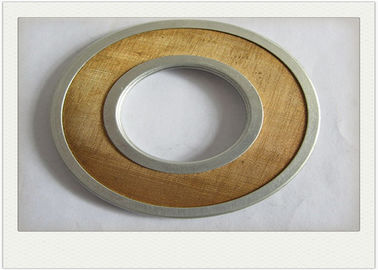

Stainless Steel Sintered Wire Mesh Filter With Round Filter Disc

Definition

The filter is a different set of wire mesh set supported by the sieve plate before the extruder is used to filter the molten stream and increase the flow resistance to filter out the mechanical impurities and improve the effect of mixing or plasticizing. With acid, alkali, temperature, wear and other properties; mainly used in mining, petroleum, chemical, food, medicine, machinery manufacturing and other industries

Processing technology

Filter by the shape points: rectangular, round, ring, from the shape, waist, shaped.
Filter by the structure points: single-layer network, multi-layer composite filter mesh, modular filter.
Filter by the number of layers: single, double, three, four, five, multi-storey. In the case of
Filter main material: stainless steel filter. (20 to 800 mesh).

Material

Stainless steel mesh, I-type network, black silk cloth, copper mesh, galvanized square wire mesh, black silk cloth and so on.

Features of Stainless steel wrie mesh filters:

corrosion resistant,wear resistant,
stable structure,high strength
resistant to acid,alkali,high or low temperature
precise filtering rate
easy to clean ,backwash
long service life

Specifications of mesh filters:

material type	stainless steel 201,304 316 316L,2080,601,carbon steel,iron,copper,brass
shape	Round,Rectangular,special shape,
processing way	welded,dot welded,woven,folded,punching,sintered
diameter	5-400micron
structure	single layer,double layer or multi-layer
edge treatment	edge filter disc / no edge filter disc
specification	40/20,65/30,90/30,90/45,125/60,155/70,175/90 etc.
size	desinged according to customer`s requirement
Average filtering accuracy	5-80micron
Filter material	Phosphor copper mesh, stainless steel plain screen, twill and stainless steel seats type network

Application:

Filter, filter components, can be used for rubber, plastic industry, grain and oil screening, oil, oil refining, chemical, light industry, medicine, metallurgy, machinery, ships, automobile tractors and other industries Distillation, absorption, evaporation, filtration and other processes to eliminate entrainment in the vapor or gas droplets and liquid foam, and car tractors used as air filters.

sample of stainless steel wire mesh filters:

for expensive and special desinged sample,the designed fee should be charged,other can be supplied free.all freight to other countries expect China mainland should be paid by buyer.

Package of stainless steel wire mesh filters:

Use plywood case or carton box

According to your request
