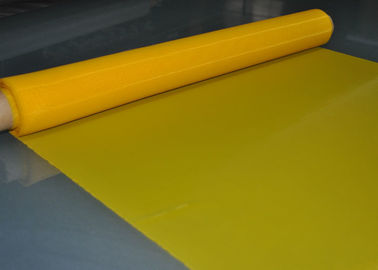

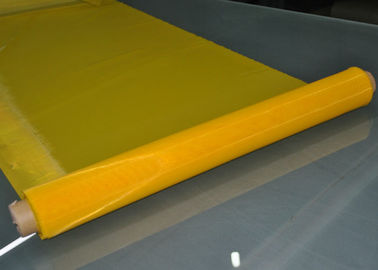

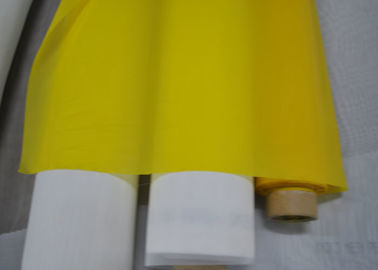

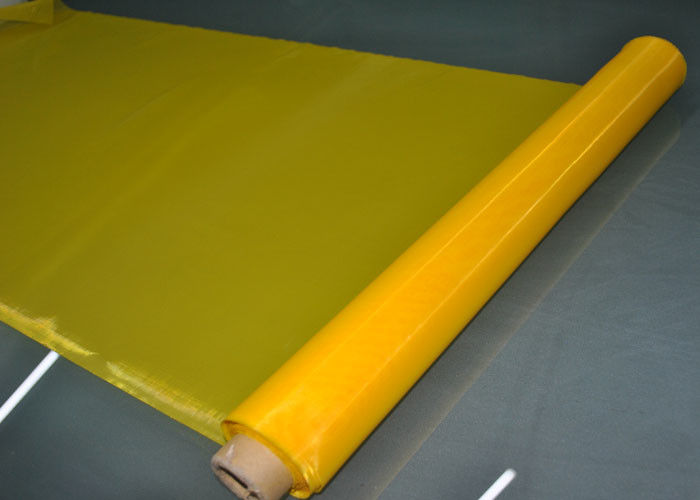

Yellow 62in 47T Polyester Screen Printing Mesh for Textile

Brand Name:	PFM
Model Number:	PFM-Hel
MOQ:	30meter
Price:	Negotiable
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, ，Trade assurance,Paypal
Supply Ability:	3000meters per week

Detail Information

Product Description

Detail Information

Place of Origin:

Hbei,China

Certification:

FDA

Product Name:

Yellow 62" 47T - 55 Micron Polyester Screen Printing Mesh For Textile Printing

Thread Diameter:

27-400micron

Mesh/inch:

15-460mesh/inch

Width:

62"

Application:

Textile Screen Printing

Packaging Details:

plastic bag inside, carton case outside,5-10rolls in one carton

Highlight:

screen printing fabric mesh

monofilament polyester mesh

Product Description

Yellow 62" 47T - 55 Micron Polyester Screen Printing Mesh for Textile Printing

Product Specifications

Attribute	Value
Product Name	Yellow 62" 47T - 55 Micron Polyester Screen Printing Mesh For Textile Printing
Thread Diameter	27-400micron
Mesh/inch	15-460mesh/inch
Width	62"
Application	Textile screen printing

Product Description

Polyester Screen Printing Mesh is widely used in textile printing, T-shirt printing, ceramic printing, glass printing and PCB printing industry.

Mesh Count per cm	47
Thread Diameter	55
Color	White
Opening Size	158 micron
Width	115cm, 127cm, 136cm, 145cm, 157cm, 165cm, 188cm, 220cm and MAX width can be 3.65cm

Key Features

High tension threshold and breaking point
High modulus, low elongation monofilament polyester yarn
Resistant to chemicals, abrasion, heat and moisture
Minimal tension loss during stretching process
Improved registration due to stable fabric tension
Good antistatic properties
No surface treatment

Technical Specifications

Detailed specifications of polyester screen printing mesh (highlighted row shows this product's specifications):

COUNT (INCH)	COUNT (CM)	DIAMETER (UM)	OPENING (UM)	OPEN AREA(%)	THICKNESS(UM)	VOLUME (CM³/CM²)	MAX TENSION(N/CM)
120	47	55	158	55	88	48	25-30

Manufacturer Information

Anping County PFM Screen Co., Ltd is located in the famous "home town of wire mesh" - Anping county industrial park, covering an area of 40,000 square meters with construction area of 11,000 square meters. It has 10,000 grade clean production workshop (1,500 square meters), 163 employees including 56 engineering technical personnel. The factory has introduced the world's most advanced polyester screen printing mesh production line including Switzerland 330 cm p7100 gripper loom, German intelligent electronic sectional warping machines, automatic heat setting machine, washing machine and other equipment (46 total). It has the most advanced test equipment.

Packaging Details

Mesh rolls in a PP bag
2-12 rolls per carton
Waterproof bags outside
Package belt strengthened

Recommended Mesh Sizes for Different Applications

20 and 40 mesh: Used mostly for glitter inks that need very open mesh for printing
60 mesh: Usually used for printing smaller glitter and most shimmer inks
80 mesh: Used for printing shimmer inks and laying down thick layers of ink for high-density printing
110 mesh: Makes printing white and other thick inks easy, ideal for spot color printing
120 mesh: One of the most widely used mesh sizes in screen printing, great for printing white ink
155 mesh: Great for general purpose textile printing with basic to semi-fine detail
200 mesh: Great for printing more detailed prints that need thinner layer of ink
230 mesh: Great for high-end fine detail printing, holds halftones very well
280 mesh: Excellent for high-end fine detail printing and halftones
305 mesh: Holds extremely high detail, letting through only thin layer of ink

Ordering Information

Minimum Order Quantity (MOQ): Usually 30 meters (smaller quantities may be possible - please contact us)

Samples: Samples (up to 2 meters) can be supplied free of charge (buyer pays freight)

Customer Service

Pre-Sale Service:

Inquiry and consulting support
Sample testing support
Factory visit arrangements

After-Sale Service:

Prompt shipping with tracking number
Usage guidance and training
Replacement if dissatisfaction occurs
