Polyester Screen Printing Mesh
Created with Pixso.

Yellow 50in 72T 55 Micron Polyester Screen Printing Mesh

Yellow 50in 72T 55 Micron Polyester Screen Printing Mesh

Yellow 50in 72T 55 Micron Polyester Screen Printing Mesh

Brand Name: PFM
Model Number: PFM-Hel
MOQ: 30meter
Price: Negotiable
Payment Terms: D/A, L/C, D/P, T/T, Western Union, ，Trade assurance,Paypal
Supply Ability: 3000meters per week
Detail Information
Product Description
Detail Information
Place of Origin:
Hbei,China
Certification:
FDA
Product Name:
Yellow 50" 72T - 55 Polyester Screen Printing Mesh For Textile Printing
Thread Diameter:
55 Micron
Mesh/inch:
180
Color:
White,yellow And Black
Applications:
Textile Screen Printing Screens
Packaging Details:
plastic bag inside, carton case outside,5-10rolls in one carton
Highlight:

screen printing fabric mesh

,

screen printing mesh roll

Product Description
Yellow 50" 72T - 55 Polyester Screen Printing Mesh
Product Specifications
Attribute Value
Product Name Yellow 50" 72T - 55 Polyester Screen Printing Mesh For Textile Printing
Thread Diameter 55 micron
Mesh/inch 180
Color White, Yellow and Black
Applications Textile screen printing screens
Key Features
  • High tension threshold and breaking point
  • High modulus, low elongation monofilament polyester yarn
  • Resistant to chemicals, abrasion, heat and moisture
  • Minimal tension loss during stretching process
  • Improved registration due to stable fabric tension
  • Good antistatic properties
  • No surface treatment required
Applications

Polyester Screen Printing Mesh is widely used in textile printing, T-shirt printing, ceramic printing, glass printing and PCB printing industry.

Technical Specifications
COUNT (INCH) COUNT (CM) DIAMETER (UM) OPENING (UM) OPEN AREA(%) THICKNESS(UM) VOLUME (CM³/CM²) MAX TENSION(N/CM)
180 72 55 84 37 100 37 25-30
Recommended Mesh Sizes
  • 20-40 mesh: Best for glitter inks requiring very open mesh
  • 60 mesh: Ideal for smaller glitter and most shimmer inks
  • 80 mesh: Excellent for high-density printing and foil adhesive
  • 110 mesh: Perfect for spot color printing with thick inks
  • 120 mesh: Most common size for textile printing with thick inks
  • 155 mesh: General purpose textile printing with basic detail
  • 200-230 mesh: High-end fine detail printing with thinner inks
  • 280-305 mesh: Extremely high detail printing with minimal ink deposit
Packaging Information
  • Mesh rolls in PP bags
  • 2-12 rolls per carton
  • Waterproof outer bags
  • Reinforced with package belts
Ordering Information

Minimum Order Quantity (MOQ): Typically 30 meters (smaller quantities may be available - please inquire)

Free samples available (up to 2 meters) - buyer responsible for shipping costs.

Customer Service
Pre-Sale Services
  • Inquiry and consulting support
  • Sample testing support
  • Factory tours available
After-Sale Services
  • Prompt shipment tracking
  • Usage training available
  • Replacement for unsatisfactory products

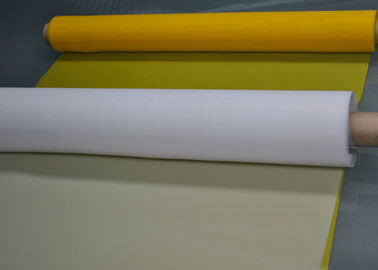

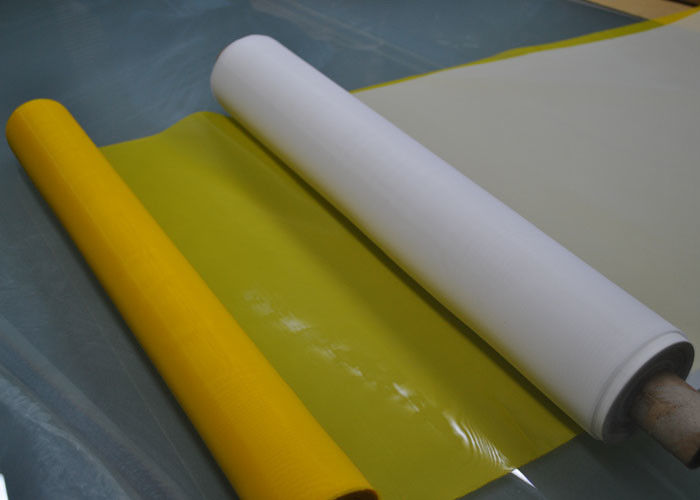

Yellow 50in 72T 55 Micron Polyester Screen Printing Mesh 0 Yellow 50in 72T 55 Micron Polyester Screen Printing Mesh 1
