White 200 Mesh Polyester Screen Printing Fabric 45 Micron Thread

White 200 Mesh Polyester Screen Printing Fabric 45 Micron Thread

Brand Name:	PFM
Model Number:	PFM-Hel
MOQ:	30meter
Price:	Negotiable
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, ，Trade assurance,Paypal
Supply Ability:	3000meters per week

Detail Information

Product Description

Detail Information

Place of Origin:

Hbei,China

Certification:

FDA

Thread Diameter:

45 Micron

Mesh/inch:

200mesh/inch

Weave:

1:1

Sample:

Free Sample

Aperture:

80micron

Thickness:

80micron

Packaging Details:

plastic bag inside, carton case outside,5-10rolls in one carton

Highlight:

screen printing fabric mesh

monofilament polyester mesh

Product Description

White 200 Mesh Screen Printing Polyester Fabric High Temperature Resistant

Product Specifications

Attribute	Value
Thread diameter	45 micron
Mesh/inch	200mesh/inch
Weave	1:1
Sample	Free sample available
Aperture	80micron
Thickness	80micron

Product Description

High Temperature Resistant White 200Mesh Polyester Screen Printing Mesh is engineered for superior performance in demanding printing applications.

Mesh count per cm	200mesh/inch
Thread diameter	45micron

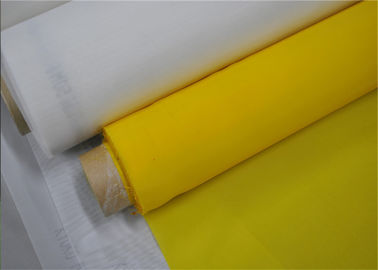

Color	White, yellow
Opening size	80micron
Width	115cm, 127cm, 136cm, 145cm, 157cm, 165cm, 188cm, 220cm (Max width: 3.65m)

Manufacturer Profile

Anping County PFM Screen Co., Ltd is located in Anping County Industrial Park, known as the "hometown of wire mesh." Our facility covers 40,000 square meters with a 15,000 square meter clean production workshop. We employ 163 staff including 56 engineering technicians and utilize world-class production equipment including Swiss gripper looms and German warping machines.

Key Features

High tension threshold and breaking point
High modulus, low elongation monofilament polyester yarn
Resistant to chemicals, abrasion, heat and moisture
Minimal tension loss during stretching process
Improved registration due to stable fabric tension
Excellent antistatic properties
No surface treatment required

Applications

Ideal for textile printing, T-shirt printing, ceramic printing, glass printing, and PCB printing industries.

Technical Specifications

Count (inch)	Count (cm)	Diameter (um)	Opening (um)	Open Area(%)	Thickness(um)	Volume (CM³/CM²)	Max Tension(N/CM)
15	6	400	1270	64	720	460	30-60
18	7	350	1078	64	640	410	30-60
20	8	300	950	58	550	319	30-60
460	180	27	28	26	56	14	20-22

Mesh Selection Guide

20-40 mesh: Best for glitter inks requiring open mesh
60 mesh: Ideal for smaller glitter and shimmer inks
80 mesh: Excellent for thick ink layers and foil adhesive
110 mesh: Perfect for white and thick ink spot color printing
120 mesh: Most common size for textile printing
155 mesh: General purpose textile printing with semi-fine detail
200 mesh: Detailed prints with thinner ink layers
230-305 mesh: High-end fine detail and halftone printing

Production Process

Packaging

Mesh rolls in PP bags
2-12 rolls per carton
Waterproof outer bags
Reinforced with package belts

Ordering Information

Minimum order quantity (MOQ) is typically 30 meters, though smaller quantities may be available. Free samples (≤2m) are available with freight paid by buyer.
