Water Resistance Polyester Bolting Cloth Used For Food Filtering

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Water Resistance Polyester Bolting Cloth Used For Food Filtering

Product Details:
Place of Origin: Hebei China
Brand Name: PFM
Certification: LFGB
Model Number: PFM-Lyd
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: plastic bag,then carton case
Delivery Time: 3-10 days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal,Trade assurance
Supply Ability: 500 piece per week
Detailed Product Description
Material: 100%polyester Feature: High Temperature Resistance
Application: Food Filtering Mesh Count: 6T-180T
Opening: 25-740micron Color: White,yellow,black
High Light:

tensile bolt cloth

,

tensile bolting cloth

Water Resistance Polyester Bolting Cloth Used For Food Filtering







1. The difference between white and yellow polyester bolting cloth​

  1. White bolting cloth is within 40-200mesh/inch,Yellow bolting cloth is within 250-500mesh/inch
  2. The refractive index of the two colors is different,White refraction in the copy more, affecting the quality of the screen
  3. If you print ink, you should choose a high head,If the printing paste, select 100 or 80 mesh



2. Description of polyester bolting cloth



  •  Weave type: Plain weave
  • Mesh count: 6T~180T mesh/cm (15mesh/inch to 460mesh/inch)
  • Thread Diameter: 31-250um
  • Mesh Opening: 25-740um
  • Characteristics: Good stability and finer printing effect
  •  Used: Electric printing, screen printing and so on
  • Color: Yellow, white


3. Feature advantage of polyester bolting cloth



Polyester bolting cloth has high temperature resistance under 200 Degrees Celsius,acid resistance (not suitable for alkali),solvent resistance,water resistance,chemicals resistance,by the external pressure is large, its physical properties and stability, small stretch



4. Specification of polyester bolting cloth



COUNT (INCH) COUNT (CM) DIAMETER (UM) OPEPING (UM) OPEN AREA(%) THICKNESS(UM) VOLUME (CM³/CM²) MAX TEN SION(N/CM)
15 6 400 1270 64 720 460 30-60
18 7 350 1078 64 640 410 30-60
20 8 300 950 58 550 319 30-60
25 10 250 750 56 620 347 30-60
30 12 250 583 49 450 220 30-60
30 12 150 683 67 300 201 30-60
40 16 200 425 46 400 184 30-60
50 20 80 420 71 120 85 35-37
50 20 150 350 49 260 127 30-60
60 24 100 316 58 136 78 35-40
60 24 120 297 50 240 120 35-60
73 29 120 225 43 240 103 35-60
80 32 64 248 63 95 59 30-34
80 32 100 212 46 200 92 35-40
85 34 100 195 44 221 97 35-40
90 36 100 178 41 216 88 35-40
100 39 55 200 61 88 53 25-30
100 39 80 176 47 150 70 35-37
110 43 80 153 43 130 56 35-37
120 47 55 158 55 88 48 25-30
120 47 71 142 44 135 59 30-34
135 53 55 133 50 86 43 25-30
135 53 64 125 44 100 44 26-31
150 59 64 105 38 100 38 26-31
160 64 55 101 42 98 41 25-30
160 64 64 92 35 120 42 30-34
180 72 48 91 43 78 66 27-29
180 72 55 84 37 100 37 25-30
200 80 48 77 38 74 28 27-29
195 77 55 75 33 105 34 25-30
230 90 48 63 33 85 28 27-29
250 100 40 60 36 70 25 20-24
280 110 40 51 31 85 26 20-24
305 120 40 43 27 68 18 20-24
355 140 34 37 27 58 15 22-24
380 150 31 36 29 46 13 21-23
420 165 31 30 24 46 11 21-23
460 180 27 28 26 56 14 20-22





5. Application of polyester bolting cloth



Polyester bolting cloth is woven from yarn that is extruded from heated polyester into a single strand. Widely used in textile printing, plate making printing, electronic printing, ceramics, glass, stained paper printing, label plate, and advertising.

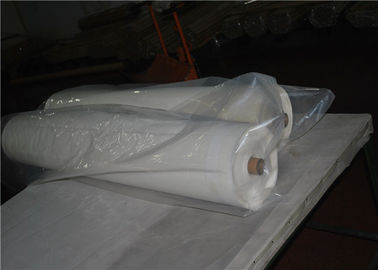

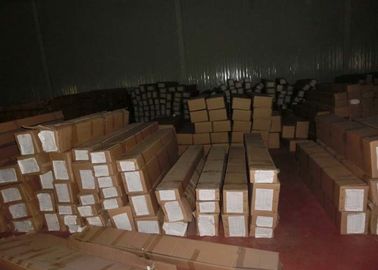

6. The common packaging:



1. 30-70m/roll in PVC bag.

2. 2-8 rolls per carton .
3. waterproof bags outside .
4. package belt strengthen.



7. The common shipping:



1. for small quantity, shipped by courier.
2. for large quantity, shiped by air or by sea.
3. tracking number will be emailed to you after order has been shipped.
4. If you have forwarder in China, we can send to your forwarder for free.
