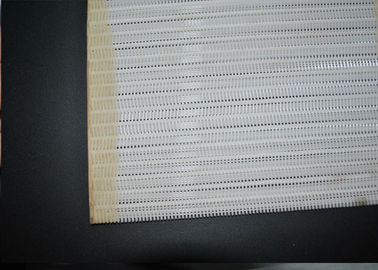

High Performance 100% Polyester Spiral Mesh 0.5-1.1mm For Paper Industry

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  High Performance 100% Polyester Spiral Mesh 0.5-1.1mm For Paper Industry

Product Details:
Place of Origin: Hebei,China
Brand Name: PFM
Certification: FDA
Model Number: PFM-LIS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Square Meter
Price: Negotiable
Packaging Details: Plastic Bag Inside And Plywood Case Outside Or According To The Customer's Needs.
Delivery Time: 3-5 Working Days
Payment Terms: L/C, T/T, Western Union, , MoneyGram,Paypal
Supply Ability: 2000 Square Meters Per Quarter
Detailed Product Description
Marterail: Monofilament Polyester Color: White,blue,red.
Name: Polyester Spiral Dryer Fabric Conveyor Wire Mesh Belt For Paper Making Hot Search: Polyester Dryer Belt
Weave Type: Small Loop,medium Loop,large Loop Application: Paper Industry
Thread Diameter: 0.5-1.1mm
High Light:

stretch mesh fabric

,

mesh material fabric

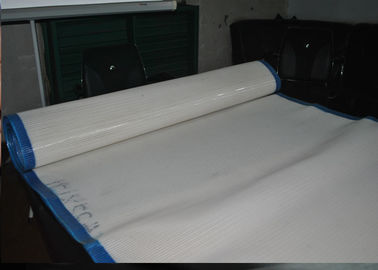

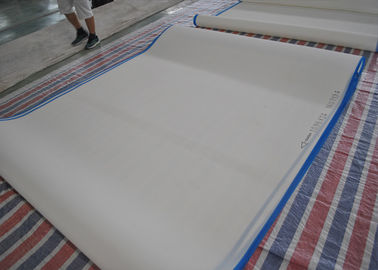

Good Permeability 100%Polyester Dryer Screen For Conveyor Wire Mesh Belt





Good Permeability 100%Polyester Dryer Screen For Conveyor Wire Mesh Belt



      Polyester spiral dryer belt is using the latest international in the ninety s made of nonwoven technology and equipment production, is currently the world's one of the most advanced drying, filtering material. I plant the production of polyester spiral stem network is made of high quality high viscosity polyester chip processing wire, after forming, weaving, finishing, finalize the design.



Good Permeability 100%Polyester Dryer Screen For Conveyor Wire Mesh Belt



  1. polyester spiral dryer belt is suitable for high-pressure pressfilter washer, horizontal belt washer, pulp-liquor separator and netting belt coal-washer.
  2. polyester spiral dryer belt are extensively used for producing cardboard,kraft paper,corrugated paper,paper for train fare,single two-shed press-filter,instead of papermaking machine dry blanket,canvas,as well as apply to colliery,food and medicine as conveyor belts.
  3. polyester spiral dryer belt are made with special first quality yarns in 100%polyester,every spiral link dryer fabric is heat-set granting a high degree of stability and long running life.



Good Permeability 100%Polyester Dryer Screen For Conveyor Wire Mesh Belt



Polyester Spiral Dryer Conveyor Wire Mesh Belt
Weaving Type Model Thread Diameter Air permeability
(mm) (m3/m2h)
Warp Weft
Large Loop 4070 0.9 1.1 20000±500
Medium Loop 3868 0.7 0.9 18500±500
Small Loop 3252 0.52 0.7 15000±500





Good Permeability 100%Polyester Dryer Screen For Conveyor Wire Mesh Belt Features:

  1.  Smooth,seamless filter or conveying surface.
  2. Durability,Stable property, high strength,good cake release.
  3. Heat-resistance,high temperature resistance(180 degree).
  4. Shrink-resistant,wear resistance, acid and alkali-resistant.
  5. High dimensional and diagonal stability,good air ventilation.
  6. Filled or unfilled to achieved differing filtration characteristics.
  7. Super heat with resin sealed edges for lasting,no marking,economical solution .
  8. Seamless - the seam has exactly the same strength of the belt
  9. Can be repaired easily on site

About Our Company:



      Anping County PFM Screen Co.,ltd is a professional manufacturer of polyester printing mesh,polyester filter belt and stainless steel mesh.


       Our factory is located in Anping County-the famous Wire Mesh Land of China,with a land area of 40,000 square meters,a construction area of 13,000 square meters.PFM factory has 83 sets P7100&P7150 Sulzer polyester printing mesh weaving looms,23 sets Sweden Texo polyester dryer fabric looms,50 sets Japanese GRS1300 wire mesh looms,and 46 sets of other machine and devices including automatic warp arranging machine,heat setting machine,Austria Automatic seaming machine and other test facilities.


     PFM is not only professional in field of polyester mesh and stainless steel mesh,but also in wire mesh filters.our strong R&D capability(56 engineers and technicians) enables us to innovate almost everyday.So the customized orders are available.


Package of Polyester dryer screen



Plastic bag inside and plywood case outside.
