DFP46 Polyester Screen Printing Mesh With High Tension For Ceremics

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  DFP46 Polyester Screen Printing Mesh With High Tension For Ceremics

Product Details:
Place of Origin: Hebei,China
Brand Name: PFM
Certification: FDA
Model Number: PFM-W
Payment & Shipping Terms:
Minimum Order Quantity: 30meters
Price: Negotiable
Packaging Details: Plastic bag inside and caton box outside,or cut into small pieces then put them into plastic bags.
Delivery Time: within 8days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 2000meters per week
Detailed Product Description
Model: DFP 46 Usage: For Ceremics
Color: White Feature: High Tension
Width: 1.65m Sample: A4 Is Free
High Light:

screen printing fabric mesh

,

monofilament polyester mesh

                  DFP46 Polyester Screen Printing Mesh With High Tension Used For Ceremics



Features of polyester screen printing mesh

  • High tension: good tension stability of the screen tension is low; due to high tension, small mesh distance, off-grid and ink stripping excellent, can get high-precision, high-quality printing results. At the same time, the tension in the printing process to maintain a good stability, more to ensure the quality of printing and screen version of the service life.
  • High precision: high head can reach 500 mesh / cm, screen thickness, opening, wire diameter error control within a small range, is a high-precision line printing and dot printing excellent choice.
  • High wear resistance: the use of high-quality fiber to do raw materials, wire mesh surface after special treatment, can withstand high pressure friction times, so that the screen has a high degree of security and resistance to printing times.

Specifications



Specifcition

Mesh count

 mesh/inch

Thread diameter

      Micron

Mesh opening

    micron

Open surface

     %

Fabric thickness(um)

Weight

  G/m2

DFP30 76 55*2 223 45 100 45
DFP33 84 55*2 192 40 100 50
DFP36 90 55*2 167 36 105 54
DFP39 100 55*2 146 32 105 58
DFP42 107 45*2 148 39 77 42
DFP46 120 45*2 127 34 78 46
DFP54 137 45*2 94 26 80 54
DFP58 147 39*2 94 30 74 44



Applications of polyester screen printing mesh

  1. Printing mesh for electronics

Poyester screen printing is the fastest and most economical method to print printed circuit boards(PCB) solder masks,etching resist,legends and singles or multi-layers.

    2. Printing mesh for textile

 Polyester screen printing can transfer thick ink deposits and creat special effects to make into be optimal process to print high quality commerical garment

  3.Printing mesh for CDs/DVDs

Many superiorities of ink transparency,ink briliance,various decorative pattern choice are offered by polyester screen printing,and the most important is the fast production cycle time and unaffected disc performace.So printing is the perferred printing process for CDs and DVDs decoration,

 4.Printing mesh for glass

Direct screen printing on articles fopharmacy glass appliance,such as appliance name,measuring marks

Home appliance printing

Print the glass decorations on household

appliance such as microwaves oven doors and ceramics hot plates/stove tops.

 5.Automotive glass printing

The black mask for the front,side and back

windows,heating patterns,antennas and sun roofs

6.Glass containers printing

Perfumes,cosmetics and drink bottles are decorated with screen printing methods,

7.Printing mesh for ceramics

Polyester screen printing can print the chanllenging intense colors and ornate decor on the ceramics,so it is widely used in the decoration of dishes,tiles,earthware or fine china,

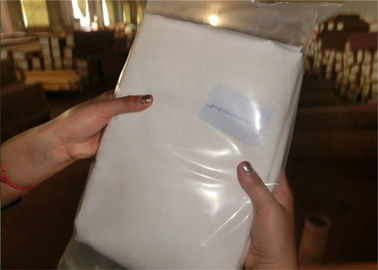

Package of polyester screen printing mesh

1.Cut it into small pieces according to your request,then use plastic bags

2.Plastic bag per roll ,then use carton box

DFP46 Polyester Screen Printing Mesh With High Tension For Ceremics 0

DFP46 Polyester Screen Printing Mesh With High Tension For Ceremics 1
