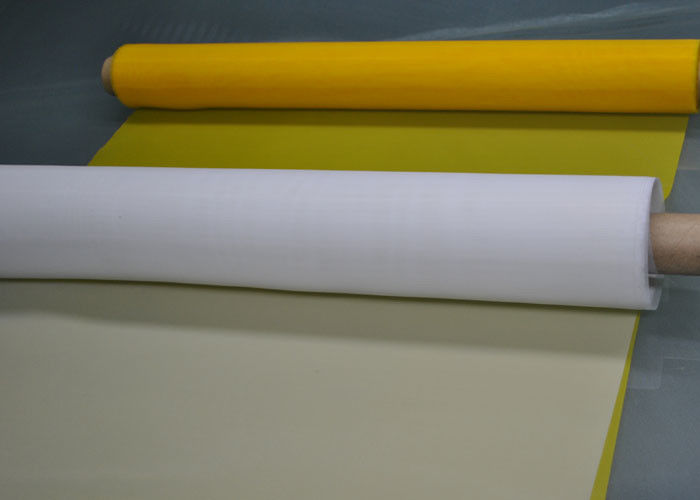

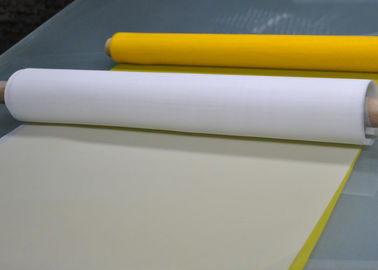

60 Micron 100T-40 Polyester Screen Printing Mesh 127cm Width

Brand Name:	PFM
Model Number:	PFM-Hel
MOQ:	30meter
Price:	Negotiable
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, ，Trade assurance,Paypal
Supply Ability:	3000meters per week

Detail Information

Product Description

Detail Information

Place of Origin:

Hbei,China

Certification:

FDA

Product Name:

60 Micron White 100T - 40 Polyester Screen Printing Mesh For T-shirt Printing

Thread Diameter:

40um

Mesh/inch:

250

Application:

T-shirt Screen Printing

Width:

127cm

Packaging Details:

plastic bag inside, carton case outside,5-10rolls in one carton

Highlight:

screen printing fabric mesh

screen printing mesh roll

Product Description

60 Micron High Tension Silk Screen Fabric Durable 100T - 40 With 127cm Width

Product Specifications

Attribute	Value
Product Name	60 micron White 100T - 40 Polyester Screen Printing Mesh For T-shirt Printing
Thread Diameter	40um
Mesh/inch	250
Application	T-shirt Screen Printing
Width	127cm

Detailed Description

Mesh Count Per cm	100
Thread Diameter	40
Color	White / Yellow
Opening Size	60 micron
Available Widths	115cm, 127cm, 136cm, 145cm, 157cm, 165cm, 188cm, 220cm (Max width: 3.65m)

Key Features

High tension threshold and breaking point
High modulus, low elongation monofilament polyester yarn
Resistant to chemicals, abrasion, heat and moisture
Minimal tension loss during stretching process
Improved registration due to stable fabric tension
Good antistatic properties
No surface treatment required

Manufacturer Information

Anping County PFM Screen Co., Ltd is located in the famous "home town of wire mesh" - Anping county industrial park, covering an area of 40,000 square meters with construction area of 11,000 square meters. Our facility includes:

10,000 grade clean production workshop (1,500 sqm)
163 employees including 56 engineering technical personnel
World's most advanced polyester screen printing mesh production line
Advanced test equipment

Applications

Polyester Screen Printing Mesh is widely used in:

Textile printing
T-shirt printing
Ceramic printing
Glass printing
PCB printing industry

Technical Specifications

Count (inch)	Count (cm)	Diameter (um)	Opening (um)	Open Area(%)	Thickness(um)	Volume (CM³/CM²)	Max Tension(N/CM)
15	6	400	1270	64	720	460	30-60
250	100	40	60	36	70	25	20-24

Mesh Selection Guide

20-40 mesh: Best for glitter inks requiring very open mesh
60 mesh: Ideal for smaller glitter and most shimmer inks
80 mesh: Used for shimmer inks, thick ink layers (high-density printing), and foil adhesive
110 mesh: Excellent for white and thick inks, ideal for spot color printing
120 mesh: Most common size for white ink and thicker viscosity colored inks
155 mesh: General purpose textile printing with basic to semi-fine detail
200 mesh: Detailed prints requiring thinner ink layers than 155 mesh
230-280 mesh: High-end fine detail printing and halftones
305 mesh: Extremely high detail with thin ink layers, soft hand feel on garments
