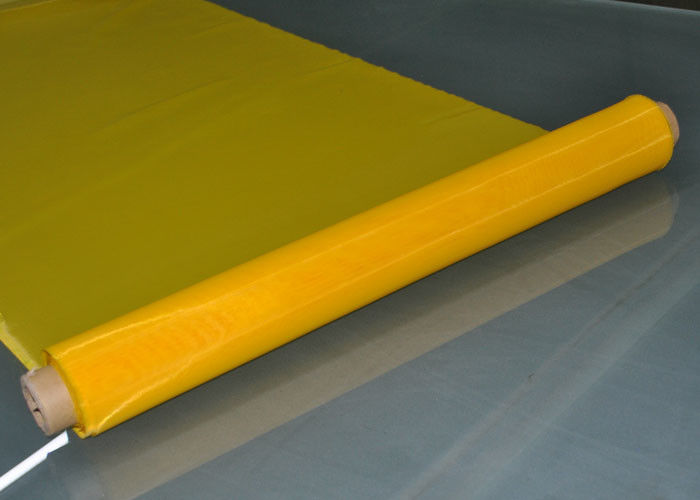

53T 55 Micron Polyester Screen Printing Mesh for Glass 165cm Width

53T 55 Micron Polyester Screen Printing Mesh for Glass 165cm Width

53T 55 Micron Polyester Screen Printing Mesh for Glass 165cm Width

Brand Name:	PFM
Model Number:	PFM-Hel
MOQ:	30meter
Price:	Negotiable
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, ，Trade assurance,Paypal
Supply Ability:	3000meters per week

Detail Information

Product Description

Detail Information

Place of Origin:

Hbei,China

Certification:

FDA

Product Name:

Yellow 53T - 55 Micron Polyester Screen Printing Mesh For Glass Printing

Thread Diameter:

55um

Mesh/inch:

135

Color:

White,yellow,black

Width:

165cm

Application:

Glass Screen Printing Mesh

Packaging Details:

plastic bag inside, carton case outside,5-10rolls in one carton

Highlight:

screen printing fabric mesh

,

screen printing mesh roll

Product Description

Yellow 53T - 55 Micron Polyester Screen Printing Mesh For Glass Printing

Product Name	Yellow 53T - 55 Micron Polyester Screen Printing Mesh For Glass Printing
Thread Diameter	55um
Mesh/inch	135
Color	White, Yellow, Black
Width	165cm
Application	Glass Screen Printing Mesh

Key Features

High tension threshold and breaking point
High modulus, low elongation monofilament polyester yarn
Resistant to chemicals, abrasion, heat and moisture
Minimal tension loss during stretching process
Improved registration due to stable fabric tension
Good antistatic properties
No surface treatment required

Technical Specifications

COUNT (INCH)	COUNT (CM)	DIAMETER (UM)	OPENING (UM)	OPEN AREA(%)	THICKNESS(UM)	VOLUME (CM³/CM²)	MAX TENSION(N/CM)
135	53	55	133	50	86	43	25-30

Applications

Polyester Screen Printing Mesh is widely used in textile printing, T-shirt printing, ceramic printing, glass printing and PCB printing industry.

Production Process

53T 55 Micron Polyester Screen Printing Mesh for Glass 165cm Width 0

Packaging Details

Mesh rolls in a PP bag
2-12 rolls per carton
Waterproof bags outside
Package belt strengthened

Our Services

Pre-Sale Service:

Inquiry and consulting support
Sample testing support
Factory visit arrangements

After-Sale Service:

Prompt shipment tracking
Usage training provided
Replacement for unsatisfactory products

53T 55 Micron Polyester Screen Printing Mesh for Glass 165cm Width 1
