45 Micron 200 Mesh Polyester Screen Printing Mesh Plain Weave

Brand Name:	PFM
Model Number:	PFM-LIS
MOQ:	1 piece
Price:	Negotiable
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, ，Trade assurance,Paypal
Supply Ability:	3000meters per week

Detail Information

Product Description

Detail Information

Place of Origin:

Hbei,China

Certification:

FDA

Material:

Polyester

Thread Diameter:

45micron

Mesh/inch:

200mesh

Weave Way:

Plain

Weave:

1:1

Delivery:

Within 3-7days

Packaging Details:

Plastic bag inside on one roll and plywood case outside or cut into small piece and plastic bag.

Highlight:

screen printing fabric mesh

monofilament polyester mesh

Product Description

Yellow 45 Micron DPP200 Polyester Screen Printing Mesh With Plain Weave

Attribute	Value
Material	Polyester
Thread diameter	45micron
Mesh/inch	200mesh
Weave way	plain
Weave	1:1
Delivery	within 3-7days

DPP200 Polyester Screen Printing Mesh With Plain Weave Used For Electronic

Description of DPP200 polyester screen printing mesh

Thread diameter: 45micron
Mesh: 200mesh/inch
Mesh opening: 80micron
Fabric thickness: 80micron
Weight: 40g/m2

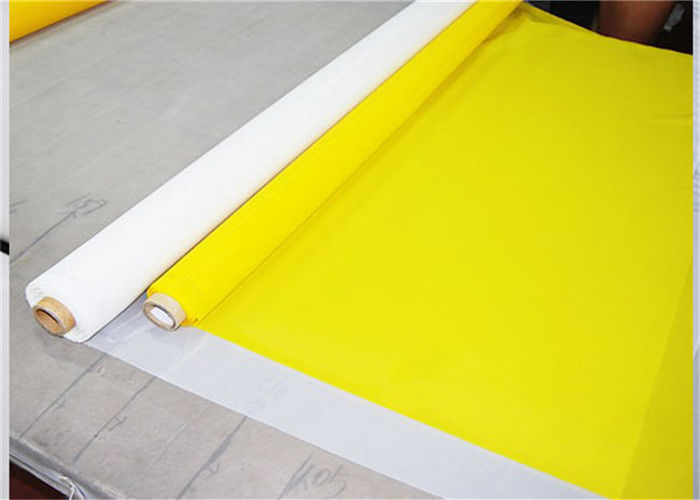

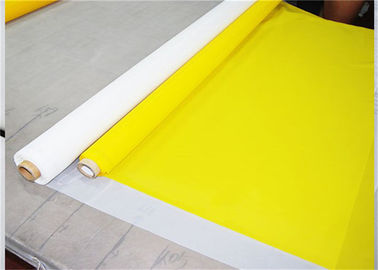

White is generally about 200 head, yellow is more than 250 head, white in the copy is more refraction, will affect the quality of the screen, so the high mesh fine screen are yellow yarn. The higher the mesh, the finer the net, the thicker it is. Printing ink selection of high numbers, printing paste generally selected 100 mesh, or 80 mesh.

Application

Textile printing and dyeing, plate-printing, electronic printing, ceramics, glass, flower paper printing, signs, advertising, Arts and crafts, food, medical and chemical filtration and other industries.

Specification

COUNT (INCH)	COUNT (CM)	DIAMETER (UM)	OPEPING (UM)	OPEN AREA(%)	THICKNESS(UM)	VOLUME (CM³/CM²)	MAX TEN SION(N/CM)
15	6	400	1270	64	720	460	30-60
18	7	350	1078	64	640	410	30-60
20	8	300	950	58	550	319	30-60
25	10	250	750	56	620	347	30-60
30	12	250	583	49	450	220	30-60
30	12	150	683	67	300	201	30-60
40	16	200	425	46	400	184	30-60
50	20	80	420	71	120	85	35-37
50	20	150	350	49	260	127	30-60
60	24	100	316	58	136	78	35-40
60	24	120	297	50	240	120	35-60
73	29	120	225	43	240	103	35-60
80	32	64	248	63	95	59	30-34
80	32	100	212	46	200	92	35-40
85	34	100	195	44	221	97	35-40
90	36	100	178	41	216	88	35-40
100	39	55	200	61	88	53	25-30
100	39	80	176	47	150	70	35-37
110	43	80	153	43	130	56	35-37
120	47	55	158	55	88	48	25-30
120	47	71	142	44	135	59	30-34
135	53	55	133	50	86	43	25-30
135	53	64	125	44	100	44	26-31
150	59	64	105	38	100	38	26-31
160	64	55	101	42	98	41	25-30
160	64	64	92	35	120	42	30-34
180	72	48	91	43	78	66	27-29
180	72	55	84	37	100	37	25-30
200	80	48	77	38	74	28	27-29
195	77	55	75	33	105	34	25-30
230	90	48	63	33	85	28	27-29
250	100	40	60	36	70	25	20-24
280	110	40	51	31	85	26	20-24
305	120	40	43	27	68	18	20-24
355	140	34	37	27	58	15	22-24
380	150	31	36	29	46	13	21-23
420	165	31	30	24	46	11	21-23
460	180	27	28	26	56	14	20-22

Feature advantage

Screen printing can transfer thick ink deposits and create special effects, so 30mesh/inch to 300mesh/inch silk screen printing mesh is widely used to print high quality commercial garments.
Any ink deposits and any ink system are possible with screen printing, so silk screen printing mesh is widely used to print knitted fabric, blankets, silk even coarse denim.
Screen printing offers many superiorities of ink transparency, ink brilliance, various decorative pattern choice, and fast production cycle time, so silk screen printing mesh is preferred for CDs and DVDs printing process.
Silk screen printing mesh is also used for glass printing, such as pharmacy glass appliance, home appliance (microwaves oven), Automotive glass (black mask for the front, side and back windows), glass containers (perfumes, cosmetics, drink bottles).
Screen printing can print the challenging intense colors and ornate decor on ceramics, so silk screen printing mesh is extensively used in the decoration of dishes, tiles, earthenware or fine china.
Silk screen printing mesh is the fastest and most economical method to print printed circuit boards (PCB) solder masks, etching resist, legends and single or multi-layers.
