Home Products

Polyester Screen Printing Mesh

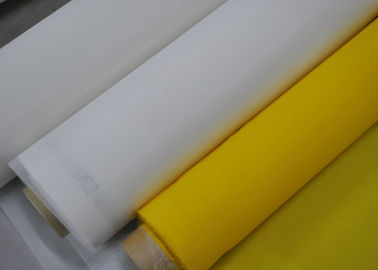

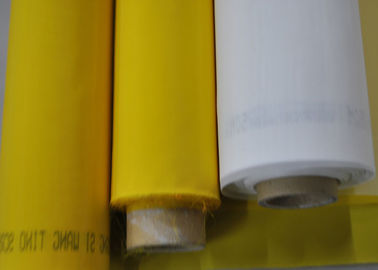

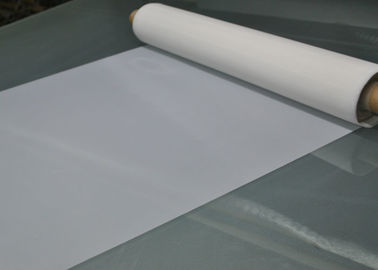

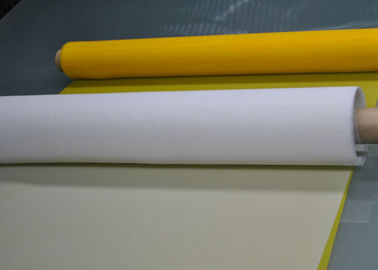

165T-31 Polyester Screen Printing Mesh 30 Micron White Yellow

165T-31 Polyester Screen Printing Mesh 30 Micron White Yellow

165T-31 Polyester Screen Printing Mesh 30 Micron White Yellow

Brand Name:	PFM
Model Number:	PFM-Hel
MOQ:	30meter
Price:	Negotiable
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, ，Trade assurance,Paypal
Supply Ability:	3000meters per week

Detail Information

Product Description

Detail Information

Place of Origin:

Hbei,China

Certification:

FDA

Product Name:

Polyester Screen Printing Mesh

Thread Diameter:

27-400micron

Mesh/inch:

15-460mesh/inch

Weave Way:

Plain

Weave:

1:1

Delivery:

Within 3-7days

Shipping Port:

Tianjin Or Beijing

Color:

White,yellow And Black

Packaging Details:

plastic bag inside, carton case outside,5-10rolls in one carton

Highlight:

screen printing fabric mesh

,

screen printing mesh roll

Product Description

High Tension 165T - 31 Polyester Screen Printing Mesh

Product Specifications

Product Name	Polyester Screen Printing Mesh
Thread Diameter	27-400 micron
Mesh/inch	15-460 mesh/inch
Weave Way	Plain
Weave	1:1
Delivery	Within 3-7 days
Shipping Port	Tianjin or Beijing
Color	White, Yellow and Black

Detailed Specifications

Mesh Count per cm	165
Thread Diameter	31
Color	White / Yellow
Opening Size	30 micron
Width	115cm, 127cm, 136cm, 145cm, 157cm, 165cm, 188cm, 220cm (MAX width 3.65m)

Key Features

High tension threshold and breaking point
High modulus, low elongation monofilament polyester yarn
Resistant to chemicals, abrasion, heat and moisture
Minimal tension loss during stretching process
Improved registration due to stable fabric tension
Good antistatic properties
No surface treatment required

Applications

Widely used in textile printing, T-shirt printing, ceramic printing, glass printing and PCB printing industries.

Technical Specifications

Count (inch)	Count (cm)	Diameter (um)	Opening (um)	Open Area(%)	Thickness(um)	Volume (CM³/CM²)	Max Tension(N/CM)
15	6	400	1270	64	720	460	30-60
420	165	31	30	24	46	11	21-23

Recommended Mesh Sizes

20-40 mesh: Best for glitter inks requiring very open mesh
60 mesh: Ideal for smaller glitter and most shimmer inks
80 mesh: Perfect for shimmer inks, thick ink layers, and foil adhesive
110 mesh: Excellent for white and thick inks, spot color printing
120 mesh: Most common size for white ink and thick viscosity colors
155 mesh: General purpose textile printing with basic to semi-fine detail
200 mesh: Detailed prints requiring thinner ink layers
230-305 mesh: High-end fine detail printing, halftones, and process prints

Production Process

165T-31 Polyester Screen Printing Mesh 30 Micron White Yellow 0

Packaging Details

Mesh rolls in PP bags
2-12 rolls per carton
Waterproof outer bags
Reinforced with package belts

Order Information

Minimum Order Quantity (MOQ): 30 meters (smaller quantities may be possible - please contact us)

Free samples available (max 2 meters) - buyer pays shipping

Customer Support

Pre-Sale Services: Inquiry support, sample testing, factory visits

After-Sale Services: Tracking information, usage training, replacement if dissatisfied

165T-31 Polyester Screen Printing Mesh 30 Micron White Yellow 1
