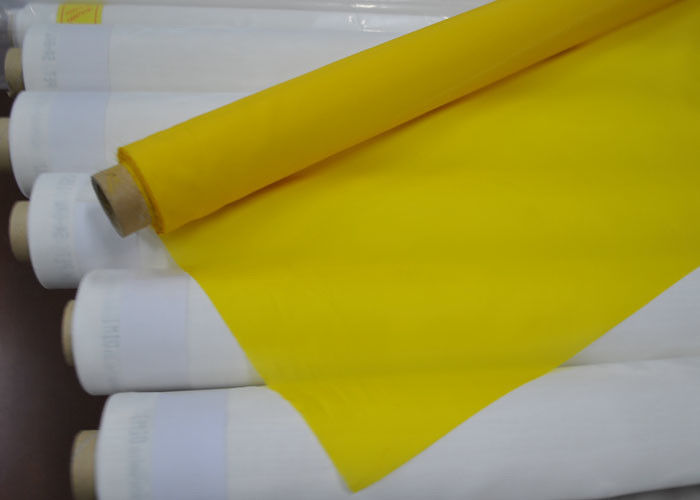

140T NSF Yellow Polyester Screen Printing Mesh for PCB

Brand Name:	PFM
Model Number:	PFM-Hel
MOQ:	30meter
Price:	Negotiable
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, ，Trade assurance,Paypal
Supply Ability:	3000meters per week

Detail Information

Product Description

Detail Information

Place of Origin:

Hbei,China

Certification:

FDA

Product Name:

NSF Test Yellow 65 Inch 140T Polyester Screen Printing Mesh For Printed Circuit Boards Printing

Thread Diameter:

31um

Mesh/inch:

350

Application:

Printed Circuit Boards Printing Screens

Width:

65inch

Packaging Details:

plastic bag inside, carton case outside,5-10rolls in one carton

Highlight:

screen printing fabric mesh

monofilament polyester mesh

Product Description

NSF Test Yellow 65 Inch 140T Polyester Screen Printing Mesh

Product Specifications

Attribute	Value
Product Name	NSF Test Yellow 65 Inch 140T Polyester Screen Printing Mesh For Printed Circuit Boards Printing
Thread Diameter	31μm
Mesh/inch	350
Application	Printed Circuit Boards Printing screens
Width	65inch

Detailed Description

Mesh count per cm	140
Thread diameter	34
Color	White / Yellow
Opening size	37 micron
Width options	115cm, 127cm, 136cm, 145cm, 157cm, 165cm, 188cm, 220cm (Max width: 3.65cm)

Key Features

High tension threshold and breaking point
High modulus, low elongation monofilament polyester yarn
Resistant to chemicals, abrasion, heat and moisture
Minimal tension loss during stretching process
Improved registration due to stable fabric tension
Good antistatic properties
No surface treatment required

Applications

Polyester Screen Printing Mesh is widely used in textile printing, T-shirt printing, ceramic printing, glass printing and PCB printing industry.

Technical Specifications

Highlighted row shows specifications for this particular product

COUNT (INCH)	COUNT (CM)	DIAMETER (UM)	OPENING (UM)	OPEN AREA(%)	THICKNESS(UM)	VOLUME (CM³/CM²)	MAX TENSION(N/CM)
355	140	34	37	27	58	15	22-24

Factory Information

Anping County PFM Screen Co., Ltd is located in the famous "home town of wire mesh" - Anping county industrial park, covering an area of 40,000 square meters with 10,000 grade clean production workshop. We employ 163 people including 56 engineering technical personnel, equipped with world's most advanced polyester screen printing mesh production line.

Optimal Mesh Selection Guide

20-40 mesh: Best for glitter inks requiring very open mesh
60 mesh: Ideal for smaller glitter and most shimmer inks
80 mesh: Suitable for shimmer inks and high-density printing
110 mesh: Excellent for white and thick inks, spot color printing
120 mesh: Most common size for white ink and thick viscosity colors
155 mesh: General purpose textile printing with basic to semi-fine detail
200 mesh: Detailed prints requiring thinner ink layer
230-305 mesh: High-end fine detail printing, halftones and process prints

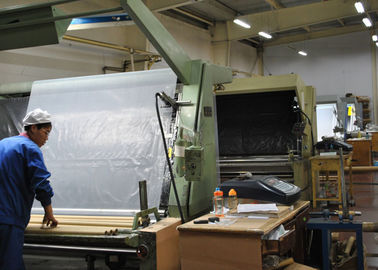

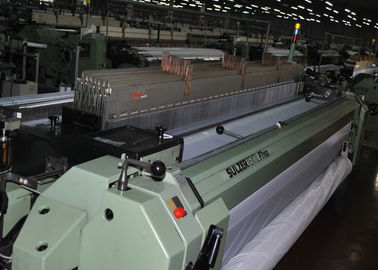

Production Process

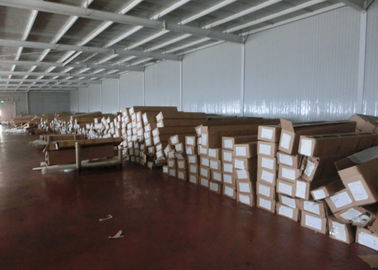

Packaging Details

Mesh rolls in PP bag
2-12 rolls per carton
Waterproof outer bags
Package belt strengthened

Ordering Information

Minimum Order Quantity (MOQ): Typically 30 meters (smaller quantities may be available upon request).

Samples: Free samples up to 2 meters available (buyer pays freight).

Customer Service

Pre-Sale Service

Inquiry and consulting support
Sample testing support
Factory tours available

After-Sale Service

Prompt shipment tracking
Product usage training
Replacement for unsatisfactory products
