| Color: | White,blue,red | Name: | 22903 Polyester Mesh Belt Sludge Dewatering Screen Fabric 100% Monofilament |
|---|---|---|---|
| Hot Search: | Sludge Dewatering Belt | Tension Tolerance: | 0.1KG/cm |
| Features: | Easy To Clean,heat Resistant | Model: | 22903 |
| High Light: | mesh material fabric,woven mesh fabric |
||

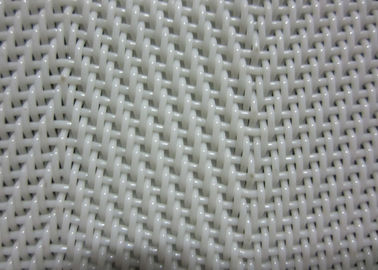

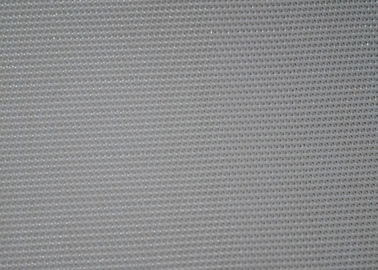

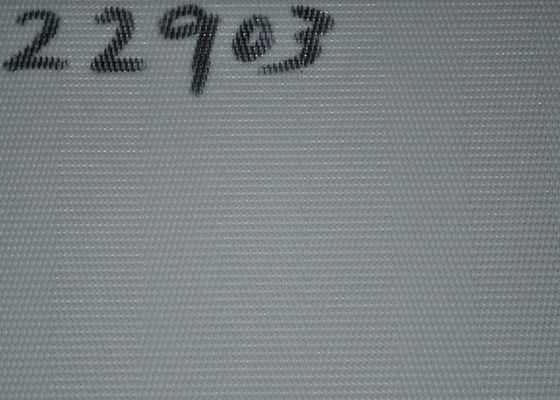

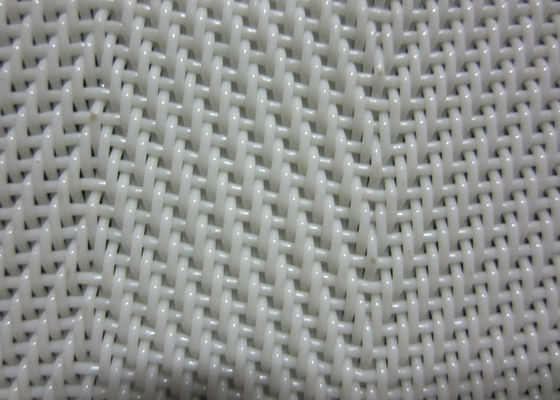

22903 Polyester Mesh Belt Sludge Dewatering Screen Fabric 100% Monofilament
Application:
22903 Polyester Mesh Belt Sludge Dewatering Screen Fabric has features of good aire permeability ,easy to clean,abrasion resistance ,heat resistant njoys the features of air and water permeation,while not allowing the sludge.Due to its unique structure,the sludge will get easily off the belt after filtration. The MAX constant working temperature of sludge dewatering mesh belt is 115ºC , instantaneous high temperature can be 200°C
22903 Polyester Mesh Belt Sludge Dewatering Screen Fabric is widely used in wastewater treatment ,paper and tissue ,coal mining plants and jucie pressing of grapes,fruits.
Specifications of Polyester Mesh Belt Sludge Dewatering Screen Fabric:
| Model | Wire Diameter | Density Root/10cm | Air Permeability m3/m2h | Net Weight g/m2 | Strength kg/cm | Used in | ||
| Wrap | Weft | Wrap | Weft | |||||
| 14803 | 0.7 | 0.8 | 142 | 47-60 | 3900-8500 | 1400 | 240 | Sludge,Squeeze juice |
| 16803 | 0.7 | 0.8 | 156 | 46-50 | 6000 | 1400 | 265 | Sludge,Squeeze juice |
| 16904 | 0.75 | 0.9 | 156 | 47 | 8000 | 1800 | 280 | Iron and steel industry sludge dewatering Living slude dewatering |
| 121054 | 0.9 | 1.05 | 120 | 42 | 8000 | 1650 | 340 | Iron and steel industry sludge dewatering |
| 22903 | 0.5 | 0.9 | 220 | 50-55 | 9000 | 1200 | 200 | Living slude dewatering |
| 20703 | 0.5 | 0.7 | 200 | 70 | 10000 | 1000 | 185 | Living slude dewatering |
| 24504 | 0.5 | 0.5 | 240 | 130-140 | 8500 | 1180 | 220 | Paper dry network |
| 8903 | 0.9 | 0.9 | 78 | 50 | 8500 | 1430 | 210 | industrial sludge dewatering |
| 16704 | 0.7 | 0.7 | 160 | 90 | 12000 | 1350 | 165 | Building materials dewatering |
| 26908 | 0.5 | 0.9 | 26.4 | 69-75 | 5000 | 1364 | 240 | Viscosit of the larger |
| 12 Mesh | 0.75 | 0.8 | 47 | 48 | 650 | 94 | Paper pulp washing | |
Edge treatment of polyester mesh belt:
1. canvas edge treatment
2. glue edge treatment
3. import glue treatment for strict requirement to the edge strength.
4. zip-fastener polyester mesh belt treatment
Shipping and packing:
for sample,we can supply polyester mesh belt for sludge dewatering belt free ,and freight of sample paid by buyer.
for small quantity of polyester mesh belt ,we send them by courier or send by air
for big quantity of polyester mesh belt, usually ship them by sea.
of course ,the shipment ways is decided by customers` requriement.
Ususally we pack them with air bubble film and plastic bag when ship the belt by air, and pack dludge dewatering belt with plywood case if ship by sea.
Texo weaving machine imported from sweden.
Heat shaping processing is very important to the quality of polyester dryer screen,PFM Screen has 100 meter long heat treatment machine,this processing can work under 200ºC temperature with slow speed to make sure the quality of polyester dryer screen.the error is only ±1ºC in the whole heat shapeing processing.
Advanced programming software completes the controlling,
