| Feature: | Anti-Static | Thread Diameter: | 30-150micron |
|---|---|---|---|
| Brand Name: | PFM | Weave Way: | Plain Or Twill |
| Delivery: | Within 3-7days | Mesh Type: | Mesh Fabric |
| Sample: | Free | ||
| High Light: | screen printing fabric mesh,monofilament polyester mesh |
||

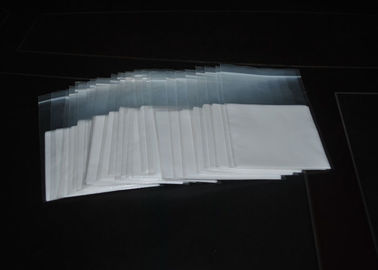

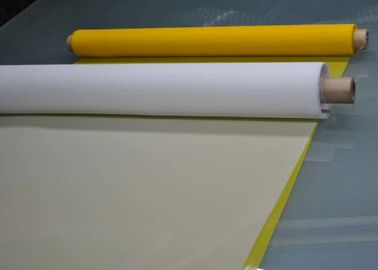

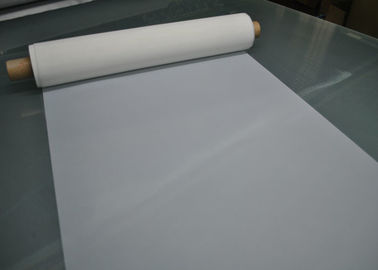

White High Tension Polyester Screen Printing Mesh Fabric For T-shirt Printing
1.Description
High Tension Polyester Screen Printing Mesh with high quality dometic and imported raw material
,advanced weaving looms and test instruments,we can supply the first class polyester and nylon screens.
Polyester mesh is a material that is uniquely suitable for screen printing.The special width is available
as customer's requirement,the width is up to 3.6 meter.
2.Application
Widely used in CD/DVD Printing, Ceramic Decorating printing, Graphic Screen Printing
(GlassContainers, Labels,Large Format UV Graphic, Small Format UV Graphic, Solvent Graphics, Tubes
and Cartridges), Package Printing, Printed Electronics, Printing on Glass, Solar Cell Printing, Textile
Printing, Tableware printing.
3 Specification
| Model | Mesh/cm | Mesh/inch | Aperture | Thread Dia. | Open Area | Thickness | Theoretical Ink |
| (micron) | (micron) | (%) | (micron) | (cm3/m2) | |||
| 10-250 | 10 | 25 | 743 | 250 | 55 | 495 | 274 |
| 12-140 | 12 | 30 | 686 | 140 | 68 | 277 | 189 |
| 13-150 | 13 | 33 | 619 | 150 | 64 | 300 | 128 |
| 16-140 | 16 | 40 | 461 | 140 | 58 | 238 | 139 |
| 21-80 | 21 | 55 | 296 | 80 | 69 | 120 | 79 |
| 21-150 | 21 | 55 | 326 | 150 | 46 | 260 | 118 |
| 22-80 | 22 | 56 | 356 | 80 | 66 | 136 | 90 |
| 24-80 | 24 | 60 | 320 | 80 | 63 | 136 | 86 |
| 24-100 | 24 | 60 | 316 | 100 | 57 | 170 | 65 |
| 28-140 | 28 | 70 | 217 | 140 | 40 | 195 | 76 |
| 32-55 | 32 | 80 | 257 | 55 | 67 | 103 | 67 |
| 32-64 | 32 | 80 | 248 | 64 | 63 | 95 | 56 |
| 32-100 | 32 | 80 | 212 | 100 | 46 | 170 | 73 |
| 36-90 | 36 | 92 | 183 | 90 | 44 | 150 | 65 |
| 39-55 | 39 | 100 | 177 | 55 | 56 | 88 | 55 |
| 43-80 | 43 | 110 | 149 | 80 | 41 | 130 | 53 |
| 47-55 | 47 | 120 | 152 | 55 | 51 | 88 | 48 |
| 48-70 | 48 | 122 | 133 | 70 | 41 | 115 | 47 |
| 53-55 | 53 | 135 | 133 | 55 | 50 | 86 | 42 |
| 54-64 | 54 | 137 | 115 | 64 | 39 | 100 | 39 |
| 54-70 | 54 | 137 | 109 | 70 | 35 | 116 | 40 |
| 61-64 | 61 | 155 | 90 | 64 | 31 | 101 | 30 |
| 64-55 | 64 | 160 | 98 | 55 | 38 | 98 | 36 |
| 64-64 | 64 | 160 | 85 | 64 | 30 | 115 | 34 |
| 68-55 | 68 | 175 | 85 | 55 | 34 | 85 | 28 |
| 68-64 | 68 | 175 | 78 | 64 | 28 | 105 | 30 |
| 72-48 | 72 | 182 | 90 | 48 | 36 | 78 | 33 |
| 72-55 | 72 | 182 | 85 | 55 | 30 | 90 | 27 |
| 80-48 | 80 | 200 | 72 | 48 | 33 | 74 | 25 |
| 90-48 | 90 | 230 | 56 | 48 | 25 | 78 | 19 |
| 100-40 | 100 | 255 | 58 | 40 | 33 | 63 | 21 |
| 110-40 | 110 | 280 | 48 | 40 | 27 | 64 | 17 |
| 120-31 | 120 | 305 | 49 | 31 | 35 | 49 | 17 |
| 120-34 | 120 | 305 | 45 | 34 | 30 | 55 | 16 |
| 130-34 | 130 | 330 | 40 | 34 | 27 | 55 | 15 |
| 140-31 | 140 | 355 | 36 | 31 | 26 | 48 | 12 |
| 140-34 | 140 | 355 | 31 | 34 | 20 | 53 | 10 |
| 150-31 | 150 | 380 | 32 | 31 | 23 | 49 | 11 |
| 150-34 | 150 | 380 | 23 | 34 | 13 | 55 | 6.5 |
| 165-31 | 165 | 420 | 23 | 31 | 15 | 48 | 7 |
4.Feature advantage
1. Faster turnaround time from the screen room to the pressroom
2. Good diathermancy
3. High air permeability
4. Acid resistance and Alkali resistance
5. Long working life
6. Hard wear
7. Three factories for manufacturing
8. Imported weaving machines from Switzerland and Italy
