| Material: | Polyester | Thread Diameter: | 30-150micron |
|---|---|---|---|
| Mesh/inch: | 40-600mesh/inch | Technical: | Weave |
| Weave Way: | Plain Or Twill | Weave: | 1:1 2:2 |
| Delivery: | Within 3-7days | Shipping Port: | Tianjin Or Beijing |
| Sample: | Free | ||
| High Light: | screen printing mesh roll,monofilament polyester mesh |
||

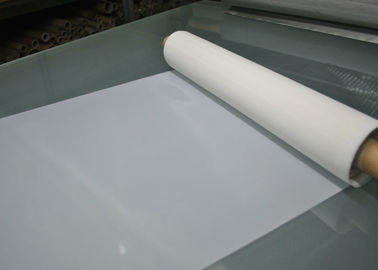

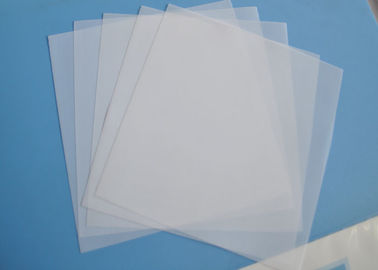

100%Monofilament Polyester Screen Printing Mesh Used For Display Printing
1. Description
| Product Name | Polyester Screen Printing Mesh |
| Material | 100% Polyester |
| Use chinese yarn and imported yarn from Japan. | |
| The material can be customer request | |
| Mesh Count | 10T-165T (15-420Mesh) |
| Aperture | 31 micron -1300micron |
| Thread Dia. | 31micron - 400 micron |

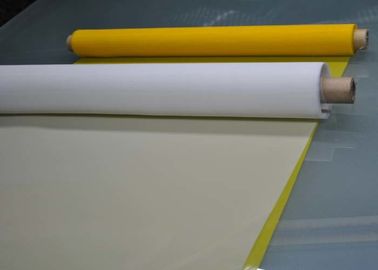

| Color | White( 15-180mesh count/inch) & Yellow (200-420mesh count/inch) |
| Width | max-width 365cm(144"); |
| Length | 20 to 50m, The max can be 1000m |
| MOQ | 1square meter |
| Used | T-shirt printing, Garment printing, Graphics printing, Ceramics, Glass, Cosmetic Bottles, |
| Printed circuit boards and so on... |
2. Application
Polyester screen printing mesh is widely used in textile printing,glass,ceramic,ads,banners, magazines printing,and also used in electronic PCB circuit boards,plate making,and electronic display screen printing.
It used for filter also very good,such as ink filter,aviation, aerospace, petrochemical and other high-tech fields of melt filter,etc.
3 Specification
| Model | Mesh/cm | Mesh/inch | Aperture | Thread Dia. | Open Area | Thickness | Theoretical Ink |
| (micron) | (micron) | (%) | (micron) | (cm3/m2) | |||
| 10-250 | 10 | 25 | 743 | 250 | 55 | 495 | 274 |
| 12-140 | 12 | 30 | 686 | 140 | 68 | 277 | 189 |
| 13-150 | 13 | 33 | 619 | 150 | 64 | 300 | 128 |
| 16-140 | 16 | 40 | 461 | 140 | 58 | 238 | 139 |
| 21-80 | 21 | 55 | 296 | 80 | 69 | 120 | 79 |
| 21-150 | 21 | 55 | 326 | 150 | 46 | 260 | 118 |
| 22-80 | 22 | 56 | 356 | 80 | 66 | 136 | 90 |
| 24-80 | 24 | 60 | 320 | 80 | 63 | 136 | 86 |
| 24-100 | 24 | 60 | 316 | 100 | 57 | 170 | 65 |
| 28-140 | 28 | 70 | 217 | 140 | 40 | 195 | 76 |
| 32-55 | 32 | 80 | 257 | 55 | 67 | 103 | 67 |
| 32-64 | 32 | 80 | 248 | 64 | 63 | 95 | 56 |
| 32-100 | 32 | 80 | 212 | 100 | 46 | 170 | 73 |
| 36-90 | 36 | 92 | 183 | 90 | 44 | 150 | 65 |
| 39-55 | 39 | 100 | 177 | 55 | 56 | 88 | 55 |
| 43-80 | 43 | 110 | 149 | 80 | 41 | 130 | 53 |
| 47-55 | 47 | 120 | 152 | 55 | 51 | 88 | 48 |
| 48-70 | 48 | 122 | 133 | 70 | 41 | 115 | 47 |
| 53-55 | 53 | 135 | 133 | 55 | 50 | 86 | 42 |
| 54-64 | 54 | 137 | 115 | 64 | 39 | 100 | 39 |
| 54-70 | 54 | 137 | 109 | 70 | 35 | 116 | 40 |
| 61-64 | 61 | 155 | 90 | 64 | 31 | 101 | 30 |
| 64-55 | 64 | 160 | 98 | 55 | 38 | 98 | 36 |
| 64-64 | 64 | 160 | 85 | 64 | 30 | 115 | 34 |
| 68-55 | 68 | 175 | 85 | 55 | 34 | 85 | 28 |
| 68-64 | 68 | 175 | 78 | 64 | 28 | 105 | 30 |
| 72-48 | 72 | 182 | 90 | 48 | 36 | 78 | 33 |
| 72-55 | 72 | 182 | 85 | 55 | 30 | 90 | 27 |
| 80-48 | 80 | 200 | 72 | 48 | 33 | 74 | 25 |
| 90-48 | 90 | 230 | 56 | 48 | 25 | 78 | 19 |
| 100-40 | 100 | 255 | 58 | 40 | 33 | 63 | 21 |
| 110-40 | 110 | 280 | 48 | 40 | 27 | 64 | 17 |
| 120-31 | 120 | 305 | 49 | 31 | 35 | 49 | 17 |
| 120-34 | 120 | 305 | 45 | 34 | 30 | 55 | 16 |
| 130-34 | 130 | 330 | 40 | 34 | 27 | 55 | 15 |
| 140-31 | 140 | 355 | 36 | 31 | 26 | 48 | 12 |
| 140-34 | 140 | 355 | 31 | 34 | 20 | 53 | 10 |
| 150-31 | 150 | 380 | 32 | 31 | 23 | 49 | 11 |
| 150-34 | 150 | 380 | 23 | 34 | 13 | 55 | 6.5 |
| 165-31 | 165 | 420 | 23 | 31 | 15 | 48 | 7 |
4.Feature advantage
Our Polyester screen printing mesh use100% high quality monofilament material,
It has high precision and stable tension characteristics, and excellent demensional stability,
makes the printing process will not deviation,it also ensure that the degree of ultra high strength
and low elongation,can greatly prolong the service life of the screen mesh.
In addition it has the heat resistant, high temperature resistant, wear resistant characteristics.
