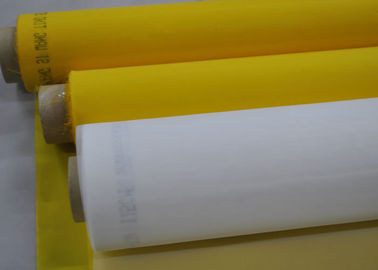

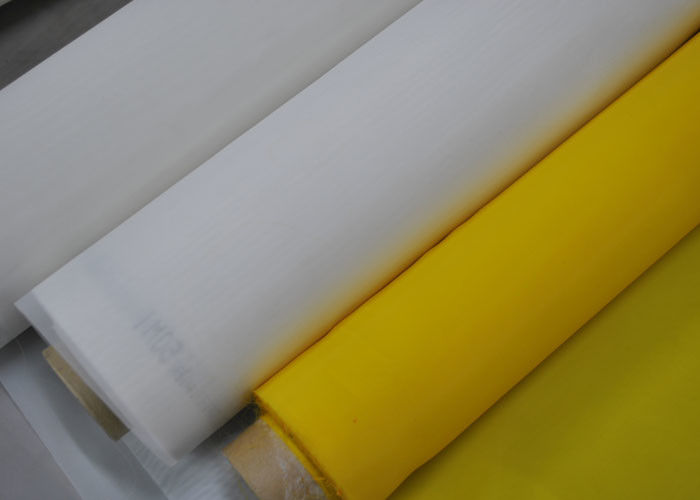

62 Inch 110T Polyester Screen Printing Mesh for Electronics

Brand Name:	PFM
Model Number:	PFM-Hel
MOQ:	30meter
Price:	Negotiable
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, ，Trade assurance,Paypal
Supply Ability:	3000meters per week

Detail Information

Product Description

Detail Information

Place of Origin:

Hbei,China

Certification:

FDA

Product Name:

SGS Certificate 62 Inch 110T Polyester Screen Printing Mesh For Electronics Printing

Thread Diameter:

40micron

Mesh/inch:

280

Color:

White,yellow,black

Apllication:

Electronics Printing Mesh

Wide:

62 Inch

Packaging Details:

plastic bag inside, carton case outside,5-10rolls in one carton

Highlight:

screen printing fabric mesh

screen printing mesh roll

Product Description

62 Inch 110T Polyester Screen Printing Mesh for Electronics Printing (SGS Certified)

Product Specifications

Attribute	Value
Product Name	SGS Certified 62 Inch 110T Polyester Screen Printing Mesh for Electronics Printing
Thread Diameter	40 micron
Mesh per Inch	280
Color Options	White, Yellow, Black
Primary Application	Electronics Printing
Width	62 inch

Key Features

High tension threshold and breaking point
High modulus, low elongation monofilament polyester yarn
Resistant to chemicals, abrasion, heat and moisture
Minimal tension loss during stretching process
Improved registration due to stable fabric tension
Excellent antistatic properties
No surface treatment required

Applications

Our polyester screen printing mesh is widely used in:

Textile printing
T-shirt printing
Ceramic printing
Glass printing
PCB printing industry

Technical Specifications

Highlighted row shows specifications for this product (280 mesh/inch, 110 mesh/cm)

Count (inch)	Count (cm)	Diameter (µm)	Opening (µm)	Open Area (%)	Thickness (µm)	Volume (cm³/cm²)	Max Tension (N/cm)
280	110	40	51	31	85	26	20-24

Manufacturer Information

Anping County PFM Screen Co., Ltd is located in Anping County Industrial Park, known as the "hometown of wire mesh." Our facility covers 40,000 square meters with a 10,000-grade clean production workshop of 1,500 square meters. We employ 163 staff including 56 engineering technicians.

Our production line includes:

Switzerland 330 cm P7100 gripper loom
German intelligent electronic sectional warping machines
Automatic heat setting machines
Advanced washing equipment
Comprehensive testing facilities

Production Process

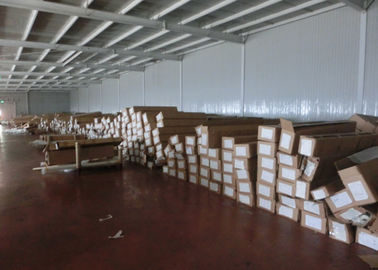

Packaging Details

Mesh rolls in PP bags
2-12 rolls per carton
Waterproof outer bags
Reinforced with package belts

Ordering Information

Minimum Order Quantity: Typically 30 meters (smaller quantities may be available - please contact us)

Samples: Free samples up to 2 meters available (customer pays shipping)

Mesh Selection Guide

20-40 mesh: Ideal for glitter inks requiring very open mesh
60 mesh: Best for smaller glitter and most shimmer inks
80 mesh: Excellent for shimmer inks and high-density printing
110 mesh: Perfect for white and thick inks with good coverage
155 mesh: General purpose textile printing with basic detail
280 mesh (this product): Superior for high-end fine detail and halftone printing
