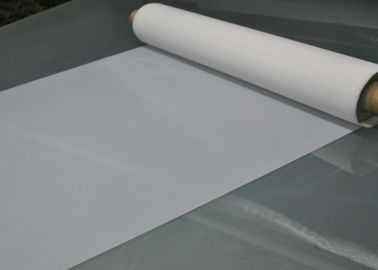

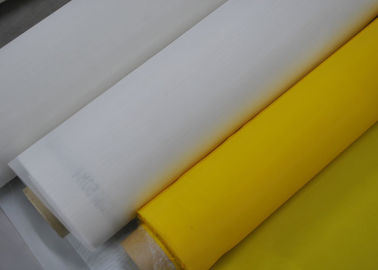

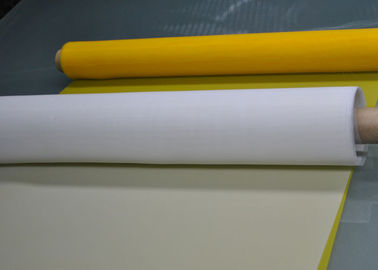

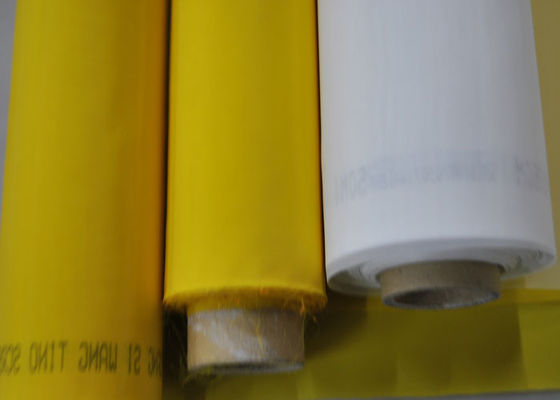

High Tension 165T - 31 Polyester Screen Printing Mesh For Screen Printing

Large Image : High Tension 165T - 31 Polyester Screen Printing Mesh For Screen Printing

Product Details:

Place of Origin:	Hbei,China
Brand Name:	PFM
Certification:	FDA
Model Number:	PFM-Hel

Payment & Shipping Terms:

Minimum Order Quantity:	30meter
Price:	Negotiable
Packaging Details:	plastic bag inside, carton case outside,5-10rolls in one carton
Delivery Time:	5-10days
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, ，Trade assurance,Paypal
Supply Ability:	3000meters per week

Contact Now

Detailed Product Description

Product Name:	Polyester Screen Printing Mesh	Thread Diameter:	27-400micron
Mesh/inch:	15-460mesh/inch	Weave Way:	Plain
Weave:	1:1	Delivery:	Within 3-7days
Shipping Port:	Tianjin Or Beijing	Color:	White,yellow And Black
High Light:	screen printing fabric mesh , screen printing mesh roll

High Tension 165T - 31 Polyester Screen Printing Mesh For Screen Printing

Description

name	165T - 31 Polyester Screen Printing Mesh For Screen Printing
mesh count per cm	165
thread diameter	31
color	white / yellow
opening size	30 micron
width	115cm,127cm,136cm,145cm,157cm,165cm,188cm,220cm and MAX width can be 3.65cm.

Features of polyester screen printing mesh:

High tension threshold and breaking point
high modulus,low elongation monofilament polyester yarn
Resist to chemicals, abrasion, heat and moisture
Minimal tension loss during stretching process
Improved registration due to stable fabric tension
Good antistatic
No surface treatment

Application

Polyester Screen Printing Mesh is widely used in Textile printing,T-shirt printing,ceramic printing,glass printing and PCB printing industry.

Specification of polyester screen printing mesh

COUNT (INCH)	COUNT (CM)	DIAMETER (UM)	OPEPING (UM)	OPEN AREA(%)	THICKNESS(UM)	VOLUME (CM³/CM²)	MAX TEN SION(N/CM)
15	6	400	1270	64	720	460	30-60
18	7	350	1078	64	640	410	30-60
20	8	300	950	58	550	319	30-60
25	10	250	750	56	620	347	30-60
30	12	250	583	49	450	220	30-60
30	12	150	683	67	300	201	30-60
40	16	200	425	46	400	184	30-60
50	20	80	420	71	120	85	35-37
50	20	150	350	49	260	127	30-60
60	24	100	316	58	136	78	35-40
60	24	120	297	50	240	120	35-60
73	29	120	225	43	240	103	35-60
80	32	64	248	63	95	59	30-34
80	32	100	212	46	200	92	35-40
85	34	100	195	44	221	97	35-40
90	36	100	178	41	216	88	35-40
100	39	55	200	61	88	53	25-30
100	39	80	176	47	150	70	35-37
110	43	80	153	43	130	56	35-37
120	47	55	158	55	88	48	25-30
120	48	70	138	44	135	59	30-34
135	53	55	133	50	86	43	25-30
135	54	64	121	44	100	44	26-31
150	61	64	100	38	100	38	26-31
160	64	55	101	42	98	41	25-30
160	64	64	92	35	120	42	30-34
180	72	48	91	43	78	66	27-29
180	72	55	84	37	100	37	25-30
200	80	48	77	38	74	28	27-29
195	77	55	75	33	105	34	25-30
230	90	48	63	33	85	28	27-29
250	100	40	60	36	70	25	20-24
280	110	40	51	31	85	26	20-24
305	120	40	43	27	68	18	20-24
305	120	31	52	35	49	17	21-23
305	120	34	49	30	55	16	22-24
355	140	31	40	26	48	12	21-23
355	140	34	37	27	58	15	22-24
380	150	31	36	29	46	13	21-23
380	150	34	33	13	55	6.5	22-24
420	165	31	30	24	46	11	21-23
460	180	27	28	26	56	14	20-22

Tips of Best polyester screen printing mesh for work:

20 and 40 mesh is used mostly for glitter inks that need a very open mesh for printing.
60 mesh is usually used for printing smaller glitter and most shimmer inks.
80 mesh is also used for printing shimmer inks and for laying down thick layers of ink for high-density printing. It also works well for printing foil adhesive.
110 mesh makes printing white and other thick inks easy. It is ideal for spot color printing since it holds less detail than 155 mesh and lays down a thick layer of ink for maximum coverage.
120 mesh is one of the most rifely mesh sizes in screen printing. It works great for printing white ink and other colored inks that have a thicker viscosity.
155 mesh is great for general purpose textile printing with basic to semi-fine detail. It will hold a little finer detail than a 110 mesh while also working well with thinner inks.
200 mesh is great for printing more detailed prints that need a thinner layer of ink than a 155 mesh. It works very well with thinner inks and is a good middle-range mesh size.
230 mesh is great for high-end fine detail printing. A 230 mesh can hold halftones very well and also lets a little more ink through then a 305 mesh. The yellow color prevents light from reflecting through the threads of the mesh and keeps a sharper image when burning.
280 mesh screens are great for high-end fine detail printing. A 280 mesh can hold halftones very well and also lets a little more ink through then a 305 mesh.
305 mesh holds extremely high detail, letting through only a thin layer of ink. This allows for a very soft hand on the garment and is great for use in printing halftones and process prints. The yellow color prevents light from reflecting through the threads of the mesh and keeps a sharper image when burning.

Production processing of polyester screen printing mesh:
