Metal Flat Wire Honeycomb Mesh Chain Driven Conveyor Belt for Laser Cutting Industries

Brand Name:	PFM
Model Number:	PFM-CB158
MOQ:	1meter
Price:	Negotiable
Payment Terms:	L/C, T/T, Western Union, ,Paypal,Trade assurance
Supply Ability:	300 meter per month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

SGS

Material:

Stainless Steel, Carbon Steel

Flat Wire Pitch:

12.7mm

Rod Pitch:

25.4mm

Rod Diameter:

5mm

Flat Wire Size:

1.2mm*14.1mm

Sample:

Available

Packaging Details:

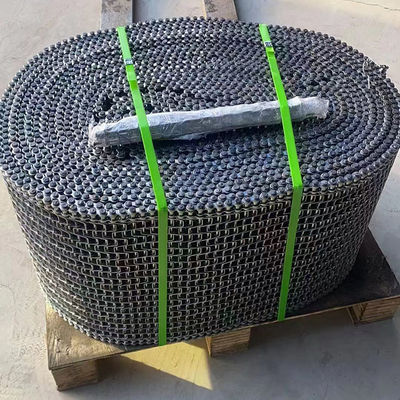

Plastic bag inside and plywood case outside or according to your need.

Product Description

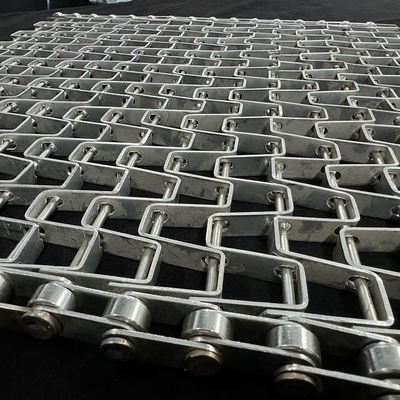

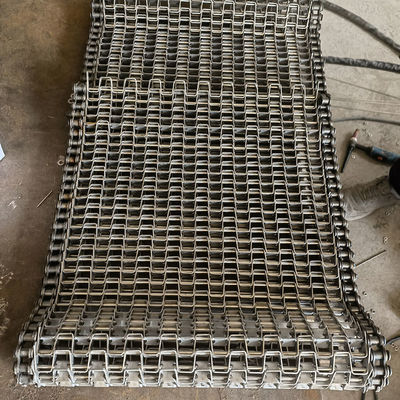

Metal Flat Wire Honeycomb Mesh Chain Driven Conveyor Belt for Laser Cutting Industries

Description :

Flat wire conveyor belt is also called honeycomb conveyor belt,flat plate conveyor belt.The flat plates are arrange in the form of latice and joined with the straight rods.Customers could require the chain or side plate or chain&side plate attached to fiat wire conveyor belt's two sides.The side plate will avoid goods falling down,chain will drive the belt.

Features :

The positive sprocket drive ensures stable running.
Larger open area ensures high air permeability
the belt can be easily washed
Because the belt has smooth surface,it can carry unstable products
CFW can be used for the curved conveyor

Applications :

Conveyor machines
Frying facilities
Annealing furnaces
Refrigeration facilities
Cleaning machines
Drying ovens
Food transport
Baking
Cooling and freezing
Steaming and drying

Specification :

Material	stainless steel , carbon steel
Width	customized
Length	customized
Flat wire pitch	12.7 14 15 16 18 24 25.4 mm
Rod pitch	13.7 19.05 25.4 27 mm
Rod diameter	3.0 4.0 5.0 mm
Flat wire size	1.2x9.5 1.2x14.1 1.5x12.7 1.5x14.1 mm
