310 Stainless Steel Honeycomb Conveyor Belt For Baking And Freezing

Brand Name:	Comesh
Model Number:	CAR-00610
MOQ:	10 meters
Price:	USD35 per meter
Payment Terms:	T/T, Western Union,
Supply Ability:	200 meters per months

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

FDA

Name:

Stainless Steel Honeycomb Conveyor Belt Flat Wire Conveyor Belt For Baking And Freezing

Material:

Stainless Steel 304,316,310

Thickness:

0.5mm-3mm

Feature:

Wear Resistant, Heat Resistant, Acid Resistant

Belt Type:

Sprockets Driven Directly

Chain Pitch:

19.05 / 25.4 / 31.75 / 38.1 / 50.8 / 76.2 / 101.6 Mm

Rod Diameter:

5 / 6 / 8 / 10 / 12 Mm

Packaging Details:

plastic bag inside wooden case outside

Highlight:

310 ss honeycomb conveyor belt

baking honeycomb conveyor belt

freezing wire mesh conveyor belt

Product Description

Stainless Steel Honeycomb Conveyor Belt Flat Wire Conveyor Belt For Baking and Freezing

Stainless Steel Honeycomb Conveyor Belt Flat Wire Conveyor Belt For Baking and Freezing description:

Honeycomb metal conveyor belt / flat wire conveyor belt / frying Belts are constructed from cross rods and a flat metal strip. At the sides of the belt the cross rods have a welded ring (welded edges). In a number of dimensions it is possible to give the sides of the belt a clinged edge. There are a number of predefined belt executions with different pitches and material dimensions. The belt can also be provided with side plates or flights. The belt width is determined by the belt specification and the number of odd spaces.

Name	Stainless Steel Honeycomb Conveyor Belt Flat Wire Conveyor Belt For Baking and Freezing
Material	Stainless steel 304,316,310,314S
Plate thickness	0.5mm-3mm
Width	0.5m-5m
Driven type	Sprockets driven directly

Stainless Steel Honeycomb Conveyor Belt Flat Wire Conveyor Belt For Baking and Freezing advantage:

Stainless steel flat wire conveyor belt is made by stainless steel slat . it is joint by more than 3mm shaft . Nets hole clearance is big .Heat resistance, Surface smooth . operation agile , extra long life, heavy load capacity and for tougher conditions .

Stainless Steel Honeycomb Conveyor Belt Flat Wire Conveyor Belt For Baking and Freezing products:

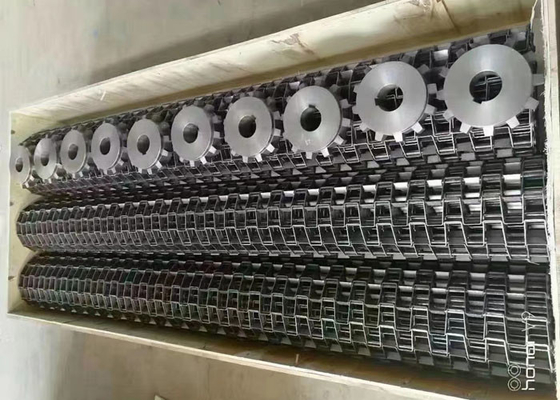

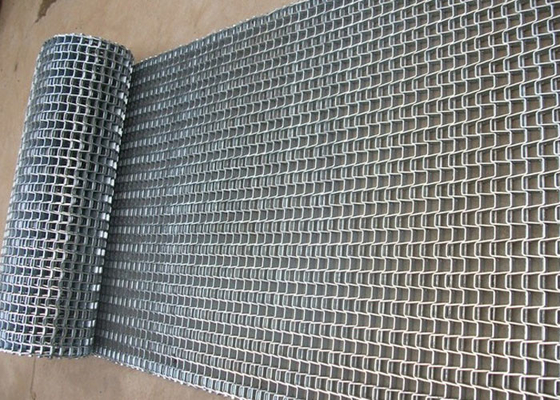

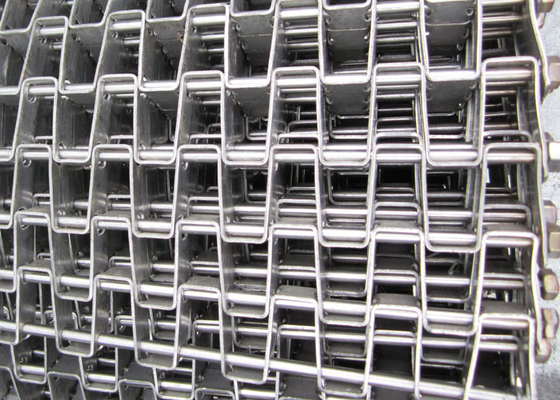

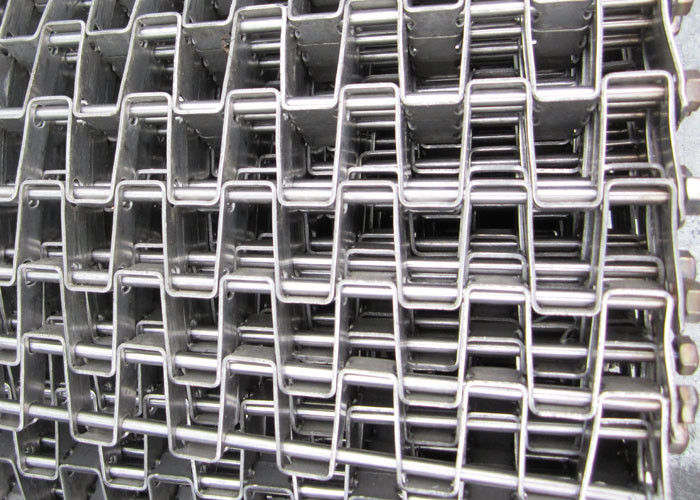

310 Stainless Steel Honeycomb Conveyor Belt For Baking And Freezing 0

310 Stainless Steel Honeycomb Conveyor Belt For Baking And Freezing 1

310 Stainless Steel Honeycomb Conveyor Belt For Baking And Freezing 2

310 Stainless Steel Honeycomb Conveyor Belt For Baking And Freezing 3
