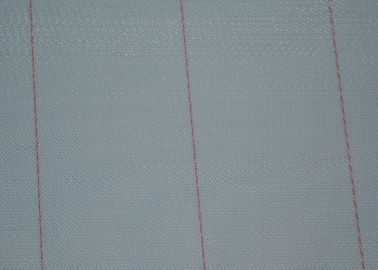

High Stretch Woven Mesh Fabric Abrasion Resistance For Wastewater Treatment

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  High Stretch Woven Mesh Fabric Abrasion Resistance For Wastewater Treatment

Product Details:
Place of Origin: Hebei,China
Brand Name: PFM
Certification: SGS
Model Number: PFM-Hel
Payment & Shipping Terms:
Minimum Order Quantity: 5 Square Meter
Price: Negotiable
Packaging Details: Plastic Bag Inaide And Plywood Case Outside
Delivery Time: 3-5 Working Days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal,Trade Assurance
Supply Ability: 2000 Square Meters Per Quarter
Detailed Product Description
Color: White,Red Name: White 27254 Polyester Dryer Screen Forming Fabric Paper Dryer Mesh
Hot Search: Polyester Dryer Screen Forming Mesh Tension Tolerance: 0.1KG/cm
Material: 100% Polyester Monofilament Model Type: 27254
High Light:

stretch mesh fabric

,

polyester mesh fabric

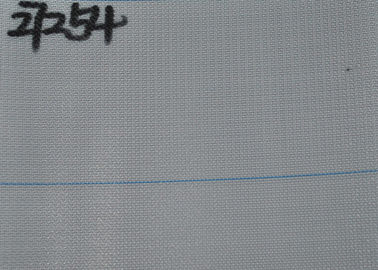

                         White 27254 Polyester Dryer Screen Forming Fabric Paper Dryer Mesh



Polyester Dryer Screen Forming Fabric Paper Dryer Mesh classification:

according to weave type: Polyester Dryer Screen belt can be devided into 3 shed,4shed,3-shed polyester dryer screen is suitable for drying papers less than 70g and 4-shed polyester dryer screen fabric is suitable for drying papers more than 70g


according to the form type:polyester forming fabric mesh can be devided into one and a half layer,double layer.

according to thread type:round wire polyester dryer screen and flat wire polyester dryer screen.
Flat wire dryer screen fabric is suitable for the fore hearing box of the drying zone



Description



White 27254 Polyester Dryer Screen Forming Fabric Paper Dryer Mesh has features of good air permeability,easy to clean,the  constant working temperature can be 115°C ,and instantaneous high temperature can be 180-220°C.



Polyester Dryer Screen is of abrasion resistantce and long life service,waterprrof.






Specificaitons of  polyester dryer screen for paper drying:



Polyester Dryer Screen Forming Fabric Paper Dryer Mesh
Weave type Model

Thread diameter

(mm)

Density



(NO./cm)

strength

(N/cm)

Thickness

(mm)

Air permeability

(APm³/m²h)

warp weft warp weft
4-shed single layer dryer screen 27254 0.2 0.25 30 22 ≥600 0.49 8000
27254-1 0.2 0.25 30 23 ≥600 0.495 7500
27254-2 0.2 0.25 30 24 ≥600 0.50 7000
27274 0.2 0.27 30 21.5 ≥600 0.51 7800
27274-1 0.2 0.27 30 22.5 ≥600 0.515 7300
31204 0.18 0.2 35 28 ≥600 0.43 7500
31201-1 0.18 0.2 35 30 ≥600 0.43 7000
31204-2 0.18 0.2 35 30.5 ≥600 0.43 6500
5-shed single layer dryer screen 28205 0.2 0.2 30 27.5 ≥600 0.46 6800
30205 0.17 0.2 32 28.5 ≥500 0.41 7100
30175 0.17 0.17 32 29.5 ≥500 0.39 6600
31215 0.2 0.21 35 32 ≥600 0.48 7000
8-shed single layer dryer screen 25358 0.22 0.35 28 19.5 ≥700 0.85 9000
25388 0.22 0.38 29.5 19 ≥700 0.87 8500
27358 0.22 0.35 29 20 ≥700 0.85 8500
27388 0.22 0.38 31.5 19 ≥700 0.87 8000
7-shed double layer dryer screen 50207 0.2 0.20/0.22 54.7 36.6 ≥800 0.71 5800
0.22(t66)
56177 0.17 0.17/0.20 60 48 ≥800 0.635 5200
0.22(t66)
57177 0.17 0.17/0.22 65.7 49.6 ≥800 0.635 4550
0.22(t66)
64177 0.15 0.17/0.17 70 50 ≥800 0.59 5200
0.17(t66)
8-shed double layer dryer screen 56188 0.17 0.18/0.20 61.3 51.2 ≥850 0.65 5700
0.20(t66)
60188 0.18 0.19/0.20 66 49 ≥900 0.68 4750
0.20(t66)
62188 0.15 0.16/0.19 70.5 50.5 ≥900 0.60 6200
0.19(t66)
Weave type model Thread diameter(mm) Density(No.s/cm) Air permeability (m³/m²h)
wap Weft(top/bottom) warp weft
16-shed two and a half layer dryer screen CXW324016 0.28 0.20,0.27/0.40,0.40 37-38 40-41 6000
CXW344156 0.28 0.20,0.27/0.45,0.45 37-38 31-32 6000
CXW384016 0.22 0.22,0.27/0.40,0.40 43-44 40-41 7500
CXW434106-1 0.20 0.20,0.25/0.40,0.40 48-49 42-43 7000
CXW434106-2 0.20 0.20,0.25/0.40,0.4 48-49 45-46 6200
CXW602016-1 0.17 0.13,0.17/0.20,0.20 68-69 57-58 5500
CXW602016-2 0.17 0.13,0.17/0.20,0.20 38-69 61-62 5600
CXW603216-1 0.17 0.13,0.18/0.23,0.23 68-69 55-56 6000
CXW603216-2 0.17 0.13,0.18/0.23,0.23 68-69 55-56 6500
CXW602516-1 0.17 0.13,0.18/0.25,0.25 68-69 51-52 6500
CXW602516-2 0.17 0.13,0.18/0.25,0.25 68-69 61-62 4200
CXW603016-1 0.17 0.13,0.20/0.30,0.30 68-69 55-56 5000
CXW603016-2 0.17 0.13,0.20/0.30,0.30 68-69 58-59 4200
CXW603516 0.17 0.13,0.20/0.35,0.35 68-69 46-47 7500
CXW603516-1 0.17 0.13,0.20/0.35,0.35 68-69 49-50 6500
CXW603516-2 0.17 0.13,0.20/0.35,0.35 68-69 52-53 5500
CXW603516-3 0.17 0.13,0.20/0.35,0.35 68-69 54-55 5000
CXW603516-4 0.17 0.13,0.20/0.35,0.35 68-69 55-56 4500
CXW603516-5 0.17 0.13,0.20/0.35,0.35 68-69 56-57 4000

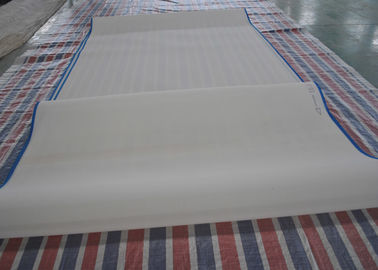

Packing and shipping:



Polyester Dryer Screen for paper drying can be shiped by courier,by air and by sea.



Usually we pack polyester dryer screen with air bubble film,if ship by sea, it will be packed with plywood case.






Edge treatment of polyester dryer screen:

1. canvas  edge treatment
2. glue edge treatment
3. import glue treatment for strict requirement to the edge strength.
4. zip-fastener polyester mesh belt treatment


Texo weaving machine imported from sweden.

Heat shaping processing is very important to the quality of polyester dryer screen,PFM Screen has 100 meter long heat treatment machine,this processing can work under 200ºC temperature with slow speed to make sure the quality of polyester dryer screen.the error is only ±1ºC in the whole heat shapeing processing.

Advanced programming software completes the controlling,
