| Name: | Black Unti UV Small Loop Polyester Spiral Mesh Conveyor Belt | Hot Search: | Black Polyester Mesh Belt |
|---|---|---|---|
| Weave Type: | Small Loop | Application: | As Conveyor For Food Processing |
| Wire Diameter: | 0.52,0.7mm | Type: | 3252 |
| High Light: | mesh material fabric,woven mesh fabric |
||

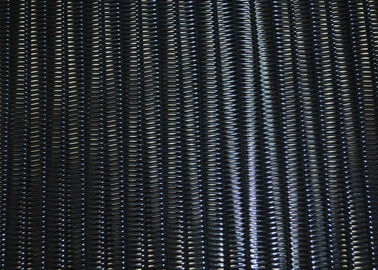

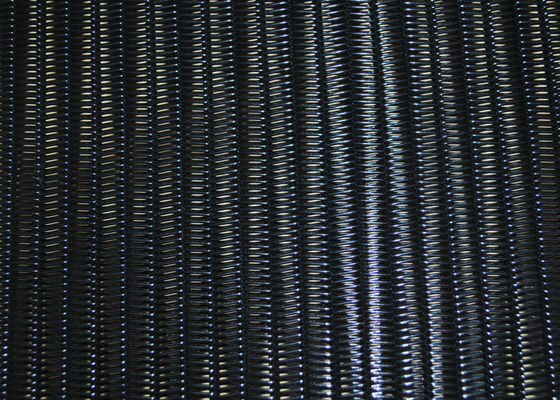

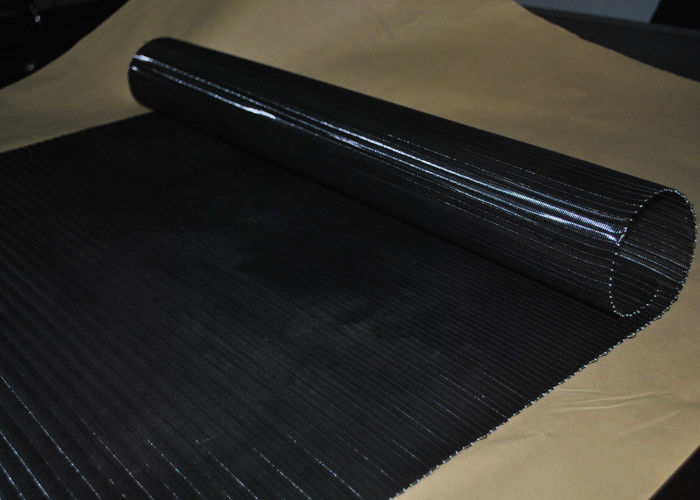

Black Unti UV Small Loop Polyester Spiral Mesh Conveyor Belt
Features of Polyester Spiral Mesh Conveyor Belt:
Application
Small Loop Polyester Spiral Mesh Conveyor Belt is used for paper making machine,drying process of printing and dyeing,dewatering sludge from quarries or mine,juicing press,conveyor belt in food processing.
Description:
Small Loop Polyester Spiral Mesh Conveyor Belt Processing with loop is also called polyester spiral wire mesh belt,Spirl wire dryer screen.
According to loops size:Polyester Mesh can be devided into large loop Polyester Spiral Mesh Belt,Medium Spiral Wire Mesh Belt,Small Loop Wire Mesh Belt.
According to stuff:Polyester Mesh Belt can be devided into Polyester Spiral Mesh Belt and Polyester Spiral Mesh Belt with Stuff,which is polyester wire,which can be added into the loop,the numbers of the wire can be 3,4,5.

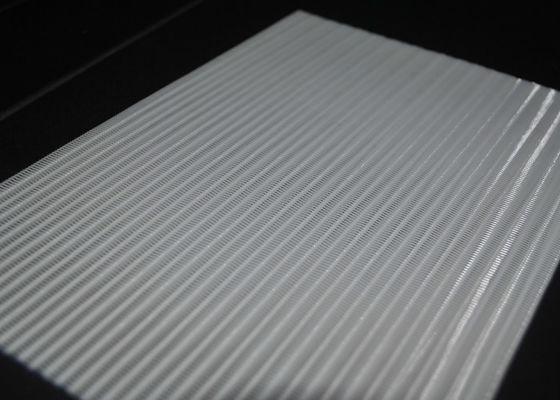

According to color,Polyester Mesh Belt can be devided into white,blue,red and black.
Small Loop Polyester Spiral Mesh Conveyor Belt with stuff,this kind of polyester dryer screen belt is filled with stuff to reduce the air permeability and to intensive the opening ,then to reduce the material loss from the opening.
Small Loop Polyester Spiral Mesh Conveyor Belt with Stuff is mainly used in sludge desiccation,paper pulp washing,coal washing,chemicals,dehydration of wine bran,vinegar bran dehydration and other industries.It is better in the high ventilation part of drying part of paper-making machines.
| Polyester Spiral Dryer Mesh Belt | |||||
| Weaving Type | Model | Thread Diameter | Air permeability | ||
| (mm) | (m3/m2h) | ||||
| Warp | Weft | filled with stuff | |||
| Large Loop | 4070 | 0.9 | 1.1 | 0.9*4 | 5500±500 |
| 0.9*5 | 4500±500 | ||||
| Medium Loop | 3868 | 0.7 | 0.9 | 0.8*3 | 4750±500 |
| 0.8*4 | 4200±500 | ||||
| Small Loop | 3252 | 0.52 | 0.7 | 0.68*3 | 15000±500 |
Specification of polyester spiral mesh belt without stuff:
| Polyester Spiral Dryer Conveyor Wire Mesh Belt | ||||
| Weaving Type | Model | Thread Diameter | Air permeability | |
| (mm) | (m3/m2h) | |||
| Warp | Weft | |||
| Large Loop | 4070 | 0.9 | 1.1 | 20000±500 |
| Medium Loop | 3868 | 0.7 | 0.9 | 18500±500 |
| Small Loop | 3252 | 0.52 | 0.7 | 15000±500 |
How to connect the two end of spiral wire mesh belts:
Usually the edge of polyester Spiral mesh belt is treated with glue,which is food grade.
Texo weaving machine imported from sweden.
Heat shaping processing is very important to the quality of polyester Mesh Belt ,PFM Screen has 100 meter long heat treatment machine,this processing can work under 200ºC temperature with slow speed to make sure the quality of polyester dryer screen.the error is only ±1ºC in the whole heat shapeing processing.
Advanced programming software completes the controlling,
Packing and shipping:
Polyester Spiral Wire Mesh Belt can be shiped by courier,by air and by sea.
Usually we pack polyester dryer screen with air bubble film,if ship by sea, it will be packed with plywood case.
