Plain Weave 0.50mm Nylon Screen Mesh Fabric For Tea Industry , 0.2mm-0.75mm

China Plain Weave 0.50mm Nylon Screen Mesh Fabric For Tea Industry , 0.2mm-0.75mm supplier
Plain Weave 0.50mm Nylon Screen Mesh Fabric For Tea Industry , 0.2mm-0.75mm supplier Plain Weave 0.50mm Nylon Screen Mesh Fabric For Tea Industry , 0.2mm-0.75mm supplier Plain Weave 0.50mm Nylon Screen Mesh Fabric For Tea Industry , 0.2mm-0.75mm supplier

Large Image :  Plain Weave 0.50mm Nylon Screen Mesh Fabric For Tea Industry , 0.2mm-0.75mm

Product Details:

Place of Origin: Hebei,China
Brand Name: PFM
Certification: SGS,FDA
Model Number: PFM-Hel

Payment & Shipping Terms:

Minimum Order Quantity: 5 square meter
Price: negotiable
Packaging Details: plastic bag inside, plywood case outside
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 2000 square meter per month
Contact Now
Detailed Product Description
Name: 09502 0.50mm Polyester Mesh Belt Dryer Screen For Tea Industry Material: 100% Polyester Monofialment
Hot Search: 09502 Polyester Mesh Belt Wire Diameter: 0.2mm-0.75mm
Weave Type: Plain Weave Model: 09502

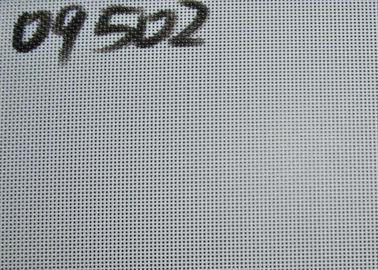

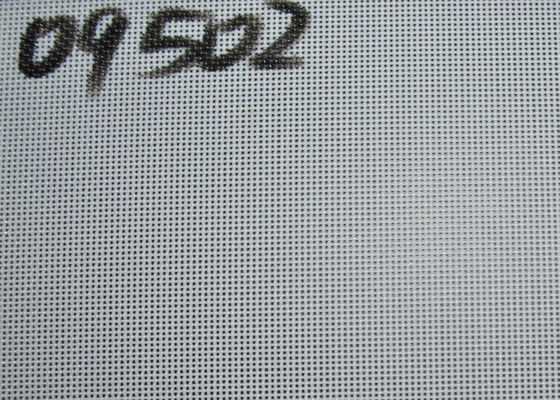

09502 0.50mm Polyester Mesh Belt Dryer Screen For Tea Industry​​





Features of Polyester Mesh Belt Leaner Screen:



  • hard wearing
  • flat surface
  • good air permeability
  • stable property
  • long lifespan.

Application of 09502 polyester mesh belt Linear Screen:



Polyester Linear Screen Mesh Belt is widely used in mining sieving,paper pulps making,sulplate pulp packing,mineralseparation,benefication,fiberboard plants.



Polyester Dryer Mesh Screen is also used for tailings disposal,colliery,food and medicine.



Specifications of   Polyester Plain Weave fabric Mesh Belt

Polyester Plain Weave fabric Mesh Belt
Weaving Type Model Thread Diameter Density(No.s/cm) Srength Air Permeability
(mm) (N/cm) (m3/m2h)
Warp Weft Warp Weft
2-shed plain weaving fabric 5802 0.75 0.8 4.7-5 4.8-5 940 20000
5102 1 1 4.7-5.2 4.3-5 1600 15000
6702 0.7 0.7 8 7 1600 11000
7102 0.7 1 6.6-7 4.3-4.6 1100 15000
8552 0.55 0.55 7.5-8 8.5-9 850 850-6500
9452 0.45 0.45 10 8.6 1600 16000
9502 0.5 0.5 8.5-9 10-10.5 750 10000
12502 0.5 0.5 13.5 8.5 1800 6500
3-shed plain weaving fabric 8603 0.5 0.6 10 9 1600 14000
8903 0.9 0.9 7.8-8 5-5.5 2100 7500-8500
7803 0.7 0.8 8 8 1600 10000
20353 0.3 0.35 22 14.5 1200 13000
20403 0.3 0.4 22 14.5 1200 13500

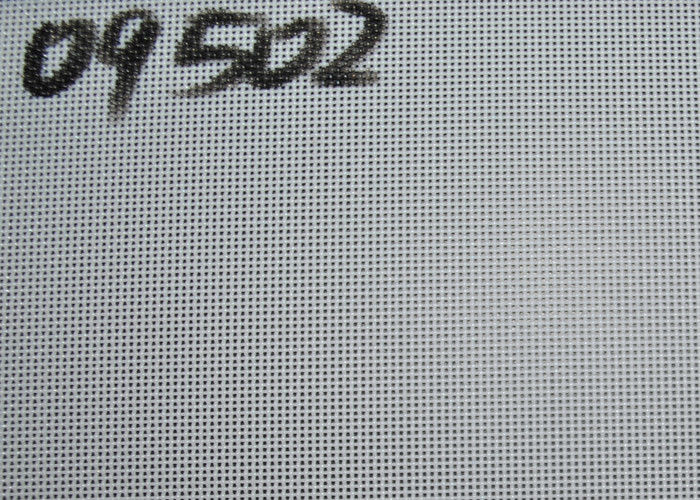

Discription of White 09502 Polyester Mesh  Belt 100% Monofilament for Food and Medicine:



1. the opening size can be 400 micron,500micron,600micron,700micron,800micron,1000micron,1500micron,1800micron,2000micron,2500micron and 3000micron.



2. the width of polyester dryer screen mesh is usually 1 meter - 6 meter,the length is available as per requirement

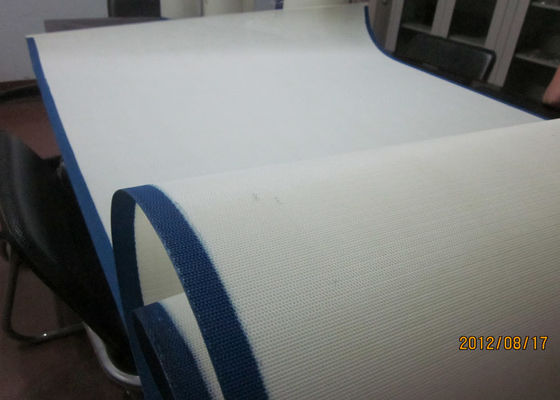

3. edge treatment:the edge of polyester mesh dryer belt can be sealed with glue and cavans

To make sure extra belt durability,polyester Dryer Screen mesh edge treated with glue and cavans.



Plain Weave 0.50mm Nylon Screen Mesh Fabric For Tea Industry , 0.2mm-0.75mm

4. the joining type of 05802 polyester mesh Dryer belt can be endless,steel pin joining,spiral ring joining and pin ring joining.



Endless Seam make sure the seaming points has the same airpermeabilty and strength with the whole belt



Steel pin,pin ring and spiral ring seam are designed for easy and rapid installation.

Plain Weave 0.50mm Nylon Screen Mesh Fabric For Tea Industry , 0.2mm-0.75mm



Texo weaving machine imported from sweden.

Heat shaping processing is very important to the quality of polyester plain weave mesh screen,PFM Screen has 100 meter long heat treatment machine,this processing can work under 200ºC temperature with slow speed to make sure the quality of polyester dryer screen.the error is only ±1ºC in the whole heat shapeing processing.

Advanced programming software completes the controlling,

Plain Weave 0.50mm Nylon Screen Mesh Fabric For Tea Industry , 0.2mm-0.75mm

Packing and shipping:



Polyester Plain Weave Belt can be shiped by courier,by air and by sea.



Usually we pack polyester dryer screen with air bubble film,if ship by sea, it will be packed with plywood case.

Plain Weave 0.50mm Nylon Screen Mesh Fabric For Tea Industry , 0.2mm-0.75mm

Plain Weave 0.50mm Nylon Screen Mesh Fabric For Tea Industry , 0.2mm-0.75mm
