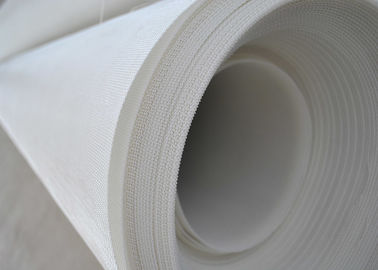

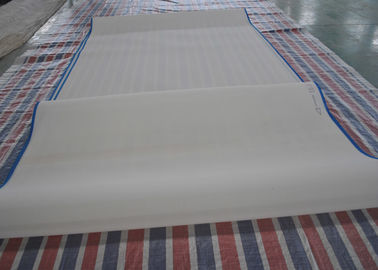

4- Shed Polyester Mesh Fabric Single Layer For Paper Drying Machine

4- Shed Polyester Mesh Fabric Single Layer For Paper Drying Machine
4- Shed Polyester Mesh Fabric Single Layer For Paper Drying Machine 4- Shed Polyester Mesh Fabric Single Layer For Paper Drying Machine 4- Shed Polyester Mesh Fabric Single Layer For Paper Drying Machine

Large Image :  4- Shed Polyester Mesh Fabric Single Layer For Paper Drying Machine

Product Details:
Place of Origin: Hebei,China
Brand Name: PFM
Certification: SGS
Model Number: PFM-Hel
Payment & Shipping Terms:
Minimum Order Quantity: 5 Square Meter
Price: Negotiable
Packaging Details: Plastic Bag Inaide And Plywood Case Outside
Delivery Time: 3-5 Working Days
Payment Terms: L/C, T/T, Western Union, ,Paypal,Trade Assurance
Supply Ability: 2000 Square Meters Per Quarter
Detailed Product Description
Color: White,Red Name: 31204 Polyester Mesh Belt 4-shed Single Layer Fabric For Paper Drying Machine
Hot Search: Polyester Mesh Belt Screen Tension Tolerance: 0.1KG/cm
Material: 100% Polyester Monofilament Model Type: 31204
High Light:

stretch mesh fabric

,

polyester mesh fabric

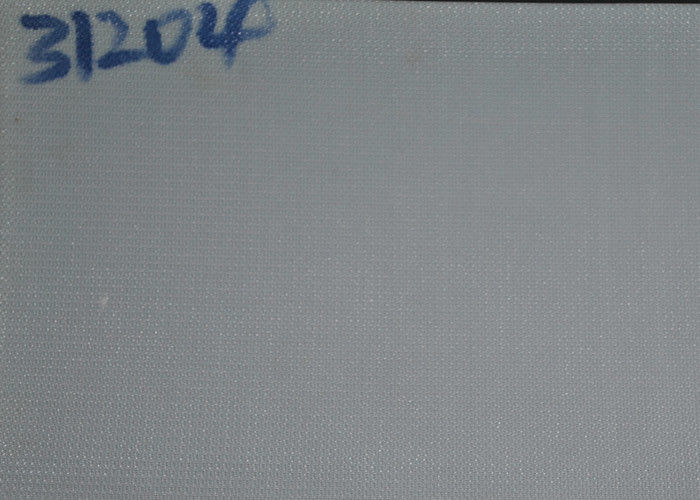

                         31204 Polyester Mesh Belt 4-shed Single Layer Fabric for Paper Drying Machine



Polyester Mesh Fabric Layer Fabric classification:

Paper making Polyester Mesh Fabric Layer Fabric can be divided into 4-shed, 5-shed, 8-shed, 16-shed, 24-shed according to the weaving type. Single layer, double layer, two-and a half layer fabric and triple-layer fabric are the three common Items.




4-shed and 5-shed series single layer polyester forming fabrics mesh belt are the two widely used polyester forming fabric in paper making, mainly used for producing cultural paper (single glue, double glue and color glue), printing paper, glazed paper, packing paper, common newsprint. Suitable for common fourdrinier paper machine.

8-shed single layer polyester mesh screen belt is suitable for kraft paper, cardboard , corrugated paper making. Also could be used for producing common printing paper. Suitable for common fourdrinier paper machine.

8-shed double layer polyester mesh fabric is suitable for producing quality printing paper. For example ,dictionary paper, offset printing paper, newsprint and wrap paper. It can be used for tissue paper making and the surface pulp, lining pulp, core pulp and bottom pulp of the board paper etc. Suitable for medium and high speed paper making machine.


16-shed double and a half layer polyester forming mesh belt fabric is suitable for producing quality printing paper, such as offset printing paper, copper plate paper, newsprint and cigarette paper series (wrap paper and filter tips paper), Also is could be used for producing toilet paper, tissue paper and surface pulp, lining pulp, core pulp and bottom pulp of the board paper etc. Suitable for medium and high speed paper making machine.




Multi-shed three-layer polyester fabric is suitable for producing quality printing paper, tissue paper and cigarette paper etc. Suitable for high speed paper making machine.



Description



Polyester Dryer Screen Forming Fabric Paper Dryer Mesh has features of good air permeability,easy to clean,the  constant working temperature can be 115°C ,and instantaneous high temperature can be 180-220°C.



Polyester Dryer Screen is of abrasion resistantce and long life service,waterprrof.






Specificaitons of  polyester forming fabric for paper drying:



polyester forming fabric for paper drying
Weave type Model

Thread diameter

(mm)

Density



(NO./cm)

strength

(N/cm)

Thickness

(mm)

Air permeability

(APm³/m²h)

warp weft warp weft
4-shed single layer dryer screen 27254 0.2 0.25 30 22 ≥600 0.49 8000
27254-1 0.2 0.25 30 23 ≥600 0.495 7500
27254-2 0.2 0.25 30 24 ≥600 0.50 7000
27274 0.2 0.27 30 21.5 ≥600 0.51 7800
27274-1 0.2 0.27 30 22.5 ≥600 0.515 7300
31204 0.18 0.2 35 28 ≥600 0.43 7500
31201-1 0.18 0.2 35 30 ≥600 0.43 7000
31204-2 0.18 0.2 35 30.5 ≥600 0.43 6500
5-shed single layer dryer screen 28205 0.2 0.2 30 27.5 ≥600 0.46 6800
30205 0.17 0.2 32 28.5 ≥500 0.41 7100
30175 0.17 0.17 32 29.5 ≥500 0.39 6600
31215 0.2 0.21 35 32 ≥600 0.48 7000
8-shed single layer dryer screen 25358 0.22 0.35 28 19.5 ≥700 0.85 9000
25388 0.22 0.38 29.5 19 ≥700 0.87 8500
27358 0.22 0.35 29 20 ≥700 0.85 8500
27388 0.22 0.38 31.5 19 ≥700 0.87 8000
7-shed double layer dryer screen 50207 0.2 0.20/0.22 54.7 36.6 ≥800 0.71 5800
0.22(t66)
56177 0.17 0.17/0.20 60 48 ≥800 0.635 5200
0.22(t66)
57177 0.17 0.17/0.22 65.7 49.6 ≥800 0.635 4550
0.22(t66)
64177 0.15 0.17/0.17 70 50 ≥800 0.59 5200
0.17(t66)
8-shed double layer dryer screen 56188 0.17 0.18/0.20 61.3 51.2 ≥850 0.65 5700
0.20(t66)
60188 0.18 0.19/0.20 66 49 ≥900 0.68 4750
0.20(t66)
62188 0.15 0.16/0.19 70.5 50.5 ≥900 0.60 6200
0.19(t66)
Weave type model Thread diameter(mm) Density(No.s/cm) Air permeability (m³/m²h)
wap Weft(top/bottom) warp weft
16-shed two and a half layer dryer screen CXW324016 0.28 0.20,0.27/0.40,0.40 37-38 40-41 6000
CXW344156 0.28 0.20,0.27/0.45,0.45 37-38 31-32 6000
CXW384016 0.22 0.22,0.27/0.40,0.40 43-44 40-41 7500
CXW434106-1 0.20 0.20,0.25/0.40,0.40 48-49 42-43 7000
CXW434106-2 0.20 0.20,0.25/0.40,0.4 48-49 45-46 6200
CXW602016-1 0.17 0.13,0.17/0.20,0.20 68-69 57-58 5500
CXW602016-2 0.17 0.13,0.17/0.20,0.20 38-69 61-62 5600
CXW603216-1 0.17 0.13,0.18/0.23,0.23 68-69 55-56 6000
CXW603216-2 0.17 0.13,0.18/0.23,0.23 68-69 55-56 6500
CXW602516-1 0.17 0.13,0.18/0.25,0.25 68-69 51-52 6500
CXW602516-2 0.17 0.13,0.18/0.25,0.25 68-69 61-62 4200
CXW603016-1 0.17 0.13,0.20/0.30,0.30 68-69 55-56 5000
CXW603016-2 0.17 0.13,0.20/0.30,0.30 68-69 58-59 4200
CXW603516 0.17 0.13,0.20/0.35,0.35 68-69 46-47 7500
CXW603516-1 0.17 0.13,0.20/0.35,0.35 68-69 49-50 6500
CXW603516-2 0.17 0.13,0.20/0.35,0.35 68-69 52-53 5500
CXW603516-3 0.17 0.13,0.20/0.35,0.35 68-69 54-55 5000
CXW603516-4 0.17 0.13,0.20/0.35,0.35 68-69 55-56 4500
CXW603516-5 0.17 0.13,0.20/0.35,0.35 68-69 56-57 4000


Packing and shipping:



Polyester Dryer Screen for paper drying can be shiped by courier,by air and by sea.



Usually we pack polyester dryer screen with air bubble film,if ship by sea, it will be packed with plywood case.






Edge treatment of polyester dryer screen:

1. canvas  edge treatment
2. glue edge treatment
3. import glue treatment for strict requirement to the edge strength.
4. zip-fastener polyester mesh belt treatment


Texo weaving machine imported from sweden.

Heat shaping processing is very important to the quality of polyester dryer screen,PFM Screen has 100 meter long heat treatment machine,this processing can work under 200ºC temperature with slow speed to make sure the quality of polyester dryer screen.the error is only ±1ºC in the whole heat shapeing processing.

Advanced programming software completes the controlling,
