100% Monofilament 26808 Polyester Mesh Belt For Sludge Dewatering , Heat Resistant

Certification
China Anping County Comesh Filter Co.,Ltd certification
China Anping County Comesh Filter Co.,Ltd certification
Customer Reviews
Never appear quality problem, timely delivery, very satisfied.

—— Eric

Money and treasures will be plentiful

—— Yee

Integrity enterprises, quality assurance, timely delivery, first-class after-sale.

—— Mario

I'm Online Chat Now

100% Monofilament 26808 Polyester Mesh Belt For Sludge Dewatering , Heat Resistant

100% Monofilament 26808 Polyester Mesh Belt For Sludge Dewatering , Heat Resistant
100% Monofilament 26808 Polyester Mesh Belt For Sludge Dewatering , Heat Resistant 100% Monofilament 26808 Polyester Mesh Belt For Sludge Dewatering , Heat Resistant

Large Image :  100% Monofilament 26808 Polyester Mesh Belt For Sludge Dewatering , Heat Resistant

Product Details:
Place of Origin: Hebei,China
Brand Name: PFM
Certification: SGS
Model Number: PFM-Hel
Payment & Shipping Terms:
Minimum Order Quantity: 5 Square Meter
Price: Negotiable
Packaging Details: Plastic Bag Inaide And Plywood Case Outside
Delivery Time: 3-5 Working Days
Payment Terms: L/C, T/T, Western Union, ,Paypal,Trade Assurance
Supply Ability: 2000 Square Meters Per Quarter
Detailed Product Description
Color: White,blue,red Name: 100% Monofilament 26808 Polyester Mesh Belt For Sludge Dewatering
Hot Search: Polyester Sludge Dewatering Belt Tension Tolerance: 0.1KG/cm
Features: Easy To Clean,heat Resistant Application: Dryer Food
High Light:

mesh material fabric

,

plain weave mesh

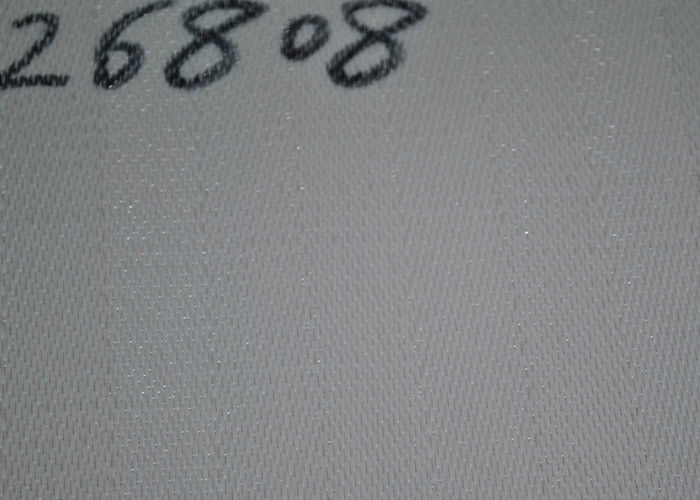

               100% Monofilament 26808 Polyester Mesh Belt For Sludge Dewatering



Application:



100% Monofilament 26808 Polyester Mesh Belt For Sludge Dewatering ​enjoys features of good aire permeability ,easy to clean,abrasion resistance ,heat resistant njoys the features of air and water permeation,while not allowing the sludge.Due to its unique structure,the sludge will get easily off the belt after filtration. The MAX constant working temperature of sludge dewatering mesh belt is 115ºC , instantaneous high temperature can be 200°C


100% Monofilament 26808 Polyester Mesh Belt For Sludge Dewatering is widely used in wastewater treatment ,paper and tissue ,coal mining plants and jucie pressing of grapes,fruits.






Specifications of Polyester Mesh Belt Sludge Dewatering Screen Fabric:

Model Wire Diameter Density Root/10cm Air Permeability m3/m2h Net Weight g/m2 Strength kg/cm Used in
Wrap Weft Wrap Weft
14803 0.7 0.8 142 47-60 3900-8500 1400 240 Sludge,Squeeze juice
16803 0.7 0.8 156 46-50 6000 1400 265 Sludge,Squeeze juice
16904 0.75 0.9 156 47 8000 1800 280 Iron and steel industry sludge dewatering Living slude dewatering
121054 0.9 1.05 120 42 8000 1650 340 Iron and steel industry sludge dewatering
22903 0.5 0.9 220 50-55 9000 1200 200 Living slude dewatering
20703 0.5 0.7 200 70 10000 1000 185 Living slude dewatering
24504 0.5 0.5 240 130-140 8500 1180 220 Paper dry network
8903 0.9 0.9 78 50 8500 1430 210 industrial sludge dewatering
16704 0.7 0.7 160 90 12000 1350 165 Building materials dewatering
26908 0.5 0.9 26.4 69-75 5000 1364 240 Viscosit of the larger
12 Mesh 0.75 0.8 47 48   650 94 Paper pulp washing



Edge treatment of polyester mesh belt:

1. canvas edge treatment
2. glue edge treatment
3. import glue treatment for strict requirement to the edge strength.
4. zip-fastener polyester mesh belt treatment


Texo weaving machine imported from sweden.

Heat shaping processing is very important to the quality of polyester dryer screen,PFM Screen has 100 meter long heat treatment machine,this processing can work under 200ºC temperature with slow speed to make sure the quality of polyester dryer screen.the error is only ±1ºC in the whole heat shapeing processing.

Advanced programming software completes the controlling,





Shipping and packing:



for sample,we can supply polyester mesh belt for sludge dewatering belt free ,and freight of sample paid by buyer.



for small quantity of polyester mesh belt ,we send them by courier or  send by air



for big quantity of polyester mesh belt, usually ship them by sea.



of course ,the shipment ways is decided by customers` requriement.





Ususally we pack them with air bubble film and plastic bag when ship the belt by air, and pack dludge dewatering belt with plywood case if ship by sea.

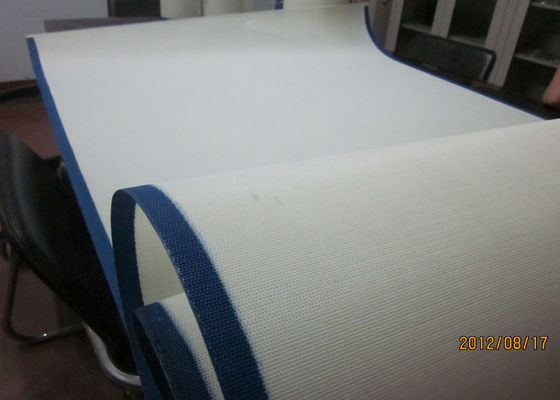

 polyester slduge dewatering belt
