Monofilament Polyester Dryer Screen For Paper Drying / Making , Glue Edge Treatment

Monofilament Polyester Dryer Screen For Paper Drying / Making , Glue Edge Treatment
Monofilament Polyester Dryer Screen For Paper Drying / Making , Glue Edge Treatment Monofilament Polyester Dryer Screen For Paper Drying / Making , Glue Edge Treatment Monofilament Polyester Dryer Screen For Paper Drying / Making , Glue Edge Treatment

Large Image :  Monofilament Polyester Dryer Screen For Paper Drying / Making , Glue Edge Treatment

Product Details:
Place of Origin: Hebei,China
Brand Name: PFM
Certification: SGS
Model Number: PFM-Hel
Payment & Shipping Terms:
Minimum Order Quantity: 5 Square Meter
Price: Negotiable
Packaging Details: Plastic Bag Inaide And Plywood Case Outside
Delivery Time: 3-5 Working Days
Payment Terms: L/C, T/T, Western Union, ,Paypal,Trade Assurance
Supply Ability: 2000 Square Meters Per Quarter
Detailed Product Description
Material: 100%Polyester Weave Type: Plain Weave
Color: White,Red Name: 100% Polyester Monofilament 4106 Polyester Dryer Screen For Paper Drying And Making
Hot Search: Polyester Mesh Belt Tension Tolerance: 0.1KG/cm
High Light:

stretch mesh fabric

,

mesh material fabric

100% polyester monofilament 4106 Polyester Dryer Screen for paper drying and making


Polyester Dryer Screen classification:

according to weave type: Polyester Dryer Screen can be devided into 3 shed,4shed

according to the form type:polyester forming fabric can be devided into one and a half layer,double layer.

according to thread type:round wire polyester dryer fabric and flat wire polyester dryer screen.
Flat wire dryer screen fabric is suitable for the fore hearing box of the drying zone
Specificaitons of  polyester dryer screen:

Polyester Dryer Screen Forming Fabric for Paper Making
Weave typeModel

Thread diameter
(mm)

Dencity

(Number/cm)

strength

(N/cm)

Weight
(KG/M²)

Thickness
(mm)

Air permeability
(APm³/m²h)

warpweftwarpweft
3-shed225030.50.5241220001.061.98000
224530.450.45241320000.991.78500
245030.50.5251220001.11.97000
244530.450.45251320001.021.86700
4-shed205040.50.5221220001.152.015000
225040.50.5241220001.262.112000
245040.50.5261221001.32.111000
185040.50.5201118000.852.08000
Round thread diameter41060.5

0.7
0.3

22.812.422001.31.756800

Flat
Thread diameter

4106-1

0.58
0.37

0.35
0.68

211520001.21.52500
4106-20.58
0.37

0.35
0.68

211420001.21.53000
4106-3

0.58
0.37

0.35
0.68

211320001.21.54000
4106-4

0.58
0.37

0.35
0.68

2113.520001.21.483500


100% polyester monofilament 4106 Polyester Dryer Screen for paper drying and making has the following advantage:

  • Hard-wearing
  • Flat surface
  • Good air permeability
  • Stable property against heat and moisture
  • Less elongation
  • Waterproof
  • woorking temperature is under 115°C
  • Easy to clean
  • abrasion resistance
  • Safe for food processing applications

100% polyester monofilament 4106 Polyester Dryer Screen for paper drying and making Shipping:

  •  For small quantity, shipped by courier.
  •  For large quantity, shiped by air or by sea.
  •  Tracking number will be emailed to you after order has been shipped.
  •  If you have forwarder in China, we can send to your forwarder for free.

3-shed polyester dryer screen is suitable for drying papers less than 70g
4-shed polyester dryer screen fabric is suitable for drying papers more than 70g

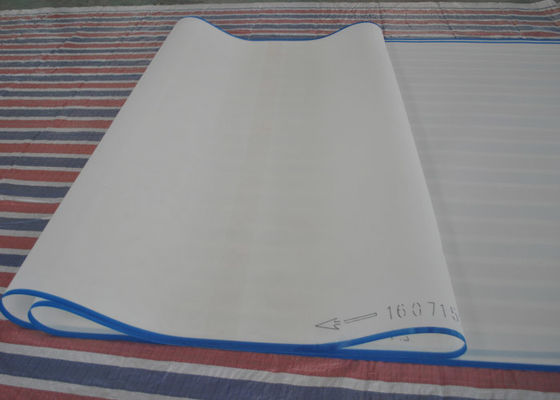

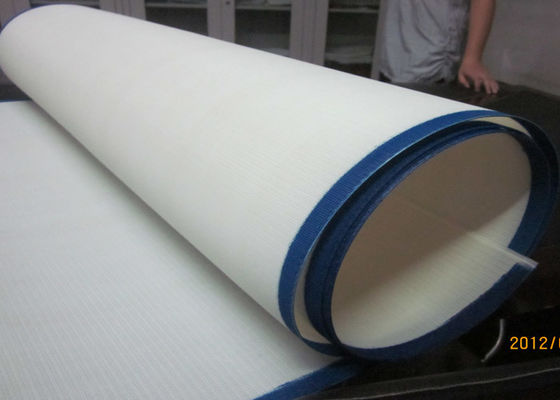

Edge treatment of polyester dryer screen:

1. canvas  edge treatment
2. glue edge treatment
3. import glue treatment for strict requirement to the edge strength.
4. zip-fastener polyester mesh belt treatment

Texo weaving machine imported from sweden.

Heat shaping processing is very important to the quality of polyester dryer screen,PFM Screen has 100 meter long heat treatment machine,this processing can work under 200ºC temperature with slow speed to make sure the quality of polyester dryer screen.the error is only ±1ºC in the whole heat shapeing processing.

Advanced programming software completes the controlling,
