| Product Name: | Carbon Steel Screen Crimped Wire Mesh Sheet For Coal Sifting | Application: | Mine Sieving |
|---|---|---|---|
| Width: | 1m-3m | Length: | 0.2m-30m |
| Hot Search: | Carbon Steel Screen | Feature: | Heavy Duty |
| High Light: | stainless steel mesh screen,stainless steel mesh cloth |
||

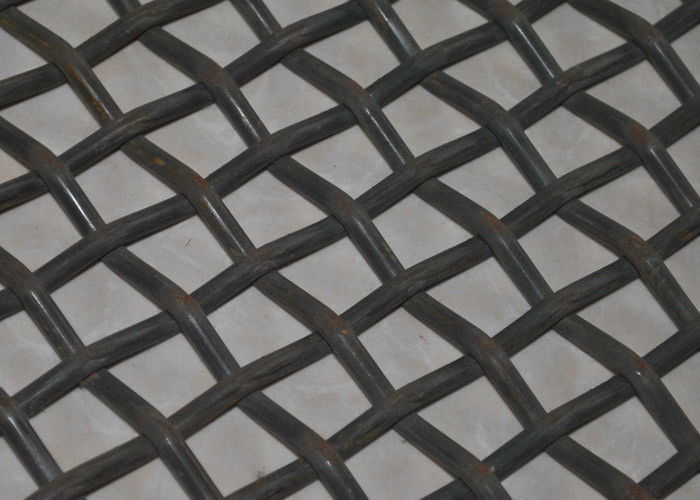

Heavy Duty Carbon Steel Screen Crimped Wire Mesh Sheet for coal sifting
Decription of stainless steel mesh:
| material | high carbon steel wire, low carbon steel wire, galvanized iron wire, galvanized steel wire, non-ferrous metal wire, 65 Mn . |
| features | High temperature resisting, acid resisting, alkali resisting, corrosion resistanting |
| applications | screen in mine, coal factory, industry, architecture, filter a sand grain, filter the liquid and air, also can be used as security fence |
Type of Crimped Wire Mesh Screen:
|
carbon steel crimped wire mesh screen
quarry screen mining screen coal and rock vibrating creen |
 |
| locked weave crimped wire mesh | |
|
rectangle locked weave crimped mesh screen
used for pigs raising |
|
|
single weave crimped mesh fabric
construction and food industry ,also ued in screening and grading of solid materials ,filtering of liquid and quarry, |
|
|
Bi-directional plain weave crimped screen mining,petroleum,chemical,coal factory,railroad bridge |
|
Features of crimped wire mesh for sieving
1. corrosion resistant,stainless steel grade is acid and alkali resistant.
2. high temperature resistant,can bear 800 degree centigrade
3. uniform wire diameter,error is +-2micron
4. stable structure
Specifications of metal crimped wire mesh screen:
| mesh | wire diameter (mm) | opening (mm) | mesh | wire diameter (mm) | opening |
| 3x3 | 1.60 | 6.87 | 20x20 | 0.27 | 1.00 |
| 4x4 | 1.20 | 5.15 | 22x22 | 0.25 | 0.90 |
| 5x5 | 0.95 | 4.13 | 24x24 | 0.23 | 0.83 |
| 6x6 | 0.80 | 3.43 | 26x26 | 0.20 | 0.78 |
| 8x8 | 0.60 | 2.57 | 28x28 | 0.18 | 0.73 |
| 10x10 | 0.50 | 2.04 | 30x30 | 0.15 | 0.70 |
| 12x12 | 0.50 | 1.61 | 35x35 | 0.14 | 0.59 |
| 14x14 | 0.40 | 1.41 | 40x40 | 0.14 | 0.50 |
| 16x16 | 0.35 | 1.24 | 50x50 | 0.12 | 0.39 |
| 18x18 | 0.30 | 1.11 | 60x60 | 0.12 | 0.30 |
Applications of steel crimped wire mesh:
