High Tension Silk Screen Fabric Mesh For Printing Ink , 100% Polyester Monofilament

Certification
China Anping County Comesh Filter Co.,Ltd certification
China Anping County Comesh Filter Co.,Ltd certification
Customer Reviews
Never appear quality problem, timely delivery, very satisfied.

—— Eric

Money and treasures will be plentiful

—— Yee

Integrity enterprises, quality assurance, timely delivery, first-class after-sale.

—— Mario

I'm Online Chat Now

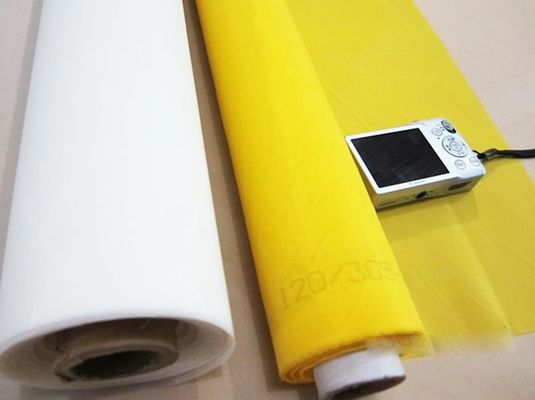

High Tension Silk Screen Fabric Mesh For Printing Ink , 100% Polyester Monofilament

High Tension Silk Screen Fabric Mesh For Printing Ink , 100% Polyester Monofilament
High Tension Silk Screen Fabric Mesh For Printing Ink , 100% Polyester Monofilament High Tension Silk Screen Fabric Mesh For Printing Ink , 100% Polyester Monofilament High Tension Silk Screen Fabric Mesh For Printing Ink , 100% Polyester Monofilament

Large Image :  High Tension Silk Screen Fabric Mesh For Printing Ink , 100% Polyester Monofilament

Product Details:
Place of Origin: Hebei,China
Brand Name: PFM
Certification: FDA
Model Number: PFM-LIS
Payment & Shipping Terms:
Minimum Order Quantity: 1meter
Price: negotiable
Packaging Details: plastic bag inside,2 to 10 rolls in one carton
Delivery Time: in 7 working days
Payment Terms: T/T, Western Union, ,paypal or trade assurance
Supply Ability: 8000 meter per month
Detailed Product Description
Product Name: Silk Screen Printing Mesh For Glass Printing 100% Polyester Monofilament Hot Search: Silk Screen Printing Mesh
Material: 100% Polyester Monofilament Thread Features: Low Elasticity,high Tension,cheaper Than Stainless Steel Mesh
Width: From 115cm To 365cm Length: 30-70meter Per Roll
High Light:

silk screen mesh roll

,

silk bolting cloth

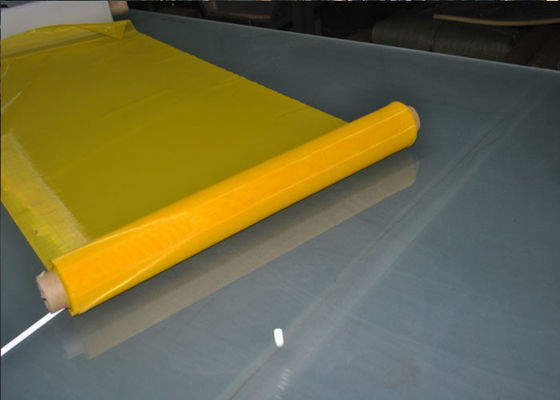

High Tension Yellow Silk Screen Printing Mesh For Printing Ink





Description of yellow silk screen printing



Mesh:250-550mesh/inch

Yellow in the copy of the less refraction than white.

Yellow silk screen printing is more suitable for printing ink than white silk screen printing mesh

Weave way:Twill weave.it is more high tension than yellow mesh



What are the main characteristics of screen printing material for screen printing?

  • ⑤ dry and wet stretch ratio (%) silk network 120 to 134%, nylon mesh 115 "122%, polyester mesh for 100%, stainless steel mesh for 100%.
    ⑥ Tensile recovery rate (%, calculated at 3% extension) Silk mesh 80 - Aluminum material Moment of inertia and steel material inertia moment of 15.088 cm 4 th power, wood frame shape is solid rectangular 5 × 4 cm), the moment of inertia is 41.667 cm 4 times.
    ⑦ density, the unit expressed in grams / cubic centimeters. Wood density of 0.9 g / cm3, steel material density of 7.8 g / cm3, aluminum material density of 2.7 g / cm3.
    ⑧ thermal expansion coefficient (10 '/ ℃). Aluminum material thermal expansion coefficient of 2.410 '/ ℃, steel thermal expansion coefficient of 1.2 10' / ℃, wood thermal expansion coefficient of 3.0 10 '/ ℃.

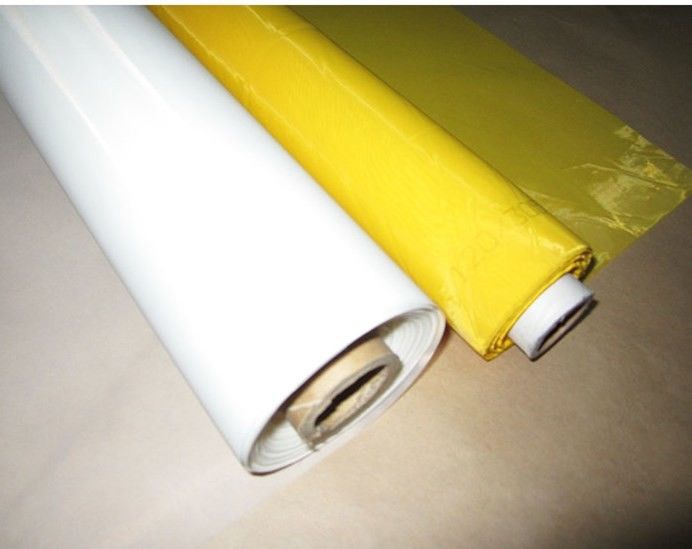

Features of White Silk Screen Printing Mesh:

  • High tension threshold and breaking point
  • high modulus,low elongation monofilament polyester yarn
  • Resist to chemicals, abrasion, heat and moisture
  • Minimal tension loss during stretching process
  • Improved registration due to stable fabric tension
  • Good antistatic
  • No surface treatment



Application of Silk Screen Printing Mesh



  • Textile printing
  • T-shirt printing
  • ceramic printing
  • glass printing
  •  PCB printing industry.



Specification of Silk Screen Printing mesh



COUNT (INCH) COUNT (CM) DIAMETER (UM) OPEPING (UM) OPEN AREA(%) THICKNESS(UM) VOLUME (CM³/CM²) MAX TEN SION(N/CM)
15 6 400 1270 64 720 460 30-60
18 7 350 1078 64 640 410 30-60
20 8 300 950 58 550 319 30-60
25 10 250 750 56 620 347 30-60
30 12 250 583 49 450 220 30-60
30 12 150 683 67 300 201 30-60
40 16 200 425 46 400 184 30-60
50 20 80 420 71 120 85 35-37
50 20 150 350 49 260 127 30-60
60 24 100 316 58 136 78 35-40
60 24 120 297 50 240 120 35-60
73 29 120 225 43 240 103 35-60
80 32 64 248 63 95 59 30-34
80 32 100 212 46 200 92 35-40
85 34 100 195 44 221 97 35-40
90 36 100 178 41 216 88 35-40
100 39 55 200 61 88 53 25-30
100 39 80 176 47 150 70 35-37
110 43 80 153 43 130 56 35-37
120 47 55 158 55 88 48 25-30
120 48 70 138 44 135 59 30-34
135 53 55 133 50 86 43 25-30
135 54 64 121 44 100 44 26-31
150 61 64 100 38 100 38 26-31
160 64 55 101 42 98 41 25-30
160 64 64 92 35 120 42 30-34
180 72 48 91 43 78 66 27-29
180 72 55 84 37 100 37 25-30
200 80 48 77 38 74 28 27-29
195 77 55 75 33 105 34 25-30
230 90 48 63 33 85 28 27-29
250 100 40 60 36 70 25 20-24
280 110 40 51 31 85 26 20-24
305 120 40 43 27 68 18 20-24
305 120 31 52 35 49 17 21-23
305 120 34 49 30 55 16 22-24
355 140 31 40 26 48 12 21-23
355 140 34 37 27 58 15 22-24
380 150 31 36 29 46 13 21-23
380 150 34 33 13 55 6.5 22-24
420 165 31 30 24 46 11 21-23
460 180 27 28 26 56 14 20-22



Application of Silk Screen Printing Mesh



  • Printing mesh for Electronics (Polyester screen mesh is the fastest and most economical method to print printed circuit boards solder masks,etching resist,legends and single or multi-layers
  • Printing mesh for textile. Polyester screen printing mesh can transfer thick ink deposits and creat special effects to make itto be optimal process to print high quality commerical garment.
  • Printing mesh for CDs / DVDs.Many superiorities of ink transparency,ink briliance,various decorative pattern choice are offered by polyester screen printing,and the most important is the fast production cycle time and unaffected disc perfermance.So screen printing is the perferred printing process for CDs and DVDs decoration.
  • Printing mesh for Glass.Pharmacy glass appliance printing / Home appliance printing./ Automotive glass printing. / Glass containers printing
  • Printing mesh for ceramics. Polyester screen printing can print the challenging intense colors and ornate decor on the ceramics.So it is widely used in the decoration of dishes,tiles,earthenware or fine china.

Production processing of Silk Screen Printing Mesh:



High Tension Silk Screen Fabric Mesh For Printing Ink , 100% Polyester Monofilament 0



Packing of Silk Screen Printing Mesh:

  • mesh rolls in a pp bag
  • 2-12rolls per cartons
  • waterproof bags outside
  • package belt strengthen

What is the main process of screen printing? The process is the needle?

The main process of screen printing is: making originals, making screen printing plate, printing, ink drying and so on.





High Tension Silk Screen Fabric Mesh For Printing Ink , 100% Polyester Monofilament 1
