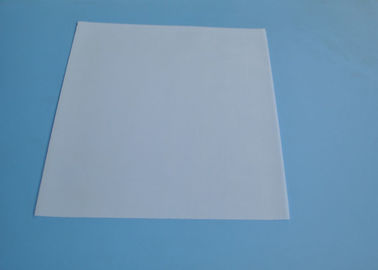

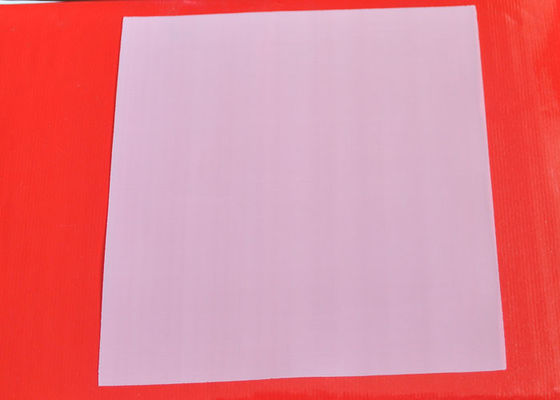

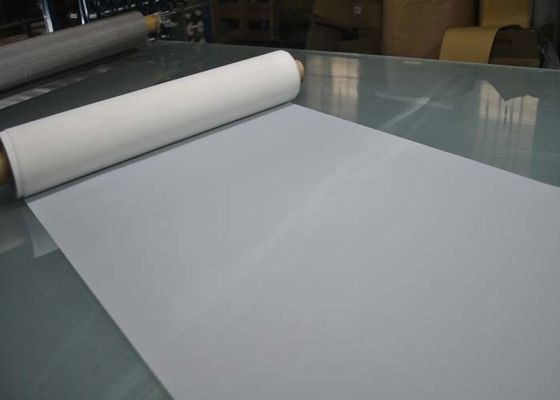

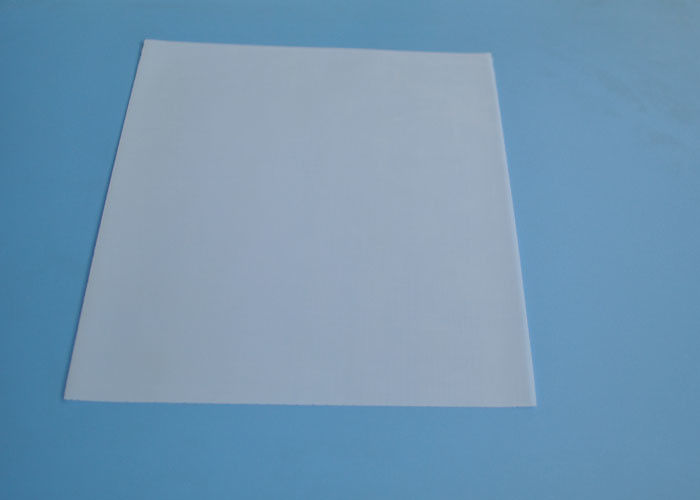

White Or Yellow 300Mesh Polyester Bolting Cloth With Acid Resistance

White Or Yellow 300Mesh Polyester Bolting Cloth With Acid Resistance
White Or Yellow 300Mesh Polyester Bolting Cloth With Acid Resistance White Or Yellow 300Mesh Polyester Bolting Cloth With Acid Resistance White Or Yellow 300Mesh Polyester Bolting Cloth With Acid Resistance White Or Yellow 300Mesh Polyester Bolting Cloth With Acid Resistance

Large Image :  White Or Yellow 300Mesh Polyester Bolting Cloth With Acid Resistance

Product Details:
Place of Origin: Hebei,China
Brand Name: PFM
Certification: FDA
Model Number: PFM-Lyd
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Price: Negotiable
Packaging Details: Plastic bag inside on one roll and carton case outside or cut into small pieces and plastic bag
Delivery Time: 5-8days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, ,Paypal,Trade assurance
Supply Ability: 3000meters per week
Detailed Product Description
Material: 100%Polyester Thread Diameter: 30-150micron
Mesh: 40-400mesh/inch Length: 30-70m/roll Or Cut Into Pieces
Width: 1.15-3.6m Aperture: 23-619micron
Opening: 13-69% Technical: Weave
Weave: 1:1 2:2
High Light:

bolting cloth mesh

,

tensile bolting cloth

               White Or Yellow 300Mesh Polyester Bolting Clothing With Acid







1.Description



Bolting cloth adaptability is very strong, wide range of applications

Bolting cloth can not only monochrome printing, but also can be color and color printing network.

Bolting cloth products, light resistance than other types of printed products, light fastness, more suitable for outdoor advertising, signs of the use.

Bolting cloth can be a large area of printing, today's screen printing products up to 3 meters × 4 meters, or even greater.

The weaving way has plain weave and twill weave.The plain weave has the characteristics of high printing precision, and the twill has its high tension.



2.Application of bolting cloth



Bolting cloth network is widely used in printing electronic PCB circuit board; printing plate, printing textiles, glass, ceramics, printing advertising, banners, magazines, printed electronic display, used to make glass shielding network, filter ink for aviation, Petrochemical and other high-tech field of melt filtration



3.Specification



COUNT (INCH) COUNT (CM) DIAMETER (UM) OPEPING (UM) OPEN AREA(%) THICKNESS(UM) VOLUME (CM³/CM²) MAX TEN SION(N/CM)
15 6 400 1270 64 720 460 30-60
18 7 350 1078 64 640 410 30-60
20 8 300 950 58 550 319 30-60
25 10 250 750 56 620 347 30-60
30 12 250 583 49 450 220 30-60
30 12 150 683 67 300 201 30-60
40 16 200 425 46 400 184 30-60
50 20 80 420 71 120 85 35-37
50 20 150 350 49 260 127 30-60
60 24 100 316 58 136 78 35-40
60 24 120 297 50 240 120 35-60
73 29 120 225 43 240 103 35-60
80 32 64 248 63 95 59 30-34
80 32 100 212 46 200 92 35-40
85 34 100 195 44 221 97 35-40
90 36 100 178 41 216 88 35-40
100 39 55 200 61 88 53 25-30
100 39 80 176 47 150 70 35-37
110 43 80 153 43 130 56 35-37
120 47 55 158 55 88 48 25-30
120 47 71 142 44 135 59 30-34
135 53 55 133 50 86 43 25-30
135 53 64 125 44 100 44 26-31
150 59 64 105 38 100 38 26-31
160 64 55 101 42 98 41 25-30
160 64 64 92 35 120 42 30-34
180 72 48 91 43 78 66 27-29
180 72 55 84 37 100 37 25-30
200 80 48 77 38 74 28 27-29
195 77 55 75 33 105 34 25-30
230 90 48 63 33 85 28 27-29
250 100 40 60 36 70 25 20-24
280 110 40 51 31 85 26 20-24
305 120 40 43 27 68 18 20-24
355 140 34 37 27 58 15 22-24
380 150 31 36 29 46 13 21-23
420 165 31 30 24 46 11 21-23
460 180 27 28 26 56 14 20-22



4.Feature advantage  of bolting cloth

  • High temperature resistance under 200 Degrees Celsius
  • Acid resistance (not suitable for alkali)
  • Solvent resistance
  • Water resistance
  • Chemicals resistance
  • By the external pressure is large, its physical properties and stability, small stretch

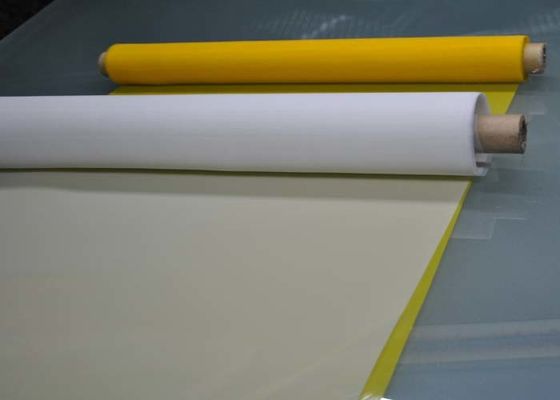

5.The difference between white and yellow polyester bolting cloth​

  • White bolting cloth is within 40-200mesh/inch,Yellow bolting cloth is within 250-500mesh/inch
  • The refractive index of the two colors is different,White refraction in the copy more, affecting the quality of the screen
  • If you print ink, you should choose a high head,If the printing paste, select 100 or 80 mesh

White Or Yellow 300Mesh Polyester Bolting Cloth With Acid Resistance 0

White Or Yellow 300Mesh Polyester Bolting Cloth With Acid Resistance 1

White Or Yellow 300Mesh Polyester Bolting Cloth With Acid Resistance 2
