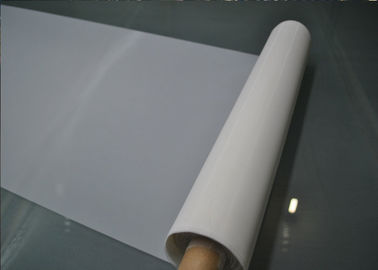

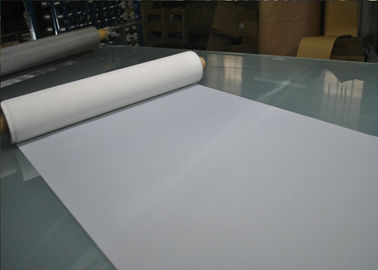

100 Micron Silk Screen Printing Mesh For Glass / Signs High Precision

100 Micron Silk Screen Printing Mesh For Glass / Signs High Precision
100 Micron Silk Screen Printing Mesh For Glass / Signs High Precision 100 Micron Silk Screen Printing Mesh For Glass / Signs High Precision 100 Micron Silk Screen Printing Mesh For Glass / Signs High Precision

Large Image :  100 Micron Silk Screen Printing Mesh For Glass / Signs High Precision

Product Details:
Place of Origin: Hebei,China
Brand Name: PFM
Certification: FDA
Model Number: PFM-LIS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Plastic bag inside on one roll and plywood case outside.Or cut into small pieces and plastic bag.
Delivery Time: 5-10days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, ,Trade assurance,Paypal
Supply Ability: 3000meter per week
Detailed Product Description
Color: White Thread Diameter: 30-150micron
Mesh: 40-400mesh/inch Width: 1.15-3.6m
Sample: Free Weave: 1:1
High Light:

silk screen fabric mesh

,

silk bolting cloth

                 China White 100Micron Polyester Screen Printing Mesh Used For Printing





1 Description

Polyester printing network using high-precision high-quality monofilament polyester network, with high precision, stable tension and other characteristics, and excellent dimensional stability, making the printing will not deviate, and to ensure a high strength and low elongation, Can greatly extend the service life of the screen.

The special width is available as customer's requirement,and the width is up to 3.6meter.

2. Application

⑤ glass, ceramic products printing
Glass - mirror, glass plate, cup, bottle and so on.
Ceramics - utensils, handicrafts.
⑥ signs
Text description board, dial, shaped items.
⑦ circuit board printing
Printed circuit boards, civil or industrial substrates, thick film integrated circuit boards.
⑧ printing and dyeing
Printing and dyeing - flags, cloth, towels, handkerchiefs, shirts, vests, knitwear and so on. '
Other printing - pocket, shoes, number cloth and all kinds of bags, backpacks, bags, bags and so on.
⑨ leather products printing

3. Specificaitons

COUNT (INCH) COUNT (CM) DIAMETER (UM) OPEPING (UM) OPEN AREA(%) THICKNESS(UM) VOLUME (CM³/CM²) MAX TEN SION(N/CM)
15 6 400 1270 64 720 460 30-60
18 7 350 1078 64 640 410 30-60
20 8 300 950 58 550 319 30-60
25 10 250 750 56 620 347 30-60
30 12 250 583 49 450 220 30-60
30 12 150 683 67 300 201 30-60
40 16 200 425 46 400 184 30-60
50 20 80 420 71 120 85 35-37
50 20 150 350 49 260 127 30-60
60 24 100 316 58 136 78 35-40
60 24 120 297 50 240 120 35-60
73 29 120 225 43 240 103 35-60
80 32 64 248 63 95 59 30-34
80 32 100 212 46 200 92 35-40
85 34 100 195 44 221 97 35-40
90 36 100 178 41 216 88 35-40
100 39 55 200 61 88 53 25-30
100 39 80 176 47 150 70 35-37
110 43 80 153 43 130 56 35-37
120 47 55 158 55 88 48 25-30
120 47 71 142 44 135 59 30-34
135 53 55 133 50 86 43 25-30
135 53 64 125 44 100 44 26-31
150 59 64 105 38 100 38 26-31
160 64 55 101 42 98 41 25-30
160 64 64 92 35 120 42 30-34
180 72 48 91 43 78 66 27-29
180 72 55 84 37 100 37 25-30
200 80 48 77 38 74 28 27-29
195 77 55 75 33 105 34 25-30
230 90 48 63 33 85 28 27-29
250 100 40 60 36 70 25 20-24
280 110 40 51 31 85 26 20-24
305 120 40 43 27 68 18 20-24
355 140 34 37 27 58 15 22-24
380 150 31 36 29 46 13 21-23
420 165 31 30 24 46 11 21-23
460 180 27 28 26 56 14 20-22



Screen printing and other printing methods compared to the main differences are the following:

  1. light fastness, bright color Because the screen printing has the characteristics of missing printing, so it can use a variety of inks and coatings, not only can use the slurry, adhesives and various pigments, you can also use thick particles of particles. In addition, the screen printing ink deployment method is simple, for example, can be directly into the ink in the deployment of light, which is another major feature of screen printing. Screen printing products have a great advantage of light resistance. Practice shows that the use of black ink in the coated paper on a press after the maximum density value of the range were compared, offset printing 1.4, embossed 1.6, gravure printing is 1.8, and the maximum density of screen printing range Up to 2.0, so the screen printing products, light resistance than other types of printed products, light fastness, more suitable for outdoor advertising, signs used.
  2. printing area of the current general offset printing, embossing and other printing methods printed on the size of the largest size for the whole sheet, more than the full size, it is subject to mechanical equipment restrictions. The screen printing can be a large area of printing, today's screen printing products up to 3 meters × 4 meters, or even greater.



Remark:Polyester screen printing mesh is not suitable for alkali.
