| Material: | Manganese Steel | Wire Diameter: | 8 Mm |
|---|---|---|---|
| Spiral Wire Pitch: | 40 Mm | Cross Wire Pitch: | 60 Mm |
| Width: | 800 Mm | Length: | 4 M Per Roll |
Heavy Duty Manganese Steel Balance Weave Spiral Wire Mesh Conveyor Belt
1. Description :
Balance weave spiral wire mesh conveyor belt, also known as a balanced spiral weave belt, is a type of conveyor belt that features a balanced weave pattern using interlocked spirals of wire mesh. This design creates a strong and stable conveying surface that is suitable for a variety of industrial applications.
| Material | manganese steel , or stainless steel 304 316 etc |
| Wire diameter | 8 mm , or customized |
|
Spiral wire pitch |
40 mm , or customized |
| Cross wire pitch | 60 mm , or customized |
| Width | 800 mm , or customized |
| Length | 4 m , or customized |
2. Features :
1) Construction:
Balance weave spiral wire mesh conveyor belts are constructed by interlocking left-hand and right-hand spirals of wire mesh. The spirals are connected by a straight cross rod, resulting in a balanced weave pattern. This design provides a flat and stable conveying surface.
2) Material:
These belts are typically made from stainless steel wire mesh, which offers excellent strength, corrosion resistance, and durability. Other materials, such as carbon steel or galvanized steel, can also be used based on specific application requirements.
3) Balanced weave pattern:
The balanced weave pattern ensures even distribution of tension throughout the belt, preventing belt tracking issues and ensuring smooth product movement. It offers stability and reliability during conveying.
4) Open mesh design:
Balance weave spiral wire mesh conveyor belts have an open mesh design that allows for good airflow, drainage, and heat transfer. This feature is beneficial for applications involving drying, cooling, or heating of conveyed products.
5) Customization:
These belts can be customized based on specific application needs. Belt width, length, wire diameter, pitch, and mesh configuration can be tailored to accommodate various product sizes, conveying capacities, and process conditions.
3. Applications:
1) Food processing industry:
Balance weave spiral wire mesh conveyor belts are widely used in the food processing industry for applications such as baking, cooling, washing, drying, and general material handling. They are suitable for conveying products like baked goods, meat, poultry, seafood, fruits, vegetables, and more.
2) Industrial drying and cooling: These belts find applications in industrial processes that involve drying or cooling of products. The open mesh design allows for efficient airflow and heat transfer, making them suitable for applications such as textile drying, paper cooling, or metal part cooling.
3) Packaging and labeling: Balance weave spiral wire mesh conveyor belts are used in packaging and labeling applications where precise product positioning and stability are essential. They ensure proper alignment and smooth conveying of boxes, containers, or packaged goods.
4) Automotive industry: These belts are utilized in the automotive industry for conveying automotive parts during manufacturing processes. They are commonly used in paint booths, assembly lines, or other production stages that require a flat and stable conveyor surface.
5) General industrial applications: Balance weave spiral wire mesh conveyor belts have a wide range of industrial applications. They are suitable for material handling, sorting, and processing in industries such as pharmaceuticals, electronics, chemicals, and more.
4. Packing :
PP bag inside, and then wooden case outside.
5. Delivery :
It can be shipped by sea or air, express, such as DHL FEDEX TNT EMS UPS SF, etc.

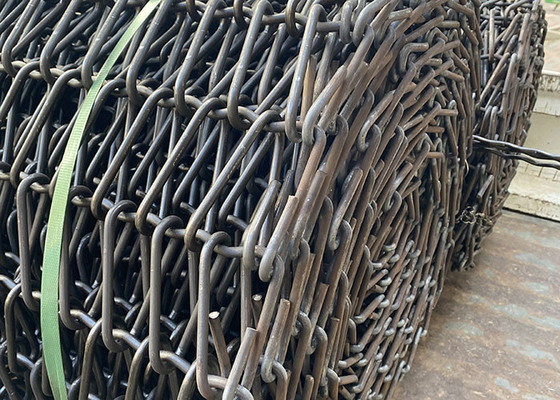

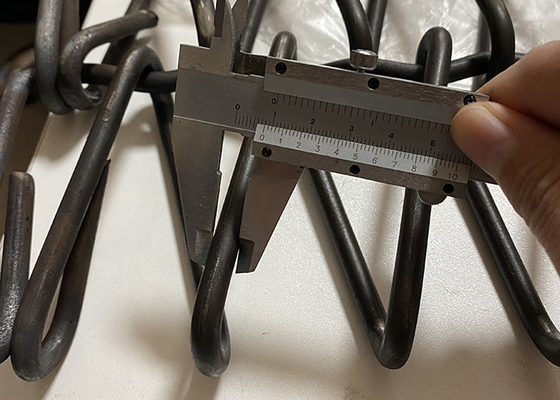

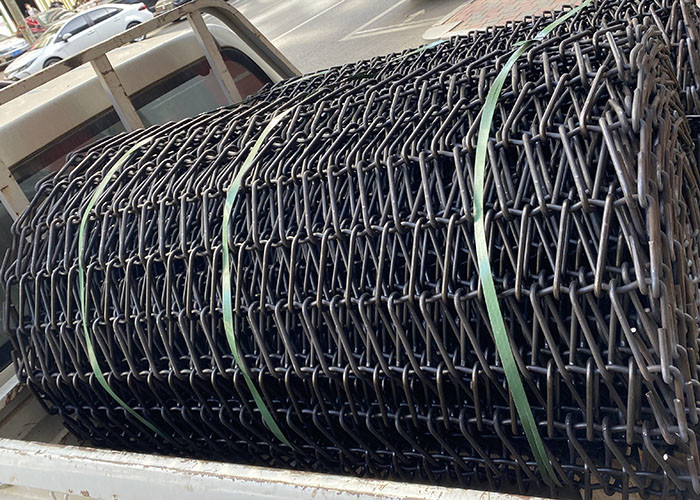

6. Product Shows :
