| Material: | Polyester | Applications: | Filtration Textiles |
|---|---|---|---|
| Type: | Filter Fabric | Length: | 30m, 50m, 100m |
| Monofilament: | Yes | Opening: | 30micron-900micron |
| Place Of Original: | Hebei,China | Technical: | Woven |
| Tensile Strength: | High | Weave Type: | Plain Weave |
| High Light: | anti static polyester spiral belt,drying polyester spiral belt,anti static dewatering polyester mesh belt |
||

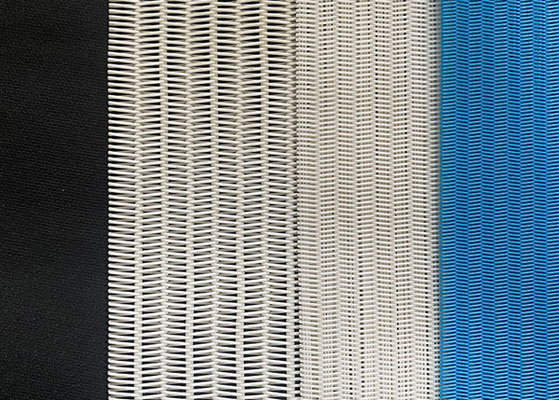

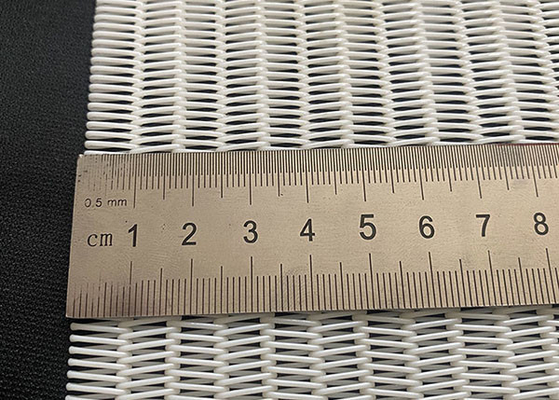

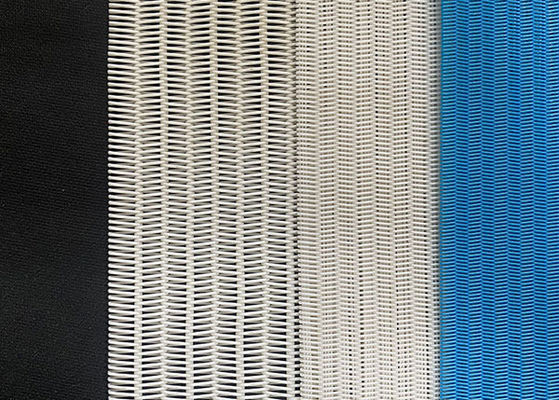

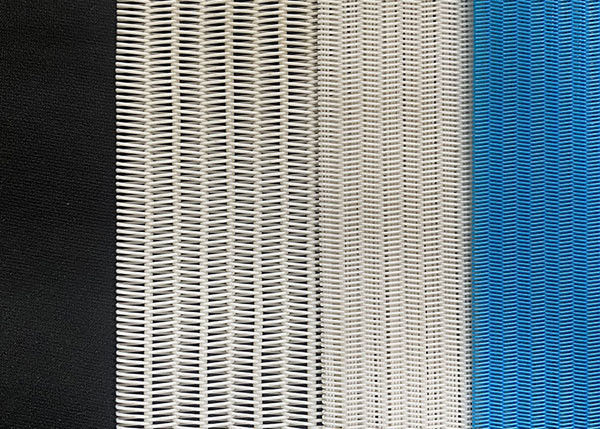

Polyester Spiral Link Dryer Fabric Polyester Spiral Belt) according to Finland standard with first-class monofilament.
The characteristics of SLDF are stable running, not easy to wrinkle, high filtration rate and it can peel off easily from the
filter cake. Polyester Spiral Belts are mainly used on paper making, printing and dyeing, food, pharmaceutical, ceramics and sold & liquid separation industry, mine, metallurgy, and other fields.
Advantages: Large air permeability with a long lifetime. Flat surface and Good Strength. High-temperature resistance, abrasion resistance, and aging resistance. Perfect seamless structure with good excellent elongation resistance Great resistance to chemicals, such as acids and organic solvents.
Polyester Spiral Press Filter Belt
This kind of polyester spiral belt is made of polyester spiral dryer fabric which is filled with stuff to reduce the air
permeation and to intensitive the opening, hence reducing the material loss from the mesh opening. Polyester spiral press filter belt is suitable for high-pressure press-filter washers, horizontal belt washers, pulp-liquor separators, and netting belt coal-washer. It has been extensively used in all kinds of industries such as printing and dyeing, food, salt industry, pharmaceutical, environment protection, process hides,shoe-making, clothing, pottery, and other conveyable belt est.
Specification
We can offer a wide range of options to suit your application to achieve your optimum air permeability, filtration efficiency, throughput and tracking stability. Items to choose from include: various types of yarn diameters from 0.5mm to 1.2mm; small, medium and large spiral loops; flat or round yarn; and yarn material.
| Model | warp thread diameter | weft thread diameter | The specificationof single | weight(kg/m2) | thickness |
| Large loop | 0.9mm | 1.1mm | LW 4.0×8.0mm | 1.7 | 3mm |
| Medium loop | 0.7mm | 0.9mm | LW 3.8×6.8mm | 1.4 | 2.5mm |
| Small loop | 0.5mm | 0.7mm | LW 3.2×5.2mm | 1.1 | 1.9mm |
Features
1.Has the acid and alkali resistance, wear resistance, high temperature resistant, long service life
2.With smooth surface, the tensile strength, permeability is good.
3. According to user requirements in filling in the grid round wire (2 to 5) (a) or black flat silk, adjust at porosity, meet the
process requirements.
4.Carbon fiber through internal fill to achieve antistatic effect, with high temperature resistance, wear resistance, etc
5.Size length can be cut, and thus solve the problem of the influence because of the size is not accurate to use.
6.Install easy to use, interface without imprint.
Applications
a.Food processing industry
b.Pasta sector, for drying and pasteurization
c.Ready-to-use produce sector, for washing vegetables
d.Food processing industry, for drying of fruits
e.Dairy industry, for filtration processes
f. Fishing industry, for transportation
Packing
waterproof bag inside, plywood carton outside.
