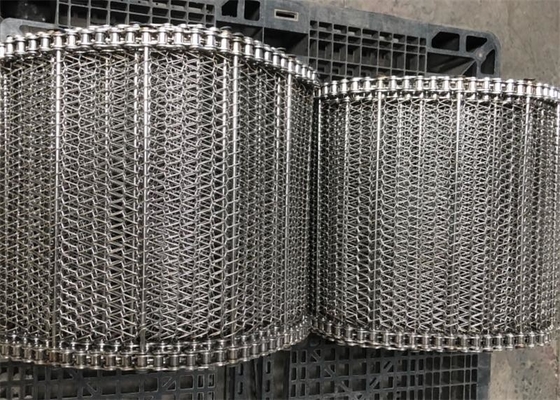

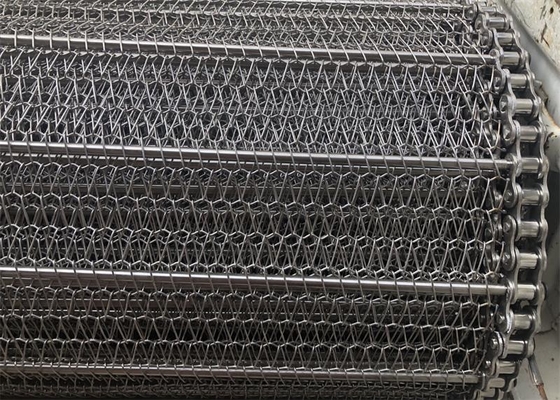

Stainless Steel Chain Ss 304 Spiral Conveyor Belt Metal Balance Weave 180 Degree

SS 304 Stainless Steel Chain Spiral Conveyor Belt Metal Balance Weave Wire Mesh Conveyor Belt

Stainless Steel Chain Link Mesh Conveyor Belt is driven with a cross rod which connects the chain strands by either passing through or under the wire mesh fabric. The density of wire mesh fabric is choosen according to size of the product conveyed on the belt.Chain-type mesh belt: Chain-driven conveyor belt is generally driven by the chain of small shaft and then drive the belt to run. Mesh belt are used to wear a string, about two lines of the network, and the size of the network connected from the large network into the small shaft, the small shaft into the chain of two ends of the hole, so as to achieve the chain drive conveyor belt. Chain net drive smooth, small transmission torque.

Applicaiton:

1) Widely used in solar power, mine, metallurgy, petroleum, chemical, food, pharmeceuticals, glass, printing and machine making industries;
2) Heat treament, drying, cooling, refrigerating, cleaning, dehydration, sintering, transportation, material handling, steaming, filtering, sludge draining, printing, etc.
3) Used in sintering furnace, annealing furnace, continuous tunnle furnace, travelling furnace, high-temperature furnace, production line, etc

Feature:

• The belt is produced using right and left spiral connecting and crimped connecting rod to form balance weave ,which is tracking streight.
• This kind of spiral wire link belt is the most widely used mesh belt.
• Spiral wirelink belt can conveyor goods from big size or very hot to very small size ,unsorted who need stable support because of its adjustable openning size
• The round end of spiral wirelink belt allow goods on it transfer to the following stage processing very easily.
• spiral wirelink belt is also can be used to transport in glass furnace,at the same time, it can be use as decorative dividers in architecture and safty curtain

Advantage:

• corrosion resistant,both acid and alkali resistant
• high temperature resistant,can bear 1000 degree centigrade
• long time service
• heavy loading,rod can be added to increase its loading weight.

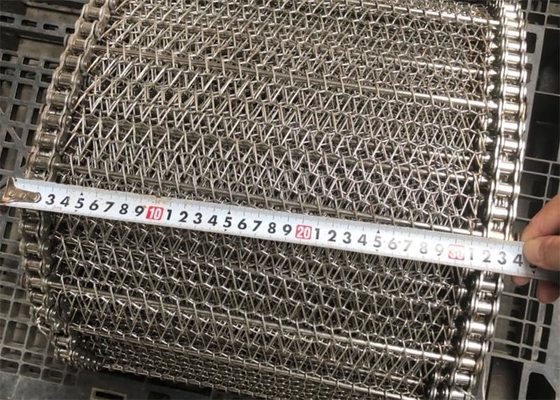

You can according to the following picture and tell me your specification
