1m Width Silk Polyester Screen Printing Mesh Filtering Fabric

Certification
China Anping County Comesh Filter Co.,Ltd certification
China Anping County Comesh Filter Co.,Ltd certification
Customer Reviews
Never appear quality problem, timely delivery, very satisfied.

—— Eric

Money and treasures will be plentiful

—— Yee

Integrity enterprises, quality assurance, timely delivery, first-class after-sale.

—— Mario

I'm Online Chat Now

1m Width Silk Polyester Screen Printing Mesh Filtering Fabric

1m Width Silk Polyester Screen Printing Mesh Filtering Fabric
1m Width Silk Polyester Screen Printing Mesh Filtering Fabric 1m Width Silk Polyester Screen Printing Mesh Filtering Fabric 1m Width Silk Polyester Screen Printing Mesh Filtering Fabric 1m Width Silk Polyester Screen Printing Mesh Filtering Fabric

Large Image :  1m Width Silk Polyester Screen Printing Mesh Filtering Fabric

Product Details:
Place of Origin: Hbei,China
Brand Name: Comehs-ang
Certification: FDA
Model Number: Comesh-Ang
Payment & Shipping Terms:
Minimum Order Quantity: 30meter
Price: Negotiable
Packaging Details: plastic bag inside, carton case outside,5-10rolls in one carton
Delivery Time: 5-10days
Payment Terms: D/A, L/C, D/P, T/T, Western Union, ,Trade assurance,Paypal
Supply Ability: 3000meters per week
Detailed Product Description
Thread Diameter: 34micron Mesh/inch: 280mesh/inch
Weave: 1:1 Sample: Offered
Name: Polyester Mesh For Silk Screen Printing Filtering Fabric Color: White,black,yellow,red,blue
Width: 1-3.2m Colors: White,black,yellow,blue
High Light:

silk polyester screen printing mesh

,

1m width polyester screen printing mesh

,

1m width polyester printing mesh

                                                         Polyester Mesh For Silk Screen Printing Filtering Fabric





Description



name Polyester Mesh For Silk Screen Printing Filtering Fabric
mesh count per cm 5-500 count
MOQ 50m
color white,black,yellow,red,blue
opening size 158micron
width 115cm,127cm,136cm,145cm,157cm,165cm,188cm,220cm and MAX width can be 3.65cm.





Features of Polyester Mesh For Silk Screen Printing Filtering Fabric​:

1.High tension and low-Elongation

2.Less tension loss after high strength

3.Standard size and filtration value

4.(+-)2-6micorn thickness tollerance

5.Faster printing speed and finer printing effect





Application:



1.Polyester silk mesh can transfer thick ink deposits and great speical effect to make it to be optimal pricess to print high quality commercial farments,T-shirt etc.

2.Used to print knitted fabric,high-end textile decoration.

3.Polyester silk mesh is extensively used in ceramics industry,such as dishes,tiles,earthenware or fine china.

4.Polyester silk mesh can print the challenging intense color and ornate decor on glass and PCB etc.





Specification of Polyester Mesh For Silk Screen Printing Filtering Fabric:



COUNT (INCH) COUNT (CM) DIAMETER (UM) OPEPING (UM) OPEN AREA(%) THICKNESS(UM) VOLUME (CM³/CM²) MAX TEN SION(N/CM)
15 6 400 1270 64 720 460 30-60
18 7 350 1078 64 640 410 30-60
20 8 300 950 58 550 319 30-60
25 10 250 750 56 620 347 30-60
30 12 250 583 49 450 220 30-60
30 12 150 683 67 300 201 30-60
40 16 200 425 46 400 184 30-60
50 20 80 420 71 120 85 35-37
50 20 150 350 49 260 127 30-60
60 24 100 316 58 136 78 35-40
60 24 120 297 50 240 120 35-60
73 29 120 225 43 240 103 35-60
80 32 64 248 63 95 59 30-34
80 32 100 212 46 200 92 35-40
85 34 100 195 44 221 97 35-40
90 36 100 178 41 216 88 35-40
100 39 55 200 61 88 53 25-30
100 39 80 176 47 150 70 35-37
110 43 80 153 43 130 56 35-37
120 48 55 158 55 88 48 25-30
120 48 71 142 44 135 59 30-34
135 53 55 133 50 86 43 25-30
135 53 64 125 44 100 44 26-31
150 59 64 105 38 100 38 26-31
160 64 55 101 42 98 41 25-30
160 64 64 92 35 120 42 30-34
180 72 48 91 43 78 66 27-29
180 72 55 84 37 100 37 25-30
200 80 48 77 38 74 28 27-29
195 77 55 75 33 105 34 25-30
230 90 48 63 33 85 28 27-29
250 100 40 60 36 70 25 20-24
280 110 40 51 31 85 26 20-24
305 120 40 43 27 68 18 20-24
355 140 34 37 27 58 15 22-24
380 150 31 36 29 46 13 21-23
420 165 31 30 24 46 11 21-23
460 180 27 28 26 56 14 20-22





Tips of Polyester Mesh For Silk Screen Printing Filtering Fabric for work:



  • 20 and 40 mesh is used mostly for glitter inks that need a very open mesh for printing.
  • 60 mesh is usually used for printing smaller glitter and most shimmer inks.
  • 80 mesh is also used for printing shimmer inks and for laying down thick layers of ink for high-density printing. It also works well for printing foil adhesive.
  • 110 mesh makes printing white and other thick inks easy. It is ideal for spot color printing since it holds less detail than 155 mesh and lays down a thick layer of ink for maximum coverage.
  • 120 mesh is one of the most rifely mesh sizes in screen printing. It works great for printing white ink and other colored inks that have a thicker viscosity.
  • 155 mesh is great for general purpose textile printing with basic to semi-fine detail. It will hold a little finer detail than a 110 mesh while also working well with thinner inks.
  • 200 mesh is great for printing more detailed prints that need a thinner layer of ink than a 155 mesh. It works very well with thinner inks and is a good middle-range mesh size.
  • 230 mesh is great for high-end fine detail printing. A 230 mesh can hold halftones very well and also lets a little more ink through then a 305 mesh. The yellow color prevents light from reflecting through the threads of the mesh and keeps a sharper image when burning.
  • 280 mesh screens are great for high-end fine detail printing. A 280 mesh can hold halftones very well and also lets a little more ink through then a 305 mesh.
  • 305 mesh holds extremely high detail, letting through only a thin layer of ink. This allows for a very soft hand on the garment and is great for use in printing halftones and process prints. The yellow color prevents light from reflecting through the threads of the mesh and keeps a sharper image when burning.

Production processing of polyester screen printing mesh:



1m Width Silk Polyester Screen Printing Mesh Filtering Fabric 0



Packing of polyester screen printing mesh:

  • mesh rolls in a pp bag
  • 2-12rolls per cartons
  • waterproof bags outside
  • package belt strengthen

MOQ and sample of Polyester Mesh For Silk Screen Printing Filtering Fabric:



Usually the MOQ is 30meter,if quantity is less that that sometimes is also OK,before that please contact with Helen Hou.



Sample with size not more than 2meter can be supplied free, freight should be paid buyer.



 Service

  • Inquiry and consulting support.
  • Sample testing support.
  • View our Factory.
  • Sending tracking number soon.
  • Training how to use it
  • Changing for new if dissatisfa

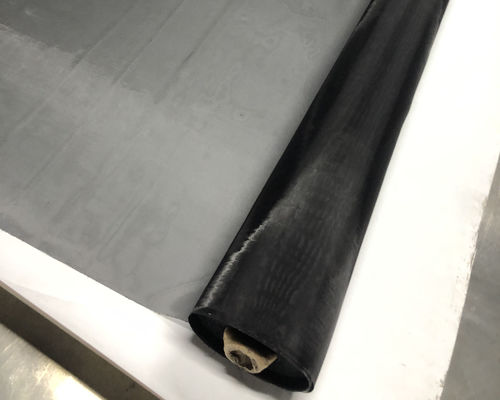

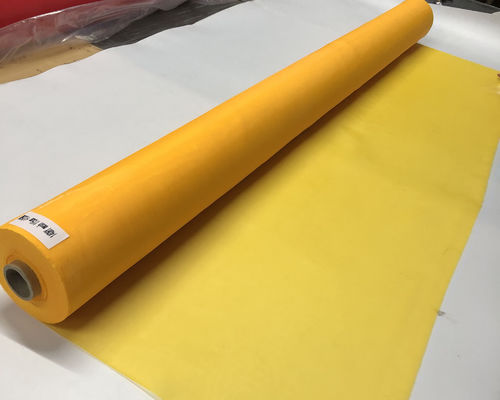

 1m Width Silk Polyester Screen Printing Mesh Filtering Fabric 1 1m Width Silk Polyester Screen Printing Mesh Filtering Fabric 2

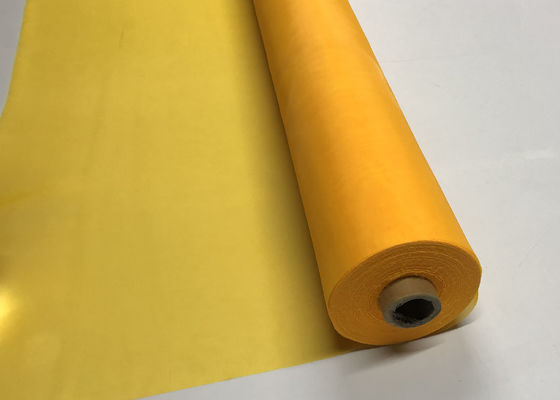

1m Width Silk Polyester Screen Printing Mesh Filtering Fabric 3

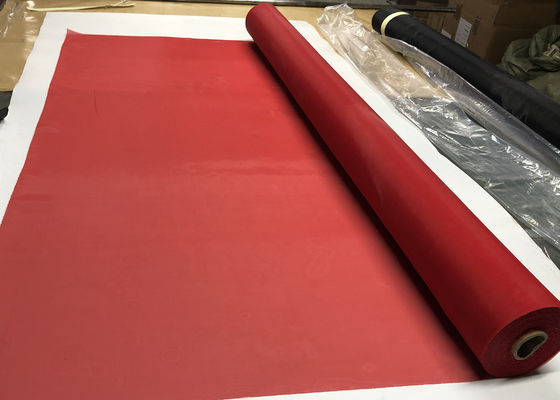

1m Width Silk Polyester Screen Printing Mesh Filtering Fabric 4
