| Name: | Polyester Plain Weave Mesh Conveyor Belts Linear Screen Cloth Conveyor Belts For Drying Mining | Wire Diameter: | 0.3mm,0.4mm,0.5mm,0.7mm,0.9mm,1.0mm |
|---|---|---|---|
| Hot Search: | Polyester Plain Weave Mesh Belt | Mateiral: | 100% Polyester Monofilament |
| Weave Type: | Plain Weave | Application: | Food Drying And Conveyor |
| High Light: | Square Hole Polyester Mesh Belt,0.4mm Polyester Mesh Belt |
||

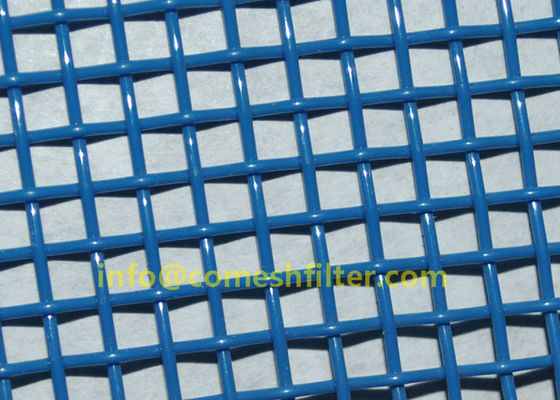

Polyester square hole Mesh Conveyor Belts Linear Screen Cloth Conveyor Belts For Drying Mining
Features of Polyester square hole Mesh Conveyor Belts Linear Screen Cloth Conveyor Belts For Drying Mining:
it has features of tear-resistance, shrink-resistance and abrasion resistance etc.
Polyester Monofilament process conveyor belting is available in a wide variety of yarn thicknesses and apertures. Polyester mesh belting is characterised by high reliability, easy handling, thermal and chemical resistance coupled with dimensional stability.
features of Polyester square hole Mesh Conveyor Belts Linear Screen Cloth Conveyor Belts For Drying Mining:
polyester plain fabrics are mainly used in special lines of paper making industry, such as paper pulps making, packing and liner cardboard making, etc.
Polyester plain fabrics also could be used in mining isdustry for sieing or conveyor belt, high density board making, food drying, sludge dehydration equipments, concentrate and other filtration industries.
4. the joining type of polyester plain mesh screen can be endless,steel pin joining,spiral ring joining and pin ring joining.

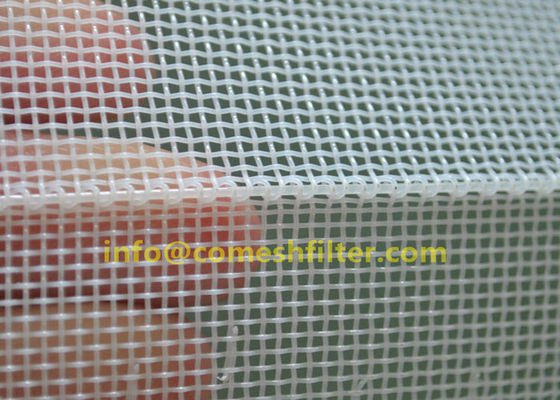

Spiral Ring Joining type
Steel Pin Joining type:
Specifications of Polyester plain weave mesh belt
| Polyester Linear Screen Mesh Belt | |||||||
| Weaving Type | Model | Thread Diameter | Density(No.s/cm) | Srength | Air Permeability | ||
| (mm) | (N/cm) | (m3/m2h) | |||||
| Warp | Weft | Warp | Weft | ||||
| 2-shed plain weaving fabric | 5802 | 0.75 | 0.8 | 4.7-5 | 4.8-5 | 940 | 20000 |
| 5102 | 1 | 1 | 4.7-5.2 | 4.3-5 | 1600 | 15000 | |
| 6702 | 0.7 | 0.7 | 8 | 7 | 1600 | 11000 | |
| 7102 | 0.7 | 1 | 6.6-7 | 4.3-4.6 | 1100 | 15000 | |
| 8552 | 0.55 | 0.55 | 7.5-8 | 8.5-9 | 850 | 850-6500 | |
| 9452 | 0.45 | 0.45 | 10 | 8.6 | 1600 | 16000 | |
| 9502 | 0.5 | 0.5 | 8.5-9 | 10-10.5 | 750 | 10000 | |
| 12502 | 0.5 | 0.5 | 13.5 | 8.5 | 1800 | 6500 | |
| 3-shed plain weaving fabric | 8603 | 0.5 | 0.6 | 10 | 9 | 1600 | 14000 |
| 8903 | 0.9 | 0.9 | 7.8-8 | 5-5.5 | 2100 | 7500-8500 | |
| 7803 | 0.7 | 0.8 | 8 | 8 | 1600 | 10000 | |
| 20353 | 0.3 | 0.35 | 22 | 14.5 | 1200 | 13000 | |
| 20403 | 0.3 | 0.4 | 22 | 14.5 | 1200 | 13500 | |
Packing and shipping:
Polyester Plain Weave Belt can be shiped by courier,by air and by sea.
Usually we pack polyester dryer screen with air bubble film,if ship by sea, it will be packed with plywood case.
