| Material: | Stainless Steel 304 | Width: | 0.8m 1m 1.2m 1.4m 1.6m, Or Customized |
|---|---|---|---|
| Length: | 5m 10m 12m 15m 30m, Or Customized | Wire Diameter: | 1.0mm 1.2mm 1.5mm 2.0mm |
| Spiral Pitch: | 3mm-20mm | Rod Diameter: | 4mm-20mm |
| High Light: | 1.6M chain conveyor belt,4mm chain link conveyor belt |
||

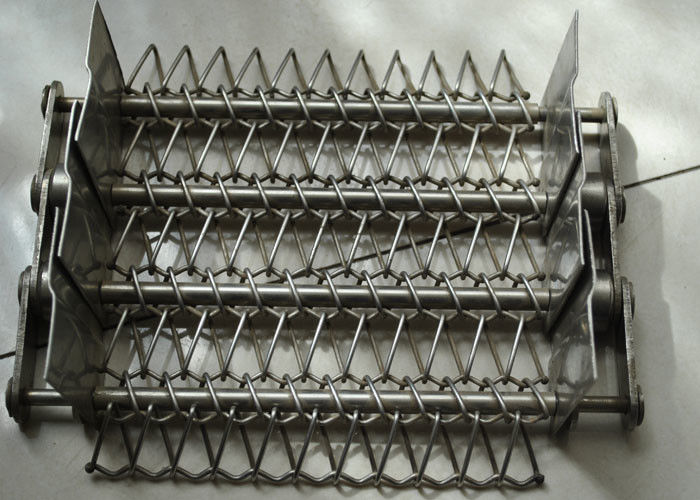

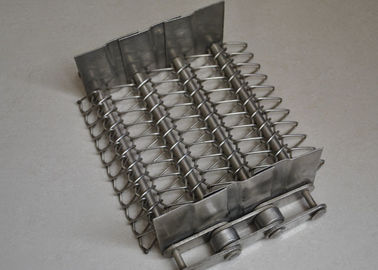

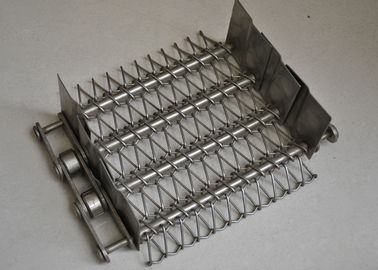

304 Stainless Steel Chain Mesh Conveyor Belt With Baffle for Food Professing
1. Description :
Stainless Steel Mesh Belt wire mesh conveyor belt, chain driven belt With smooth surface, strong degree is high, strong corrosion resistance, tensile strength, good permeability, not easy to deformation, durability and other special functions.
2. Specification :
| Material | iron steel Q195 or 235, stainless steel 201, 304, 316L, 430 |
| Width | 0.2-4.0m (include side chain width) |
| Length | 1.0-50m |
| Spiral wire diameter | 0.5-5.0mm(usual 1.0-3.0mm) |
| Rod diameter | 4.0-12.0mm (common 6.0mm and 8.0mm) |
| Spiral pitch | 3.0-20mm |
| Cross wire pitch | 5.0-50mm |
| Driven type | sprockets and chains |
3. Applications :
Food industry: often used in light weight products processing - frying, freezing, heating, cooling, cooking, drying, baking, coating, enrobing and sterilization for desserts, pizza, vegetables, bread, flour cakes, meat, fish, candy, potatoes, biscuits, chocolate, nuts, fruit, etc. Like chocolate enrobing, battering and breading, freezing for seafood processing, frying chickens, cooling wafer after coating, pizza baking.
Electronics industry: printed circuit board required minimum contact support, melting, sold or drying welding.
Caps making industry: drying for drop plastic
Others, like textiles, glass heat treatment, printing and dyeing, radio, scientific research applications.
4. Available materials :
1) AISI 314 (1150°C)
2) SUS 310S (1090°C)
3) SUH 330 (1150°C)
4) SUS 304 (870°C)
5) Super alloy Cr20Ni80 (1250°C) electrical furnace wire
6) SUS 321 (750°C)
7) SUS 410 (700°C)
8) SUS 430 (700°C)
9) Various metal materials as per your requirements
