Honeycomb Wire Mesh Conveyor Belt , Metal Mesh Belt With Clinched Edge

China Honeycomb Wire Mesh Conveyor Belt , Metal Mesh Belt With Clinched Edge supplier
Honeycomb Wire Mesh Conveyor Belt , Metal Mesh Belt With Clinched Edge supplier Honeycomb Wire Mesh Conveyor Belt , Metal Mesh Belt With Clinched Edge supplier Honeycomb Wire Mesh Conveyor Belt , Metal Mesh Belt With Clinched Edge supplier

Large Image :  Honeycomb Wire Mesh Conveyor Belt , Metal Mesh Belt With Clinched Edge

Product Details:

Place of Origin: Hebei,China
Brand Name: Comesh
Certification: SGS
Model Number: COM-A

Payment & Shipping Terms:

Minimum Order Quantity: 10 Meters
Packaging Details: Plastic Bag And Plywood Case
Delivery Time: 10 Working Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 Meters Per Month
Contact Now
Detailed Product Description
Material: Stainless Steel 304 316 Or Customized Length: 10 - 30m / Roll
Width: Customized Color: Silver
Sample: Available Edge Type: Clinched Edge And Welded Edge
High Light:

stainless steel mesh conveyor belt

,

balanced weave belt



Food Grade Honeycomb Stainless Steel 304 Wire Mesh Conveyor Belt With Clinched Edge





Introduction



Stainless steel honeycomb conveyor belt, also called great wall conveyor belt. It is the combination of flat sheet strips and round wire cross rod. The flat wires are arranged in the form of lattice and jointed with the straight round rods.



The material of honeycomb conveyor belt are commonly high carbon steel, galvanized steel, stainless steel and other materials.



Flat wire belt is a perfect products with both durability and suitable open area. It is temperature resistance, which is popular in the baking conveying applications. The flat surface of honeycomb conveyor belt supplies stable conveying during using.



The belt size and barrier can be customized according to your request.

Sample can be provided to you for your quality test.

Before our best offer,please tell me the specific dimensions you need.It would be better if you can provide drawing or photos.





Application



Stainless steel honeycomb conveyor belts are mainly used in for food drying,cooling,freezing,washing and etc.

Honeycomb conveyor belts are used in the food industry for the production of the following products: small dessert, fish products, pizza, vegetables, bread, flour, cakes, meat, candy, potatoes, biscuits, chocolate, nuts and fruit.

●Baking , Cooking , Heating , Drying , Coating , Freezing , Frying , Cooling , Transport





Specification



Product Name Honeycomb conveyor belt , metal conveyor belt , stainless steel conveyor belt
Material Stainless steel 304 316,high carbon steel,galvanized steel
Mesh Size 1/2 x 1, 1 x 1, 1/2 x 1/2 true, 1/2 x 1 modified, 3/4 x 1
Belt Width 0.5m - 3.5m. Special widths can be customized
Length Customized
Edge Type Clinched edge and welded edge
Sample Sample can be produced according to your requirements





Feature



● Flat surface. The flat surface of honeycomb can ensure the stable and high efficient conveying.
● Large open area. The large open are of flat wire belt make it suitable for the process of drying, washing, baking and cooling.
● Good air permeability and drainage performance.
● Baffles are available. In the conveying process, to prevent the products from falling down, baffles are added to the flat wire conveyor belt to ensure the products in place.
● High temperature resistance. The materials of flat wire belt are all high temperature resistance, so it is popular in the baking applications.

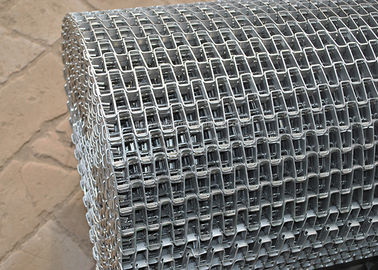

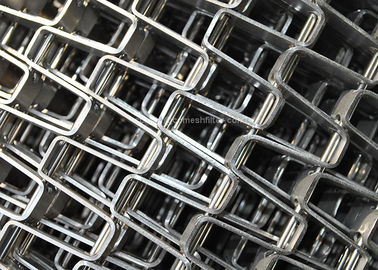

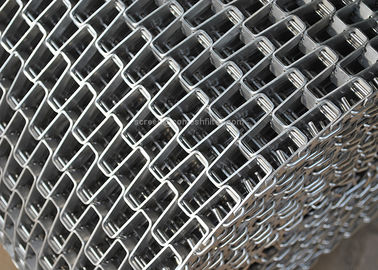

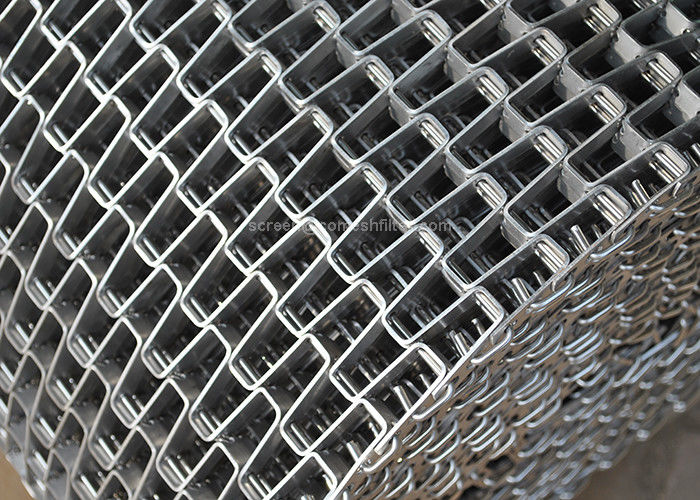

Honeycomb Wire Mesh Conveyor Belt , Metal Mesh Belt With Clinched Edge 0



Honeycomb Wire Mesh Conveyor Belt , Metal Mesh Belt With Clinched Edge 1
