| Material: | Stainless Steel 304 | Width: | 1.5m, Or Customized |
|---|---|---|---|
| Length: | 30, Or Customized | Wire Diameter: | 1.2mm |
| Space: | 15cm | Chain Pitch: | 0.8cm |
| High Light: | stainless steel mesh conveyor belt,balanced weave belt |
||

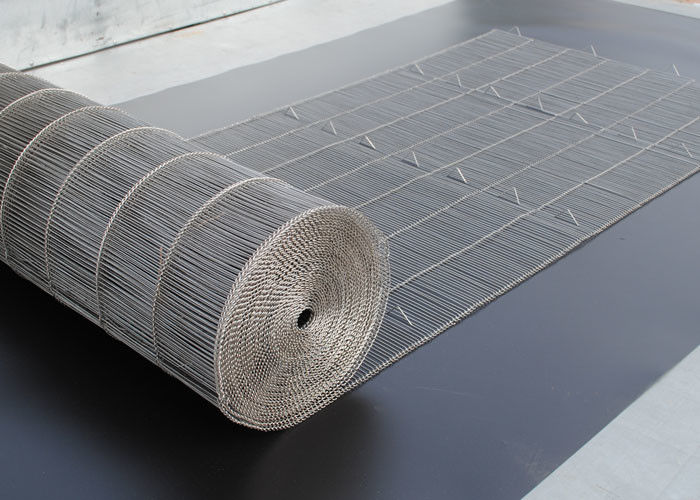

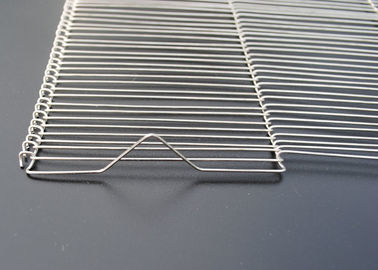

304 Stainless Steel Flat Flex Wire Mesh Conveyor Belt For Bread Industry
1. Description :
Flat Flex conveyor belts offer numerous benefits that increase productivity, help contain costs and improve your overall product quality, including:
• The largest proportion of open-mesh area available- up to 86%
• Easy to clean, clean-in-place design
• No-slip, positive drive
• Very low belt mass
• Smallest diameter end rolls and drive rolls
• Positive driven for accurate tracking
• FDA Approved
2. Specification :
| Material | iron steel Q195 or 235, stainless steel 201, 304, 316L, 430 |
| Pitch(mm) | 5 8 7 7 10 13 15 15 18 20 20 20 19.5 |
| Wire diameter(mm) | 1.0 1.0 1.2 1.4 1.6 1.8 2.0 2.3 2.6 3.0 3.2 3.5 5.0 |
| Min span(mm) | 30 30 30 30 30 40 40 50 60 100 130 150 300 |
| Edge loop | single loop, double loop, c cure edge |
| Overall width(mm) | 30-4200mm |
3. Applications :
Widely used in Food, Baking, Battering, Breading, Cooling, Enrobing, Freezing, Frying, Washing, Frying, etc
