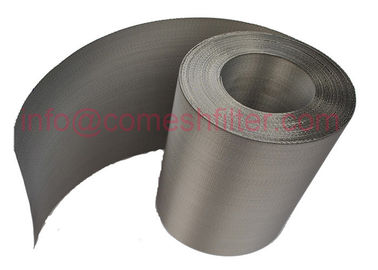

132 x 32 Mesh T-316L 304 Stainless Steel Wire Mesh Micronic Filter Cloth

132 x 32 Mesh T-316L Stainless Steel Micronic Filter Cloth

With smooth surface, high hardness, working continuously, no deformation, high temperature resistance, corrosion resistance, flexible working with excellent filtering performance.

larger count of wires is found in the warp and the smaller count in the shute, thus reversing the method used in plain dutch weave,
twilled dutch weaves

Appplications of ss 304 or 201 extruder screen wire mesh for plastic recycle :

mainly used in filtering of plastic wire drawing bench,wire drawing machine,coating machine,such as plastic bags,plastic film and so on.

Reverse Dutch weave wire cloth is woven using two sizes of wire. Smaller wires are used in the warp direction and are woven with a larger shute wire. The smaller wires are woven tightly together, providing a tight mesh for filtering. The larger wire provides strength to the mesh. The primary uses of this wire cloth are filtration and separation of liquid and slurry products.

Specifications of ss 304 or 201 extruder screen wire mesh for plastic recycle:

Features of ss 304 or 201 extruder screen wire mesh for plastic recycle:

Resistant to abrasion
Durability
Sturdiness
Plain/Twill weave stainless steel wire mesh has good performance at acid-resisting, alkali-resisting and anticorrosion.
High strength, good tensiontoughness and abrasion performance, durable in use.

reverse Dutch Twilled Weave mesh:
each weft wire goes through two warp wires alternatively.
The Reverse Dutch Twill Weave allows to use wires
with larger diameters and gives better stability and
strenght to the weft.

reverse Plain dutch weave mesh
it has more and finer warp wires and fewer and heavier weft wires, giving high stability and good performance

sample  and packing:

samples extruder screen mesh can be supplied for testing.
