| Product Name: | 40mm Width 16 Mesh Copper Wrapped Edge Drug Screen Wire Mesh | Material: | Stainless Steel,copper |
|---|---|---|---|
| Mesh Count: | 2 Mesh To 30 Mesh | Wire Diameter: | 0.2mm - 0.5mm |
| Width: | 0.02m - 0.6m | Length / Roll: | Usually 30m, Or Customized |
| Weave Style: | Plain,twill | Application: | Screening, Filtering, Retention, Granule Making Etc |
| High Light: | crimped wire mesh,stainless steel mesh cloth |
||

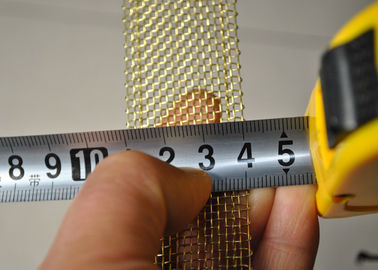

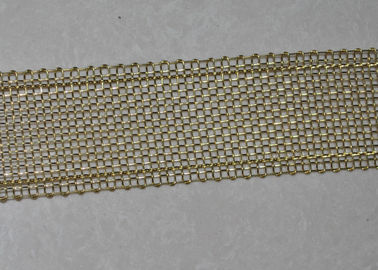

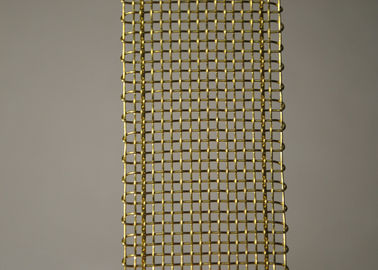

40mm Width 16 Mesh Copper Wrapped Edge Drug Screen Wire Mesh
1. Specification :
| Material | stainless steel wire, high carbon steel wire, low carbon steel wire, medium carbon steel wire, nylon, polyester monofilament woven. |
| Weave | plain weave, twill weave |
| Mesh number | 8-30 mesh |
| Width | the narrowest can produce 2 cm bright edge, 3 cm 4 cm 5cm 6 cm ----, 41.5cm, 44 etc |
2. Advantages :
wear resistance, high strength, long service life, models and silk number and mesh number.
3. Application :
used for screening, filtering, retention, granule making etc.
4. Description :
The mesh is made of brass wire, phosphor copper wire, galvanized iron wire and stainless steel wire. Wire thickness of 0.4 ~ 0.025 mm specifications. Plain weave or twill mat weave is mostly used. With clear and correct holes, smooth surface, high temperature resistance and abrasion resistance, the stainless steel mesh is also corrosion resistant. Therefore, the drug screen is mostly used for powder screening and oil filtration. Cement screening ceramic pharmaceutical, etc., mesh hole surface is smooth, conducive to filtering. The fabric structure can use whole Hank yarn, square and plain, etc., the specification has 19 ~ 104 holes/cm. It is mainly used for printing silk screen, integrated circuit printed circuit board making, also can be used for screening the picture tube phosphor powder and magnetic tape powder and other fine particles. The coarse nylon palm silk is used as the raw material for the screen mesh, with the diameter of 0.55 ~ 0.1 mm, and the fabric is mostly plain mat structure, which is used for ore dressing, filter pulp, conveyor belt and so on. Synthetic fiber screen with no rust, corrosion resistance and other characteristics, can replace part of the screen.
5. Details :
