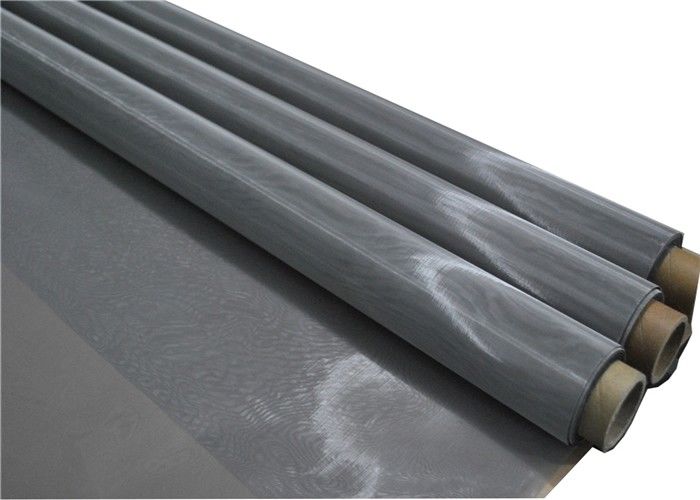

Plain Woven 400 Mesh Stainless Steel Wire Mesh For Screen Printing

Plain Woven 400 Mesh Stainless Steel Wire Mesh For Screen Printing
Plain Woven 400 Mesh Stainless Steel Wire Mesh For Screen Printing Plain Woven 400 Mesh Stainless Steel Wire Mesh For Screen Printing Plain Woven 400 Mesh Stainless Steel Wire Mesh For Screen Printing Plain Woven 400 Mesh Stainless Steel Wire Mesh For Screen Printing

Large Image :  Plain Woven 400 Mesh Stainless Steel Wire Mesh For Screen Printing

Product Details:
Place of Origin: Hebei,China
Brand Name: PFM
Certification: SGS
Model Number: PFM-L
Payment & Shipping Terms:
Minimum Order Quantity: 10meters
Price: Negotiable
Packaging Details: Waterproof paper inside ,and air bubble film outside,then put them into plywood case.
Delivery Time: 2-7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,
Supply Ability: 3000 meters per week
Detailed Product Description
Features: High Tension And Good Heat-melting Resistance Product Name: Plain Woven 400 Mesh Stainless Steel Wire Mesh For Screen Printing
Material: SUS 304N (imported Raw Material) Length: 30m/roll
Keyword: Screen Printing Mesh Weave Style: Plain Woven
High Light:

stainless steel mesh screen

,

crimped wire mesh

Plain Woven 400 Mesh Stainless Steel Wire Mesh For Screen Printing



Description



Material: SUS 304N, 304HPS, 316L

Weave Type: Plain woven

Width: 1.2m, 1.22m, or customized width

Length: 30m/roll

Features: High tension; super precision; low elongation; high flexibility; high corrosion resistance.

Sample: Free sample available



Stainless steel screen printing mesh is widely used in Solar Battery, Liquid Crystal Display and Chip Electrical Components.


The process of calender can change the thickness of the stainless steel wire mesh. It shows the capabilities in improving uniformity of film thickness and reducing printing thickness.



Features



  • High tension: higher tension than the common polyester mesh, and the property is stable.
  • Low elongation: it has very low elongation under high tension.
  • Non- electrostatic: ensures the safety of printing.
  • Good heat-melting resistance: making it suitable for heat-melting ink.
  • Good solvent resistance: also ensures the safety of printing.

Application



It's widely used in the printing of Chip Electrical Components, Solar Battery, FPD, LCD, glass, PCB and so on.



Production process



Plain Woven 400 Mesh Stainless Steel Wire Mesh For Screen Printing 0 1.Testing wire diameter Plain Woven 400 Mesh Stainless Steel Wire Mesh For Screen Printing 1 2.Automatic warp beaming machine
Plain Woven 400 Mesh Stainless Steel Wire Mesh For Screen Printing 2 3.Making the mesh Plain Woven 400 Mesh Stainless Steel Wire Mesh For Screen Printing 3 4.Cleaning the mesh
Plain Woven 400 Mesh Stainless Steel Wire Mesh For Screen Printing 4  5.Calendering making screen thinner and obtaning filat Plain Woven 400 Mesh Stainless Steel Wire Mesh For Screen Printing 5 6.Package: Waterproof paper inside,and air bubble film outside,then put them into plywood case, or according to your requirements.



Sample

Free sample is available, but the freight maybe kindly on your side.



Plain Woven 400 Mesh Stainless Steel Wire Mesh For Screen Printing 6Plain Woven 400 Mesh Stainless Steel Wire Mesh For Screen Printing 7
