Fine Monofilament Polyester Printing Mesh With High Strengh And Tension

China Fine Monofilament  Polyester Printing Mesh With High Strengh And Tension supplier
Fine Monofilament  Polyester Printing Mesh With High Strengh And Tension supplier Fine Monofilament  Polyester Printing Mesh With High Strengh And Tension supplier Fine Monofilament  Polyester Printing Mesh With High Strengh And Tension supplier Fine Monofilament  Polyester Printing Mesh With High Strengh And Tension supplier

Large Image :  Fine Monofilament Polyester Printing Mesh With High Strengh And Tension

Product Details:

Place of Origin: Hebei China
Brand Name: PFM
Certification: FDA
Model Number: PFM-Lyd

Payment & Shipping Terms:

Minimum Order Quantity: 1 sqm
Price: Negotiable
Packaging Details: Plastic bag inside on one roll and carton case outside,or cut into small pieces and plastic bag.
Delivery Time: 3-10days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram,Trade assurance,Paypal
Supply Ability: 3000meters per week
Contact Now
Detailed Product Description
Mesh: 15-460mesh/inch Length: 30-70m/roll Or Cut Into Pieces.
Width: 1.15-3.6m Delivery: 5-10days
Color: Yellow,white,black Weave: Plain Weave Or Twill Weave
Material: 100%polyester

Fine Monofilament Polyester Printing Mesh With High Strengh And Tension









1.Description Of Polyester Printing Mesh



Specification Brief 1.Mesh count/inch:15-460
Width:39"-145"
Color:white,yellow,black
Packing 1.Sample order less than 50meters packed folded then plastic bag and carton case outside
2.Regular order packed in roll,then carton case or plywood case outside
Delivery Delivery Time 1.Sample order in 3days;
2.Regular orders in 3-5days
Delivery ways 1.Sample orders use express company,such as TNT,EMS,DHL,etc
2.Regular orders by air or by sea
Payment T/T,L/C,Paypal,Money Gram,Western Union,Escrow,etc.



2.Feature advantage Of Polyester Printing Mesh



  • High tension: with high breaking strength, screen tension values are significantly higher than normal screen.
  • High stability: mesh has good stability and tiny elongation;At the same time, the tension in the printing process is to maintain good stability, ensure the quality of printing and the service life of web version.
  • High resistance to wear: adopt high quality fiber raw materials, through special processing, silk screen surface can withstand the high pressure frequency friction, more make the silk screen has high security, and resistance to seal number.
  • Specifications: textile way with plain;white mesh.





3.Application Of Polyester Printing Mesh



  • CD/DVD printing
  • ceramicprinting
  • graphics printing
  • packaging and printing
  • electronic printing
  • glass printing
  • the solar energy board printing
  • fabic printing,etc.

4.Specification Of Polyester Printing Mesh



COUNT (INCH) COUNT (CM) DIAMETER (UM) OPEPING (UM) OPEN AREA(%) THICKNESS(UM) VOLUME (CM³/CM²) MAX TEN SION(N/CM)
15 6 400 1270 64 720 460 30-60
18 7 350 1078 64 640 410 30-60
20 8 300 950 58 550 319 30-60
25 10 250 750 56 620 347 30-60
30 12 250 583 49 450 220 30-60
30 12 150 683 67 300 201 30-60
40 16 200 425 46 400 184 30-60
50 20 80 420 71 120 85 35-37
50 20 150 350 49 260 127 30-60
60 24 100 316 58 136 78 35-40
60 24 120 297 50 240 120 35-60
73 29 120 225 43 240 103 35-60
80 32 64 248 63 95 59 30-34
80 32 100 212 46 200 92 35-40
85 34 100 195 44 221 97 35-40
90 36 100 178 41 216 88 35-40
100 39 55 200 61 88 53 25-30
100 39 80 176 47 150 70 35-37
110 43 80 153 43 130 56 35-37
120 47 55 158 55 88 48 25-30
120 47 71 142 44 135 59 30-34
135 53 55 133 50 86 43 25-30
135 53 64 125 44 100 44 26-31
150 59 64 105 38 100 38 26-31
160 64 55 101 42 98 41 25-30
160 64 64 92 35 120 42 30-34
180 72 48 91 43 78 66 27-29
180 72 55 84 37 100 37 25-30
200 80 48 77 38 74 28 27-29
195 77 55 75 33 105 34 25-30
230 90 48 63 33 85 28 27-29
250 100 40 60 36 70 25 20-24
280 110 40 51 31 85 26 20-24
305 120 40 43 27 68 18 20-24
355 140 34 37 27 58 15 22-24
380 150 31 36 29 46 13 21-23
420 165 31 30 24 46 11 21-23
460 180 27 28 26 56 14 20-22

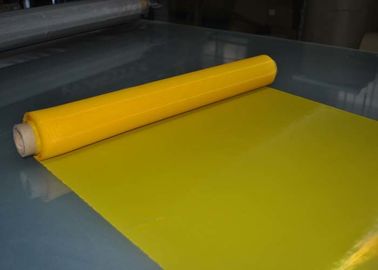

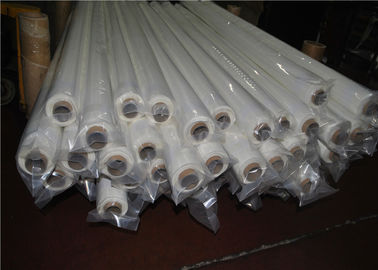

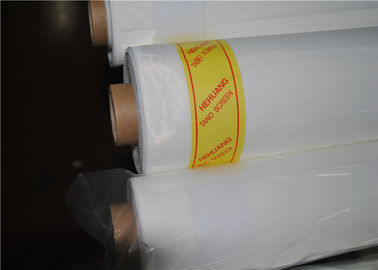

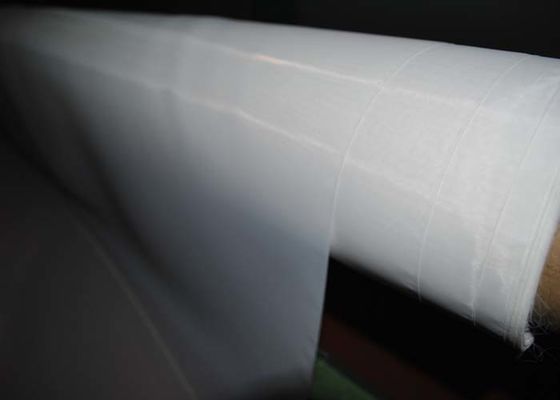

5.Photos Of Polyester Printing Mesh:



Fine Monofilament  Polyester Printing Mesh With High Strengh And Tension



Fine Monofilament  Polyester Printing Mesh With High Strengh And Tension

.Fine Monofilament  Polyester Printing Mesh With High Strengh And Tension
