Tension Stable Polyester Screen Printing Mesh Used For Sign Printing

China Tension Stable Polyester Screen Printing Mesh Used For Sign Printing supplier
Tension Stable Polyester Screen Printing Mesh Used For Sign Printing supplier Tension Stable Polyester Screen Printing Mesh Used For Sign Printing supplier Tension Stable Polyester Screen Printing Mesh Used For Sign Printing supplier

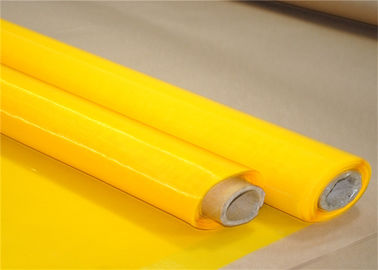

Large Image :  Tension Stable Polyester Screen Printing Mesh Used For Sign Printing

Product Details:

Place of Origin: Hebei,China
Brand Name: PFM
Certification: FDA
Model Number: PFM-Lis

Payment & Shipping Terms:

Minimum Order Quantity: 1 meter
Price: Negotiable
Packaging Details: plastic bag inside, carton case outside,5-10rolls in one carton
Delivery Time: 5-10days
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram,Trade assurance,Paypal
Supply Ability: 3000meters per week
Contact Now
Detailed Product Description
Product Name: Polyester Screen Printing Mesh Feature: Tensile Stable
Technical: Plain Weave Specification: 18-420mesh/inch
Shipping Port: Tianjin Color: Yellow

                  Tension Stable Polyester Screen Printing Mesh Used For Sign Printing





Description of  polyester screen printing mesh



With high quality domestic and imported raw material,advanced weaving looms and test instruments.we can supply the first class polyester and nylon screens.



Specification 6T-165T
mesh count per inch 18-420Mesh/inch
thread diameter 25-1068micron
color white/yellow/balck
Length 30m/roll or according to your request.
width 115cm,127cm,136cm,145cm,157cm,165cm,188cm,220cm and MAX width can be 3.65cm.



Features of polyester screen printing mesh:

  • Polyester mesh yarn with solvent resistance, high temperature, water resistance, chemical resistance and so on
  • Polyester yarn in the external pressure by the larger, its physical properties and stability, small stretch
  • Polyester wire mesh in addition to the advantages of nylon mesh, but also for printing the size of the requirements of high precision printed circuit boards
  • When the external pressure is high, the physical properties are stable and the stretchability is small.

Application



  1. Automotive Glass Printing.The black mask for the front,side and back
  2. Glass containers printing,Perfumes,cosmetics and drink bottles are decorated with screen printing methods.
  3. Printing mesh for  ceramics. Polyester screen printing can print the chanllenging intense color and ornate decor on the ceramics,so it is widely used in the decoration of dishes,tiles,earthenware or fine china,
  4. Printing mesh for textile.Polyester screen printing can transfer thick ink deposits and creat special effects to make itto be optimal process to print high quality commercial garment,
  5. Printing mesh for CDs/DVDs.Many superiorities of ink transparency,ink briliance,various decorative choice are offered by polyester screen printing,and the most important is the fast production cycle time and unaffected disc performance,So screen printing is the perferred printing process for CDs and DVD decoration,
  6. Printing mesh for Printed circuit boards.Polyester screen printing is the fastest and most economical method to print printed circuit boards solder masks,etching resist,legends and single or multi-layers.



Specification of polyester screen printing mesh



COUNT (INCH) COUNT (CM) DIAMETER (UM) OPEPING (UM) OPEN AREA(%) THICKNESS(UM) VOLUME (CM³/CM²) MAX TEN SION(N/CM)
15 6 400 1270 64 720 460 30-60
18 7 350 1078 64 640 410 30-60
20 8 300 950 58 550 319 30-60
25 10 250 750 56 620 347 30-60
30 12 250 583 49 450 220 30-60
30 12 150 683 67 300 201 30-60
40 16 200 425 46 400 184 30-60
50 20 80 420 71 120 85 35-37
50 20 150 350 49 260 127 30-60
60 24 100 316 58 136 78 35-40
60 24 120 297 50 240 120 35-60
73 29 120 225 43 240 103 35-60
80 32 64 248 63 95 59 30-34
80 32 100 212 46 200 92 35-40
85 34 100 195 44 221 97 35-40
90 36 100 178 41 216 88 35-40
100 39 55 200 61 88 53 25-30
100 39 80 176 47 150 70 35-37
110 43 80 153 43 130 56 35-37
120 47 55 158 55 88 48 25-30
120 48 70 138 44 135 59 30-34
135 53 55 133 50 86 43 25-30
135 54 64 121 44 100 44 26-31
150 61 64 100 38 100 38 26-31
160 64 55 101 42 98 41 25-30
160 64 64 92 35 120 42 30-34
180 72 48 91 43 78 66 27-29
180 72 55 84 37 100 37 25-30
200 80 48 77 38 74 28 27-29
195 77 55 75 33 105 34 25-30
230 90 48 63 33 85 28 27-29
250 100 40 60 36 70 25 20-24
280 110 40 51 31 85 26 20-24
305 120 40 43 27 68 18 20-24
355 140 34 37 27 58 15 22-24
380 150 31 36 29 46 13 21-23
420 165 31 30 24 46 11 21-23
460 180 27 28 26 56 14 20-22



Packing of polyester screen printing mesh:

Plastic bag inside on one roll, and carton box outside.

Or cut into small pieces and plastic bag.



MOQ and sample of polyester screen printing mesh:



MOQ:There is no MOQ

The samples is free.
